Honda HR-V: Rear Stabilizer Bushing Removal and Installation

Honda HR-V (2015-2021) Service Manual / Suspension System / Suspension System - Service Information / Rear Stabilizer Bushing Removal and Installation

Removal

1. Vehicle - Lift

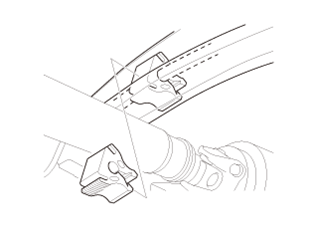

2. Stabilizer Bushing - Remove

Suspension System - Service Information

Installation

1. Stabilizer Bushing - Install

Suspension System - Service Information

  1. Apply silicone spray (P/N 08209-0001) to the new stabilizer bushing. This will ease installation of the bushing into the stabilizer and the axle beam

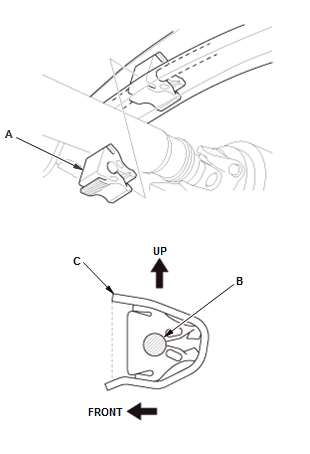

  2. Install the stabilizer bushing (A) into the axle beam by aligning the center of the stabilizer bushing to the center of the axle beam.

    NOTE :

    • Make sure the stabilizer bushing is installed into the stabilizer (B).
    • Make sure the stabilizer bushing is not protruding out the end of the axle beam (C).
