Honda HR-V: Transmission Housing Transmission Fluid Pump Drive Sprocket Bearing Replacement (CVT)

Honda HR-V (2015-2021) Service Manual / Transmission / Continuously Variable Transmission (CVT) - Service Information / Transmission Housing Transmission Fluid Pump Drive Sprocket Bearing Replacement (CVT)

Special Tools Required

Snap Ring Pliers 07LGC-0010100

Continuously Variable Transmission (CVT) - Service Information

Bearing Driver Attachment, 52 x 55 mm 07746-0010400

Continuously Variable Transmission (CVT) - Service Information

Driver Handle, 15 x 135L 07749-0010000

Continuously Variable Transmission (CVT) - Service Information

Replacement

NOTE: Apply a light coat of clean transmission fluid on all parts before installation.

1. Transmission Fluid Pump Drive Sprocket Bearing - Remove

Continuously Variable Transmission (CVT) - Service Information

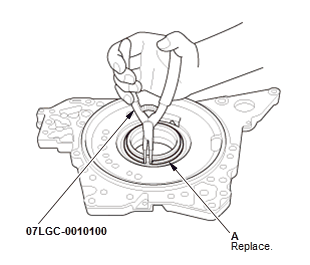

  1. Remove the snap ring (A) using the snap ring pliers.

Continuously Variable Transmission (CVT) - Service Information

  1. Remove the transmission fluid pump drive sprocket (A) using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment.

Continuously Variable Transmission (CVT) - Service Information

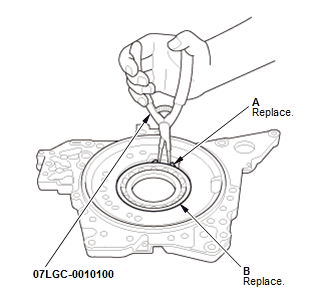

  1. While expanding the snap ring (A) using the snap ring pliers, remove the transmission fluid pump drive sprocket bearing (B).
  2. Remove the snap ring.

2. Transmission Fluid Pump Drive Sprocket Bearing - Install

Continuously Variable Transmission (CVT) - Service Information

  1. Install a new snap ring (A).

    NOTE:

    • Be careful not to deform the snap ring by opening/closing it excessively.
    • Make sure the snap ring is firmly installed in the groove.
  2. While expanding the snap ring using the snap ring pliers, install the transmission fluid pump drive sprocket bearing (B) as shown.

    NOTE: Make sure the snap ring is firmly installed in the groove.

Continuously Variable Transmission (CVT) - Service Information

  1. Install the transmission fluid pump drive sprocket (A) until it bottoms using the 15 x 135L driver handle and the 52 x 55 mm bearing driver attachment.

Continuously Variable Transmission (CVT) - Service Information

  1. Install a new snap ring (A) using the snap ring pliers.

    NOTE:

    • Be careful not to deform the snap ring by opening/closing it excessively.
    • Make sure the snap ring is firmly installed in the groove.
