* PLEASE READ THIS FIRST *
NOTE: This article is generic in nature and all information does not apply to all vehicles. For vehicle specific information, see the appropriate articles in the ENGINE PERFORMANCE category.
ENGINE PERFORMANCE
NOTE: This article is generic in nature and all information does not apply to all vehicles. For vehicle specific information, see the appropriate articles in the ENGINE PERFORMANCE category.

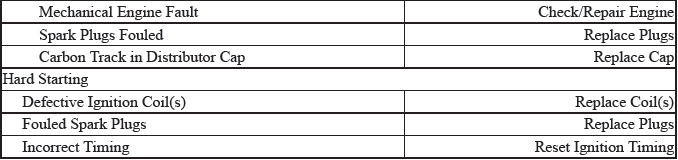

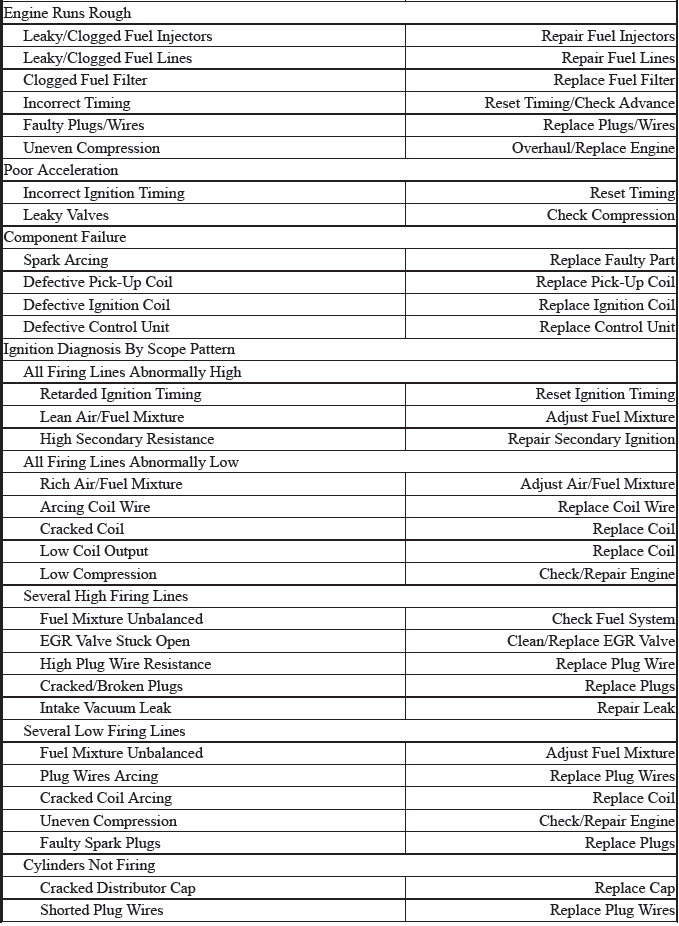

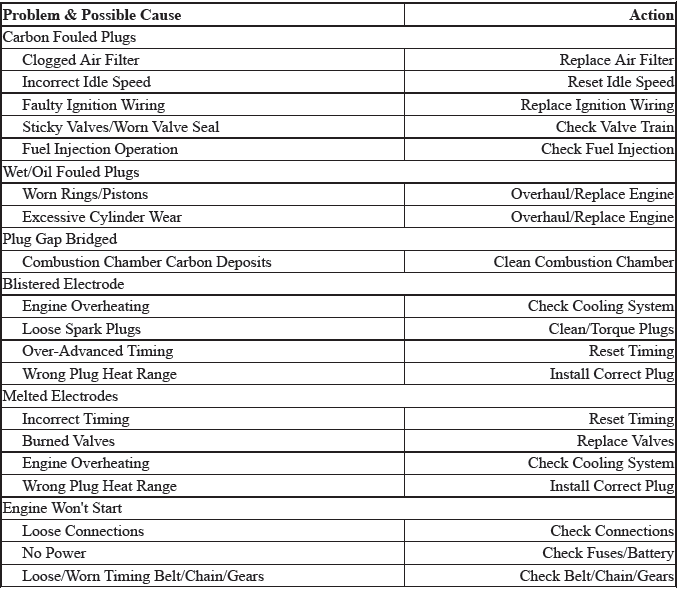

TUNE-UP TROUBLE SHOOTING
NOTE: This article is generic in nature and all information does not apply to all vehicles. For vehicle specific information, see the appropriate articles in the ENGINE PERFORMANCE category.

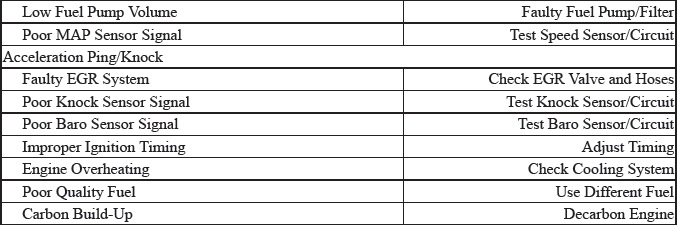

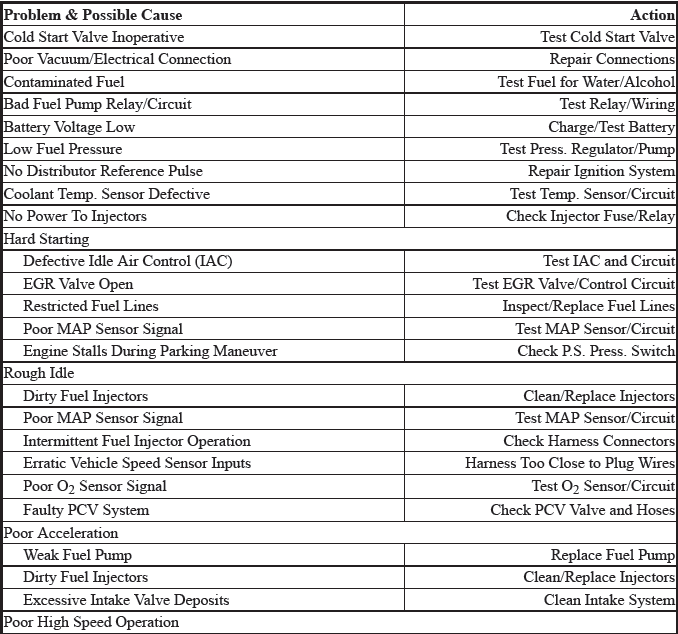

FUEL INJECTION TROUBLE SHOOTING
