Honda HR-V: Using HFL

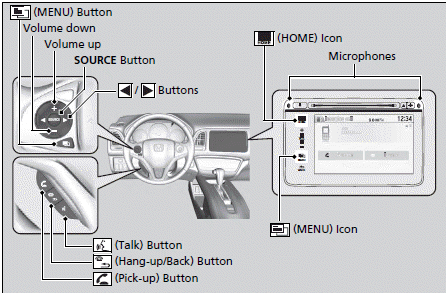

â– HFL Buttons
.png)
(Pick-up) button: Press to go
directly to the Phone screen, or to answer an
incoming call.
(Hang-up/Back) button: Press
to end a call, go back to the previous
command, or to cancel a command.
(Talk) button: Press to call a
number with a stored voice tag, a phonebook,
name, or a number.
button: Press to display Speed
Dial, Call History, or Redial on the Phone
screen.
button: Press to select an
item displayed on the Phone screen.
SOURCE button: Press to call a number listed in the selected item on the Phone screen.
To go to the Phone menu screen:
1. Select HOME.
2. Select Phone to switch the display to the Phone screen.
3. Select MENU.

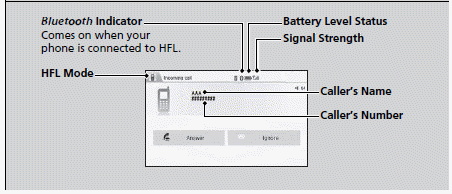

â– HFL Status Display
The audio/information screen notifies you when there is an incoming call.
.png)
The information that appears on the audio/ information screen varies between phone models.
You can change the system language to English, French, or Spanish.
â– Limitations for Manual Operation
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phone book names, or numbers can be called using voice commands while the vehicle is in motion.
