Honda HR-V: Auxiliary Jack Assembly Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Service Information / Auxiliary Jack Assembly Removal and Installation

Removal & Installation

1. Center Console Switch Panel - Remove

Audio Visual Systems - Service Information

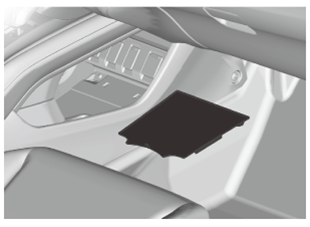

  1. Remove the console front mat.

Audio Visual Systems - Service Information

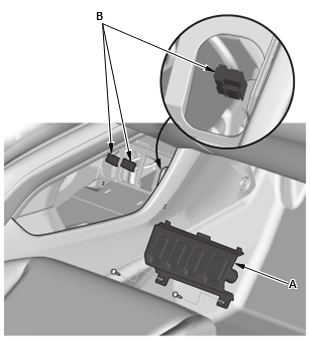

  1. Pull out the center console switch panel (A)
  2. Disconnect the connectors (B)
  3. Remove the center console switch panel.

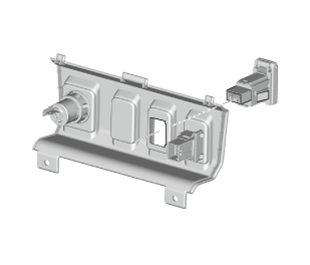

2. Auxiliary Jack Assembly - Remove

Audio Visual Systems - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

GPS ANTENNA REMOVAL AND INSTALLATION

Removal & Installation

1. Audio Unit Assembly (Without Navigation) - Remove - Refer to: Audio Unit Removal and Installation (Display Audio Type (7-inch Screen), or Audio Unit Removal and Installation (Color Audio Type (5-inch Screen) )

2. Audio-Navigation Unit Assembly (With Navigation) - Remove

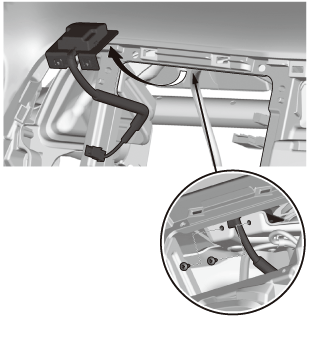

3. GPS Antenna - Remove

Audio Visual Systems - Service Information

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
