REMOVAL & INSTALLATION

12 VOLT BATTERY SENSOR REMOVAL AND INSTALLATION

Removal

1. 12 Volt Battery Sensor - Remove

Battery Management System - Service Information

  1. Make sure the vehicle to the OFF (LOCK) mode.
  2. Disconnect the connector (A).
  3. Remove the 12 volt battery sensor (B) from the 12 volt battery.

    NOTE: To protect the 12 volt battery sensor connector from damage, do not hold it when removing the terminal.

  4. Disconnect the terminal (C) from the 12 volt battery sensor (B).

Installation

1. 12 Volt Battery Sensor - Install

Battery Management System - Service Information

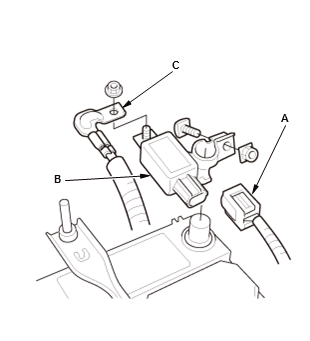

Fig. 1: 12 Volt Battery Sensor With Torque Specifications

  1. Install the terminal (A) on the 12 volt battery sensor (B).
  2. Install the 12 volt battery sensor (B) to the 12 volt battery.

    NOTE:

    • Make sure the areas between the terminal and the 12 volt battery sensor is clean.
    • To protect the connector from damage, do not hold it when removing the terminal.
  3. Connect the connector (C).
  4. Apply multipurpose grease to the terminals to prevent corrosion.
