Honda HR-V: Rear Door Latch Removal and Installation
Removal & Installation
1. Rear Door Panel - Remove
2. Rear Door Plastic Cover - Remove
.png)

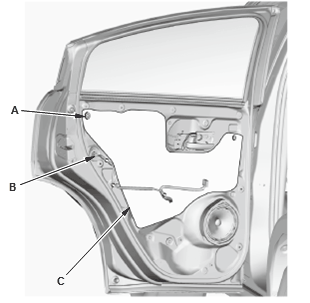

- Remove the plug cap (A)
- Disconnect the connector (B)
- Remove the rear door plastic cover (C) as needed.
NOTE : If the plastic
cover is damaged or torn, replace it with a new one.
3. Rear Door Inner Handle - Remove
.png)

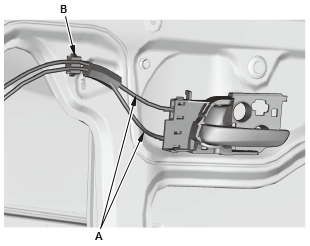

- Remove the cables (A) from the clip (B).
.png)

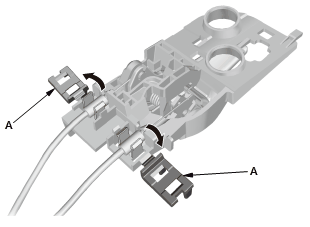

- Open the rear door inner handle lids (A).
.png)

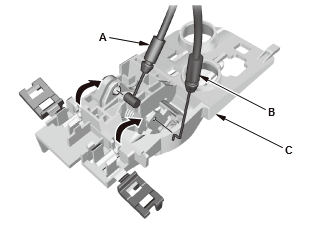

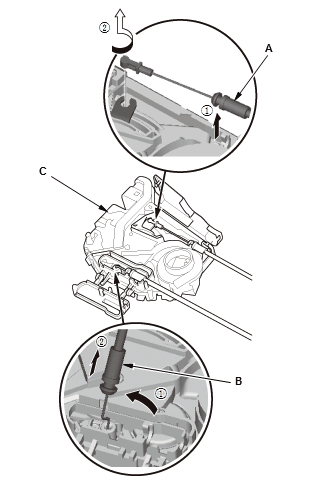

- Disconnect the inner handle cable (A) and the latch cable (B) from
the rear door inner handle (C).
4. Rear Door Latch - Remove
.png)

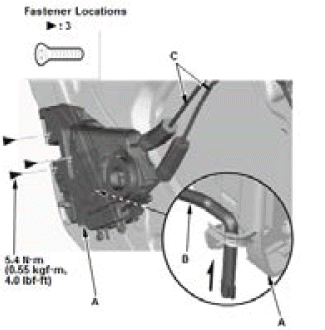

- Remove the bolts with a TORX T30 bit
- Pull the rear door latch (A) downward to disconnect the outer handle rod
(B),
and then remove the rear door latch.
NOTE : Take care not to bend the cables (C).
.png)
-

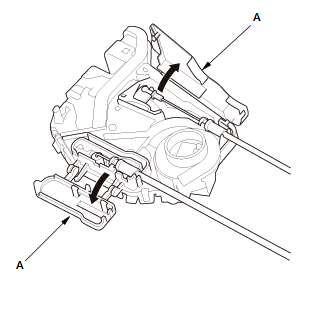

Open the latch protector lids (A).
.png)
- Disconnect the latch cable (A) and the inner handle cable (B) from
the rear door latch (C).
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE : If the cable holders of the inner handle
cable and the latch cable are damaged or stress-whitened, replace them with
new ones.
