Honda HR-V: Blower Motor Removal and Installation
Removal & Installation
1. Passenger's Dashboard Undercover - Remove
2. Blower Motor - Remove

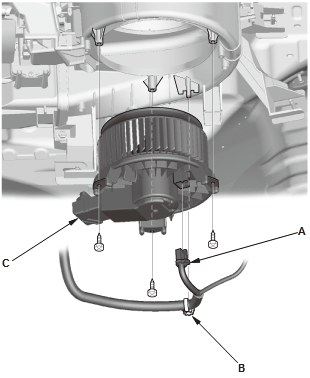

![HVAC System - Service Information](images/books/1097/index 20(15).png)
- Disconnect the connector (A)
- Remove the harness clip (B)
- Remove the blower motor (C).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE: Make sure that there is no air leakage.
BLOWER POWER TRANSISTOR REMOVAL AND INSTALLATION
Removal & Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component Location Index (KA/KC) and the precautions and procedures
before doing repairs or service.
1. Glove Box - Remove
2. Blower Power Transistor - Remove

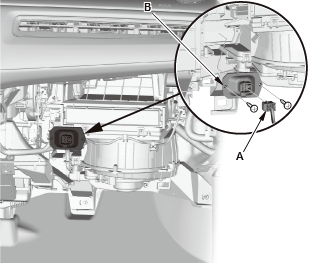

![HVAC System - Service Information](images/books/1097/index 21(14).png)
- Disconnect the connector (A)
- Remove the blower power transistor (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
BLOWER RESISTOR REMOVAL AND INSTALLATION
Removal & Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC) and the precautions and procedures before doing repairs or
service.
1. Glove Box - Remove
2. Blower Resistor - Remove
![HVAC System - Service Information](images/books/1097/index 22(16).png)
- Disconnect the connector (A)
- Remove the blower resistor (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
BLOWER UNIT REMOVAL AND INSTALLATION
Removal & Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC) and the precautions and procedures before doing repairs or
service.
1. Glove Box - Remove
2. Blower Unit - Remove

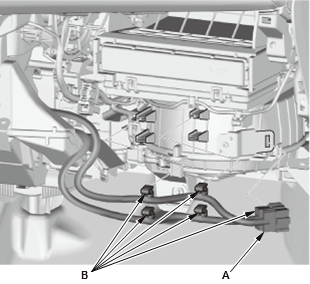

![HVAC System - Service Information](images/books/1097/index 23(15).png)
- Disconnect the connectors (A)
- Remove the harness clips (B).
3. Disconnect the connectors (A).

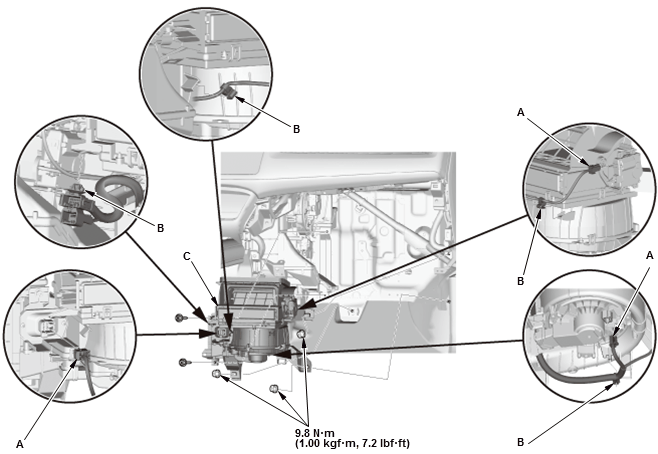

![HVAC System - Service Information](images/books/1097/index 24(15).png)
- Remove the harness clips (B)
- Remove the blower unit (C).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
