Honda HR-V: Check

DRIVER'S SEAT POSITION SENSOR OPERATION CHECK

Procedure

NOTE: Check the driver's seat position sensor operation after the driver's seat position sensor replacement.

1. HDS - Connect

2. Driver's Seat Position Sensor - Operation Check

Supplemental Restraint System - Testing & Troubleshooting

  1. Make sure the driver's seat is in the full forward position
  2. From SRS in the HDS Main Menu, select SRS, then Data List

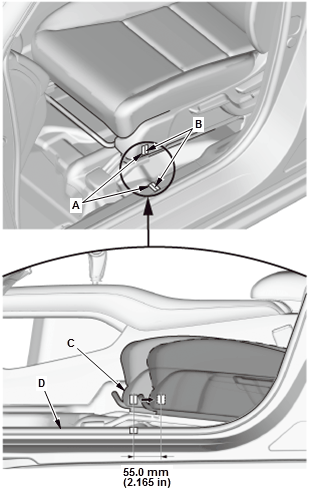

  3. Using two pieces of tape (A), make alignment marks (B) on the recline cover (C) and the front door sill trim (D) as shown. The driver's seat position sensor should read NEAR on the HDS
  4. Move the seat back in small increments (about 5 mm, (0.20 in) ) until the driver's seat position sensor reads NOT NEAR on the HDS. The seat should be about 55.0 mm (2.165 in) from the front.

    NOTE: It takes a few seconds for the HDS to change display, so wait for about 5 seconds between each movement. If the driver's seat position sensor data does not work as described above, check the driver's seat position sensor for damage, and replace parts as needed

  5. Turn the vehicle to the OFF (LOCK) mode.

FRONT PASSENGER'S WEIGHT SENSOR OUTPUT CHECK AFTER A VEHICLE COLLISION

Procedure

NOTE: Check the front passenger's weight sensor output after a vehicle collision.

1. HDS - Connect

2. Front Passenger's Weight Sensor - Output Check After a Vehicle Collision

  • Make sure all the components of the front passenger's seat are correctly installed.
  • Position the front passenger's seat all the way rearward, and adjust the seat-back to the forward most position. Do not move the seat from this position until the output check is completed.
  • Make sure nothing is on the front passenger's seat, including aftermarket seat covers or mats.
  • Make sure nothing is in the front passenger's seat-back pocket.
  • Keep the windows and the moonroof closed (if equipped).
  • Make sure the vehicle is on level ground.
  • Dehumidify inside of the vehicle with A/C.
  • Do not touch the front passenger's seat during the output check.
  • Do not expose the front passenger's seat to sudden temperature changes.
  • Make sure all aftermarket devices (amplifiers, fluorescent light, air purifiers, CB or HAM radios, etc.) are turned off.

1. Drive the vehicle, accelerate to 22 mph (36 km/h), then stop on level ground

2. From SRS in the HDS Main Menu, select SWS, then Inspection. In the Inspection Menu, select AFTER A VEHICLE COLLISION. Follow the prompts until the front passenger's weight sensor output check has been completed

3. Turn the vehicle to the OFF (LOCK) mode.

FRONT PASSENGER'S WEIGHT SENSOR UNIT OPERATION CHECK

Procedure

1. After Replacing Front Passenger's Seat Component (s) - Check

NOTE: Check the front passenger's weight sensor unit operation after any of these actions:

  • Front passenger's seat component (s) replacement or removal (except front passenger's weight sensor unit).
  • Front passenger's weight sensor(s) replacement or removal.
  • After a vehicle collision.

2. HDS - Connect

3. Front Passenger's Weight Sensor Unit - Operation Check

  • Make sure all the components of the front passenger's seat are correctly installed.
  • Position the front passenger's seat all the way rearward, and adjust the seat-back to the forward most position. Do not move the seat from this position until the output check is completed.
  • Make sure nothing is on the front passenger's seat, including aftermarket seat covers or mats.
  • Make sure nothing is in the front passenger's seat-back pocket.
  • Keep the windows and the moonroof closed (if equipped).
  • Do all initialization procedures, except test-driving, in the service bay.
  • Make sure the vehicle is on level ground.
  • Dehumidify inside of the vehicle with A/C.
  • Do not touch the front passenger's seat during the operation check.
  • Do not expose the front passenger's seat to sudden temperature changes.
  • Make sure all aftermarket devices (amplifiers, fluorescent light, air purifiers, CB or HAM radios, etc.) are turned off.

1. Drive the vehicle, accelerate to 22 mph (36 km/h), then stop on level ground

2. From SRS in the HDS Main Menu, select SWS, then Inspection. In the Inspection Menu, select AFTER REPLACING FRONT PASSENGER'S SEAT COMPONENT (S). Follow the prompts until the front passenger's weight sensor unit operation check has been completed

3. Turn the vehicle to the OFF (LOCK) mode.

    READ NEXT:

     Symptom Troubleshooting

     SRS Symptom Troubleshooting - Front Passenger's Airbag ON Indicator Does Not Go OFF

    NOTE: Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct par

     SRS Symptom Troubleshooting - Front Passenger's Airbag ON/OFF Switch to OFF, But Front Passenger's Airbag OFF Indicator Does Not Come ON

    NOTE: Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct par
