Honda HR-V: Circuit Diagram

LANEWATCH CIRCUIT DIAGRAM (NA)

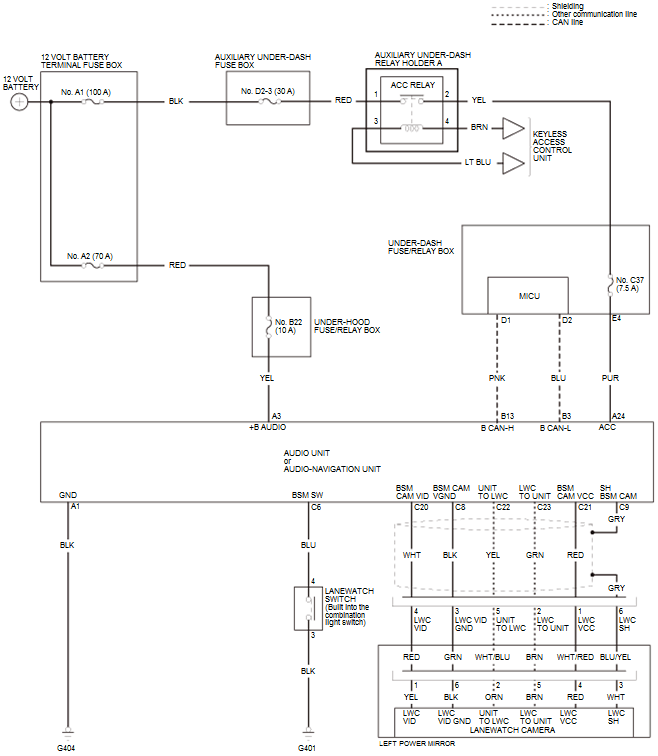

LaneWatch Circuit Diagram

Sight Support

NA

LANEWATCH ELECTRONIC WIRING DIAGRAM (NA)

File is missing

COMPONENT LOCATION INDEX

LANEWATCH COMPONENT LOCATION INDEX (NA)

LaneWatch Component Location Index

Sight Support

HOW TO INFORMATION

HOW TO TROUBLESHOOT THE LANEWATCH (NA)

How to Troubleshoot the LaneWatch

LaneWatch

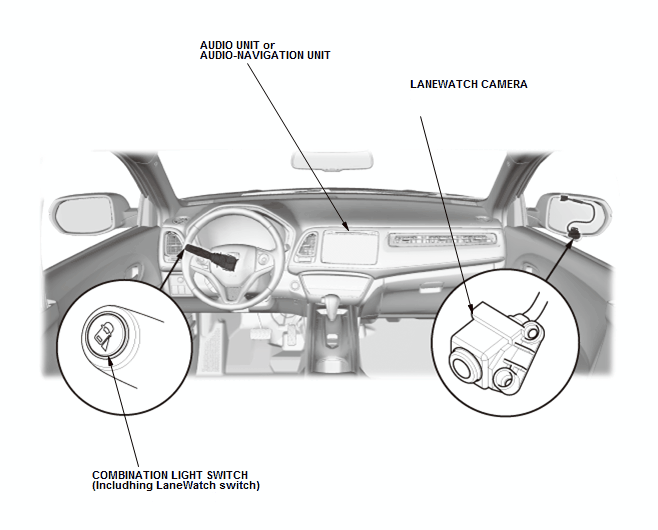

The Lanewatch displays the blind spot of the passenger's side through a Lanewatch camera. The image appears on the audio unit.

LaneWatch camera

The Lanewatch camera is built into the passenger's side door mirror which sends the image to the audio unit.

LaneWatch switch

The Lanewatch switch is built into the combination light switch.

Self-Diagnostic Function

The Lanewatch has a self-diagnostic function that you can access through the audio unit.
