Honda HR-V: Front Passenger's Power Window Switch Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Windows & Glass - Service Information / Front Passenger's Power Window Switch Removal and Installation

Removal & Installation

1. Front Passenger's Door Armrest - Remove

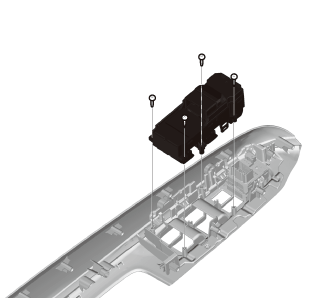

2. Front Passenger's Power Window Switch - Remove

Windows & Glass - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

POWER WINDOW MASTER SWITCH REMOVAL AND INSTALLATION

Removal & Installation

NOTE : If the switch is replaced, reset the power window control unit. If the original switch is installed, confirm that the power windows work properly.

1. Driver's Door Armrest - Remove

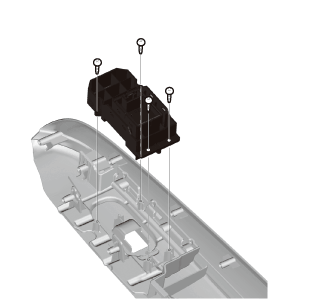

2. Power Window Master Switch - Remove

Windows & Glass - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

4. Power Window Control Unit - Reset
