Honda HR-V: Intermediate Shaft Removal and Installation

Honda HR-V (2015-2021) Service Manual / Driveline & Axles / Driveshafts - Service Information / Intermediate Shaft Removal and Installation

Removal and Installation

1. Transmission Fluid - Drain

  1. Drain the transmission fluid, then reinstall the drain plug with a new sealing washer
    • M/T
    • CVT

2. Right Driveshaft - Remove

3. Intermediate Shaft Assembly - Remove

Driveshafts - Service Information

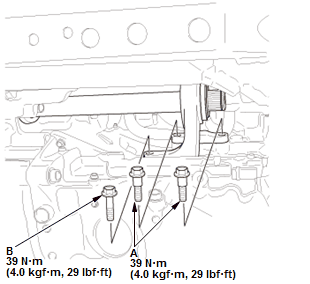

Fig. 2: Intermediate Shaft Assembly Dowel Bolts And Flange Bolt With Torque Specifications

  1. Remove the dowel bolts (A), and the flange bolt (B).

Driveshafts - Service Information

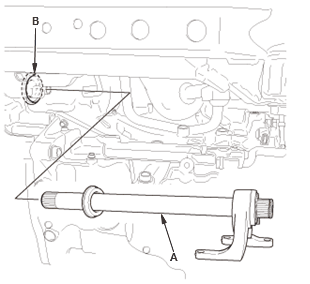

  1. Remove the intermediate shaft (A).

    NOTE:  Hold the intermediate shaft horizontal until it is clear of the differential to prevent damaging the oil seal (B).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

5. Intermediate Shaft - After Install Check

  1. Turn the wheel by hand, and make sure there is no interference between the driveshaft and surrounding parts.
  2. Check the wheel alignment, and adjust it if necessary.

6. Test Drive - Check

  1. Test-drive the vehicle.

    NOTE: Test drive the vehicle on the road, not on the lift.
