Honda HR-V: Connector Inputs and Outputs
AUDIO SYSTEM ELECTRONIC WIRING DIAGRAM
Please see appropriate system wiring diagram. ELECTRICAL SYSTEM - TESTING & TROUBLESHOOTING
AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS (COLOR AUDIO TYPE (5-INCH SCREEN) )
Connector Index
Audio Unit Connector A (24P)
Audio Unit Connector C (24P)
Audio Unit Connector E (3P)
Audio Unit Connector F (5P)

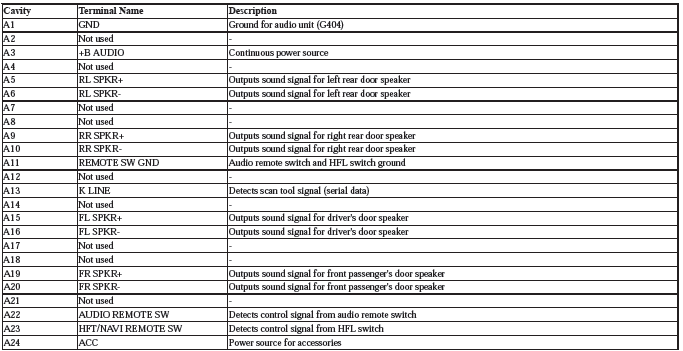

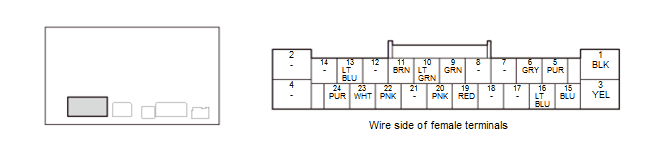

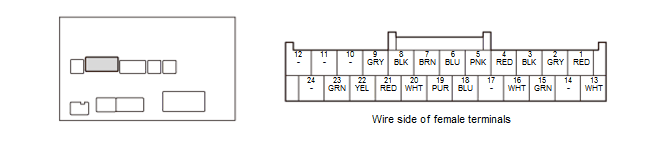

AUDIO UNIT CONNECTOR A (24P)
.png)
.png)

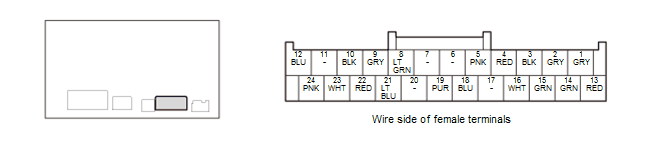

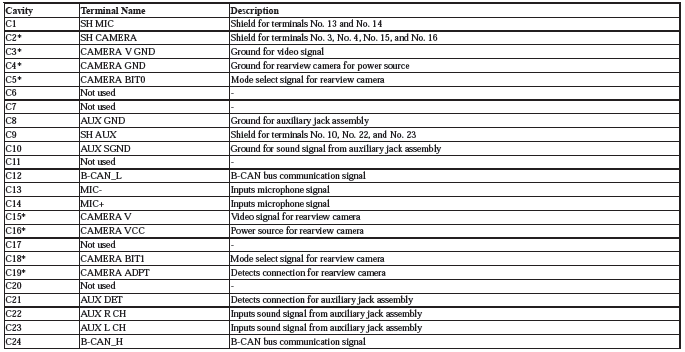

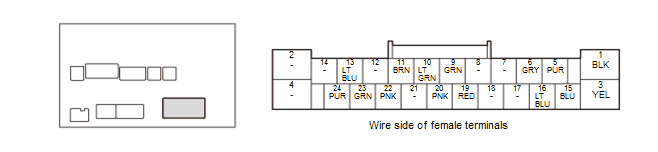

AUDIO UNIT CONNECTOR C (24P)
.png)
.png)
*: With rearview camera

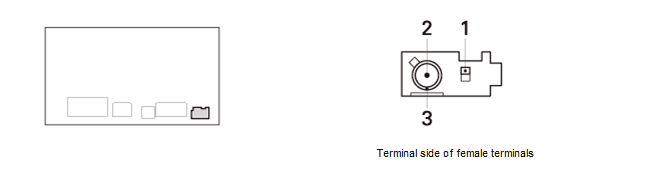

AUDIO UNIT CONNECTOR E (3P)
.png)
.png)

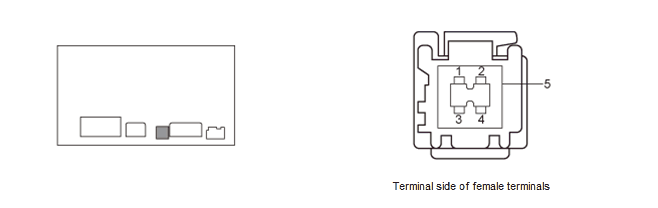

AUDIO UNIT CONNECTOR F (5P)
.png)
.png)
AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS (DISPLAY AUDIO TYPE (7-INCH SCREEN): KA/KC)
Connector Index
Audio Unit Connector A (24P)
Audio Unit Connector B (20P)
Audio Unit Connector C (24P)
Audio Unit Connector E (3P)
Audio Unit Connector F (5P)
Audio Unit Connector G (5P)
Audio Unit Connector H (20P)
Audio Unit Connector J (2P)

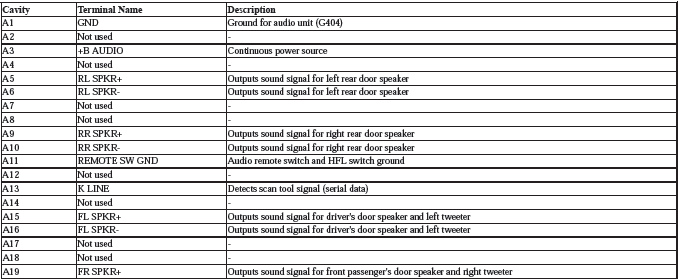

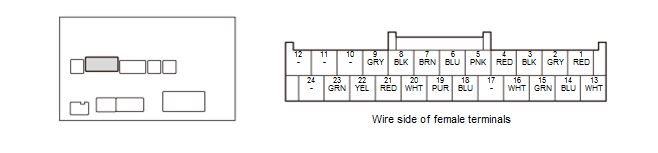

AUDIO UNIT CONNECTOR A (24P)
.png)
.png)
.png)

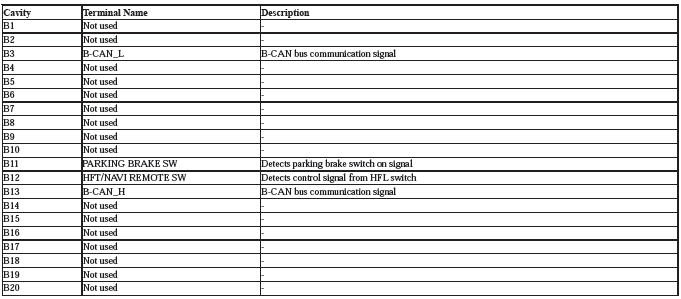

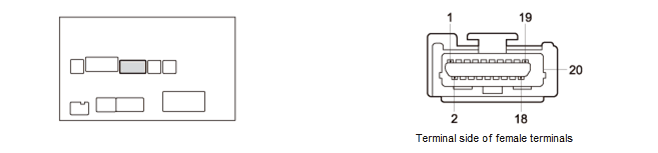

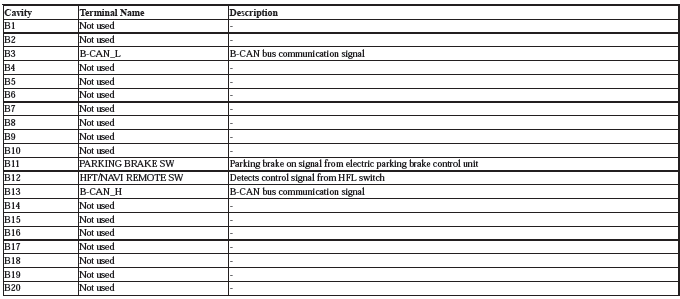

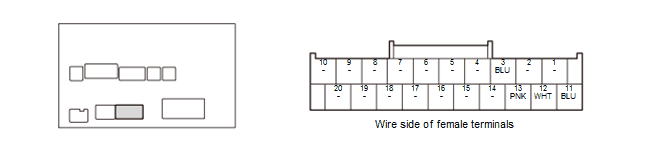

AUDIO UNIT CONNECTOR B (20P)
.png)
.png)

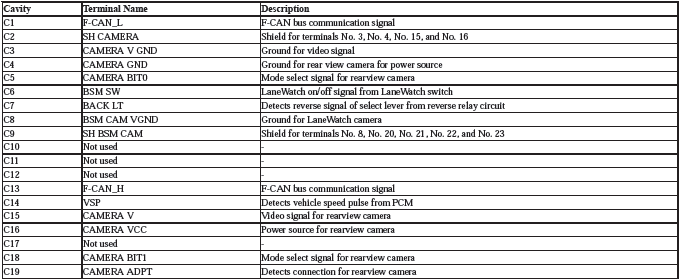

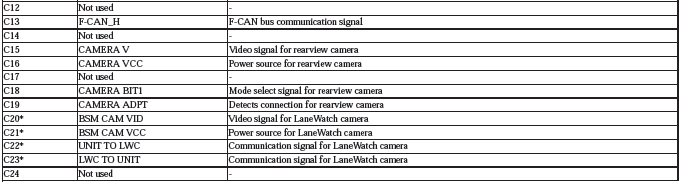

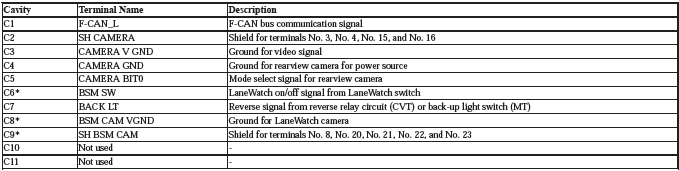

AUDIO UNIT CONNECTOR C (24P)
.png)
.png)
.png)
*: With LaneWatch

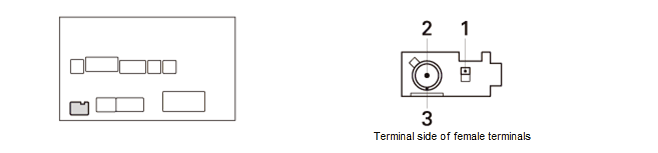

AUDIO UNIT CONNECTOR E (3P)
.png)
.png)

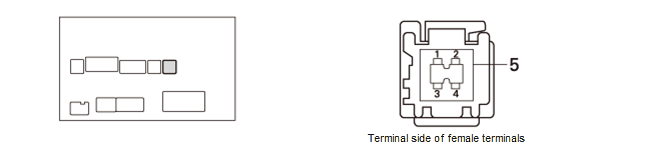

AUDIO UNIT CONNECTOR F (5P)
.png)
.png)
AUDIO UNIT CONNECTOR G (5P)
.png)
.png)

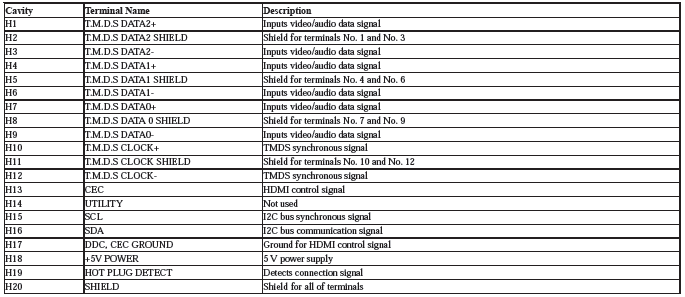

AUDIO UNIT CONNECTOR H (20P)
.png)
.png)

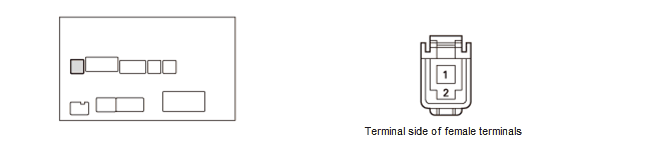

AUDIO UNIT CONNECTOR J (2P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS
Connector Index
Audio-Navigation Unit Connector A (24P)
Audio-Navigation Unit Connector B (20P)
Audio-Navigation Unit Connector C (24P)
Audio-Navigation Unit Connector D (12P)
Audio-Navigation Unit Connector E (3P)
Audio-Navigation Unit Connector F (5P)
Audio-Navigation Unit Connector G (5P)
Audio-Navigation Unit Connector H (20P)
Audio-Navigation Unit Connector J (2P)

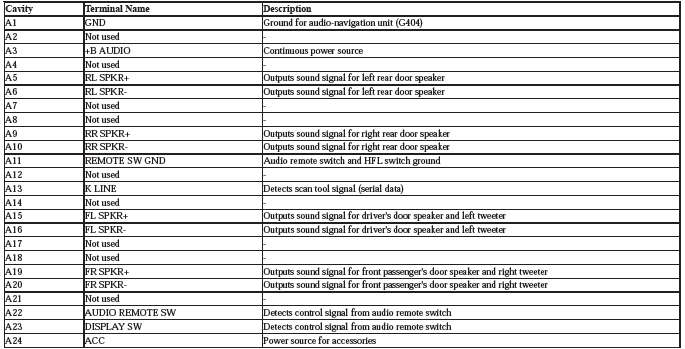

AUDIO-NAVIGATION UNIT CONNECTOR A (24P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR B (20P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR C (24P)
.png)
.png)
.png)

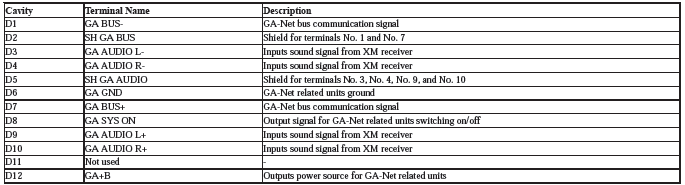

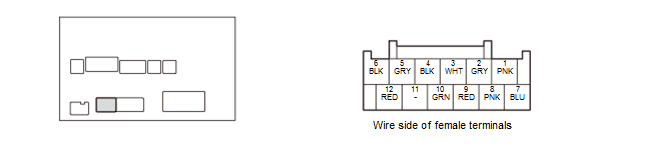

AUDIO-NAVIGATION UNIT CONNECTOR D (12P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR E (3P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR F (5P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR G (5P)
.png)
.png)

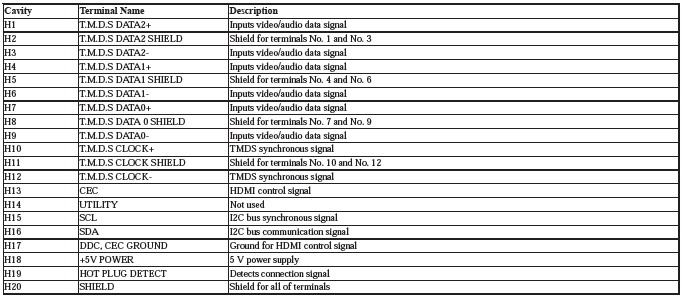

AUDIO-NAVIGATION UNIT CONNECTOR H (20P)
.png)
.png)
AUDIO-NAVIGATION UNIT CONNECTOR J (2P)
.png)
.png)
AUXILIARY JACK ASSEMBLY CONNECTOR FOR INPUTS AND OUTPUTS

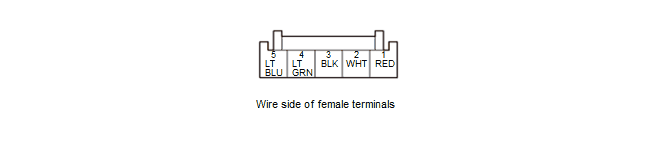

AUXILIARY JACK ASSEMBLY 5P CONNECTOR
.png)
.png)
HFL MICROPHONE CONNECTOR FOR INPUTS AND OUTPUTS

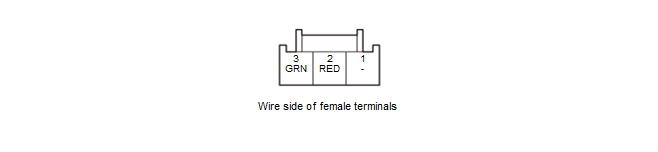

HFL MICROPHONE 3P CONNECTOR
.png)
.png)
REARVIEW CAMERA CONNECTOR FOR INPUTS AND OUTPUTS

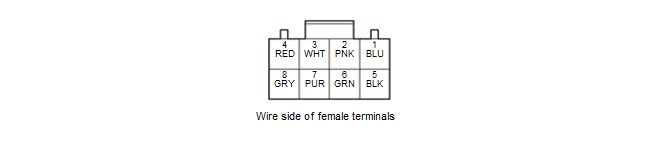

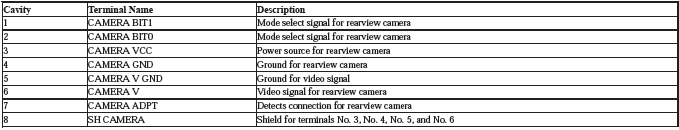

REARVIEW CAMERA 8P CONNECTOR
.png)
.png)
USB ADAPTER CONNECTOR FOR INPUTS AND OUTPUTS
NOTE: The USB adapter, the USB adapter A, and the USB adapter B are the same parts.

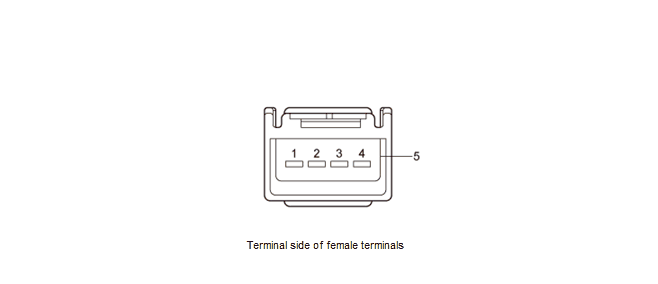

USB ADAPTER 5P CONNECTOR
.png)
.png)
XM RECEIVER CONNECTOR FOR INPUTS AND OUTPUTS
XM Receiver Connector for Inputs and Outputs
Connector Index
XM Receiver Connector A (14P)
XM Receiver Connector B (2P)

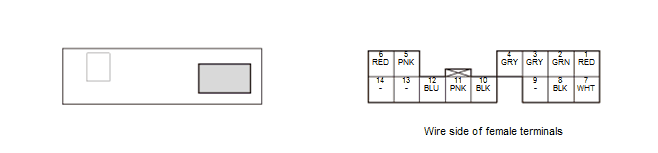

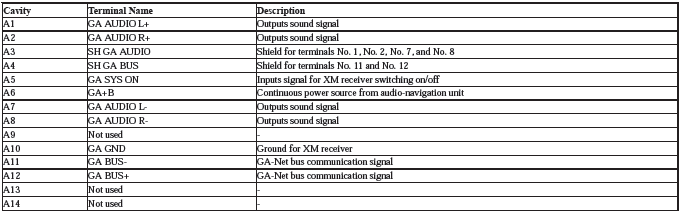

XM RECEIVER CONNECTOR A (14P)
.png)
.png)

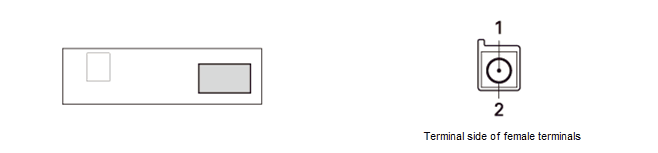

XM RECEIVER CONNECTOR B (2P)
.png)
.png)
COMPONENT LOCATION INDEX

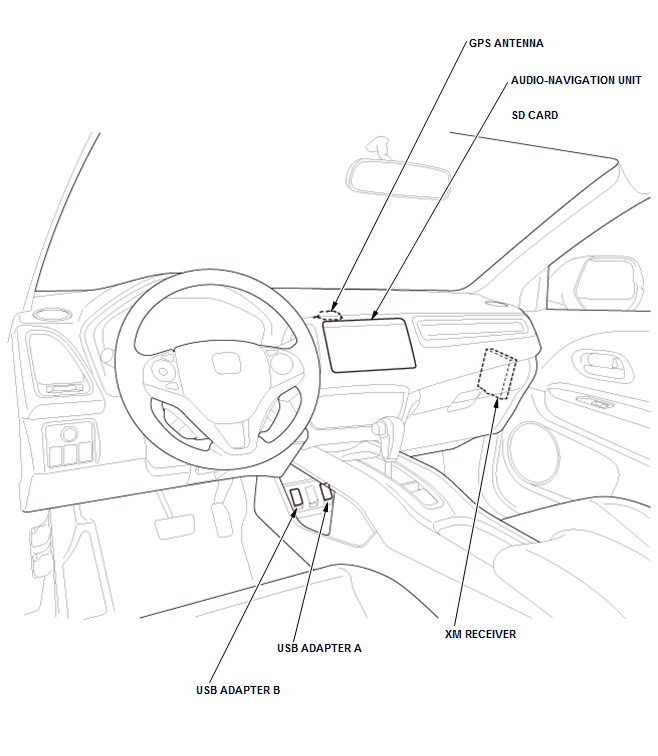

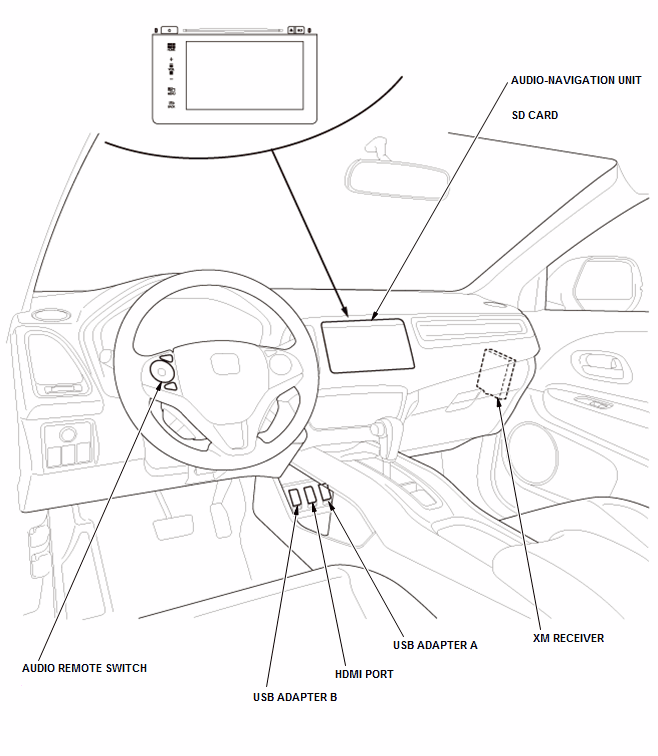

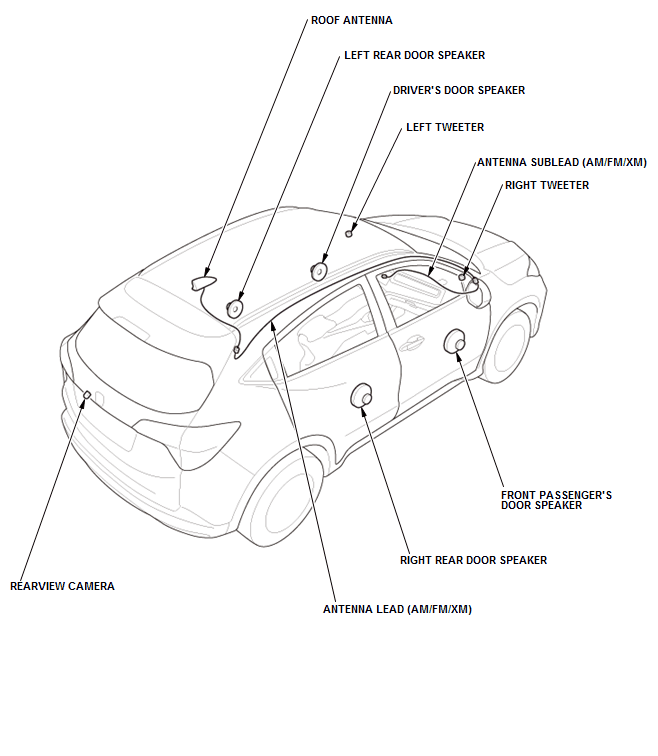

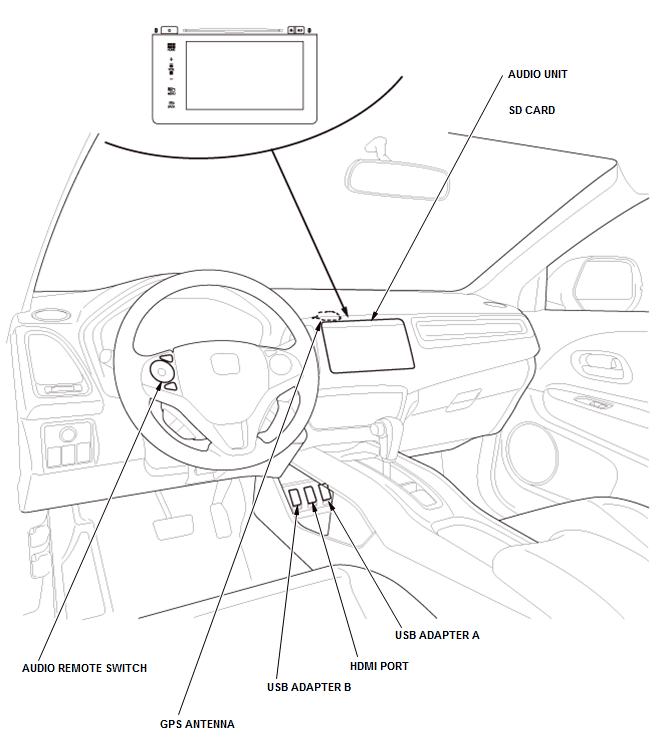

AUDIO SYSTEM COMPONENT LOCATION INDEX (WITH NAVIGATION)
.png)
.png)

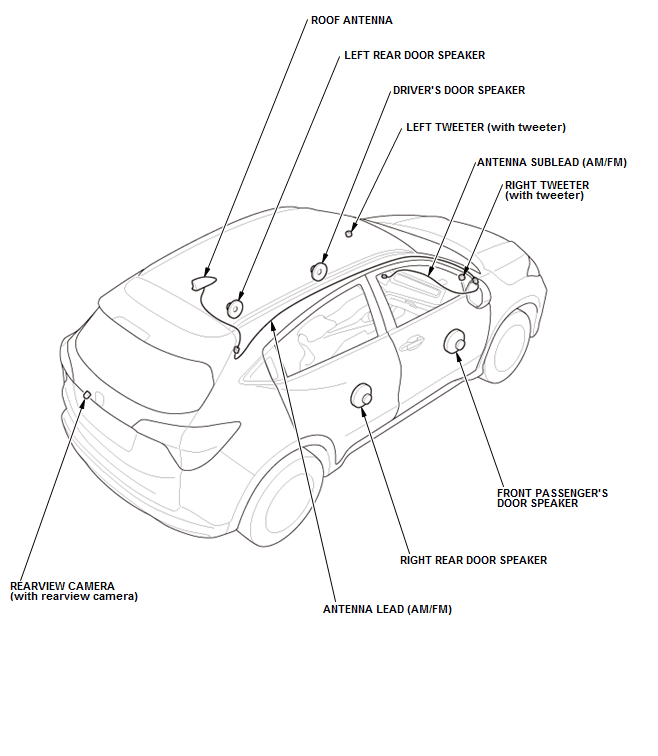

AUDIO SYSTEM COMPONENT LOCATION INDEX (WITHOUT NAVIGATION)
.png)

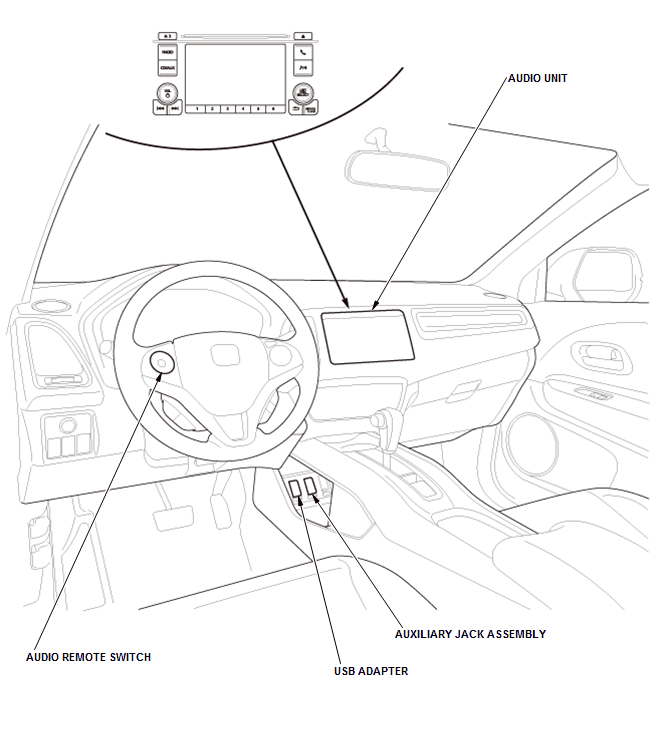

Display Audio Type (7-inch Screen)
.png)
Color Audio Type (5-inch Screen)
.png)

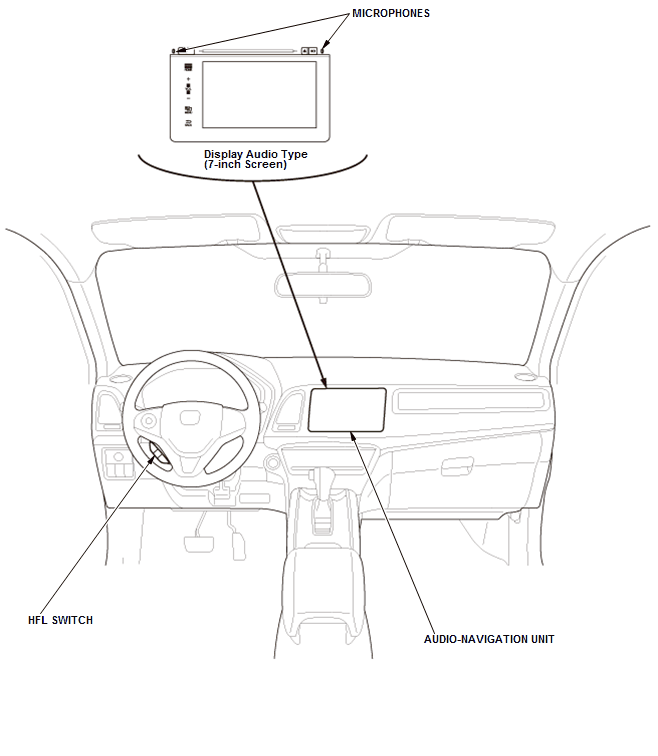

HANDSFREELINK SYSTEM COMPONENT LOCATION INDEX (WITH NAVIGATION)
.png)

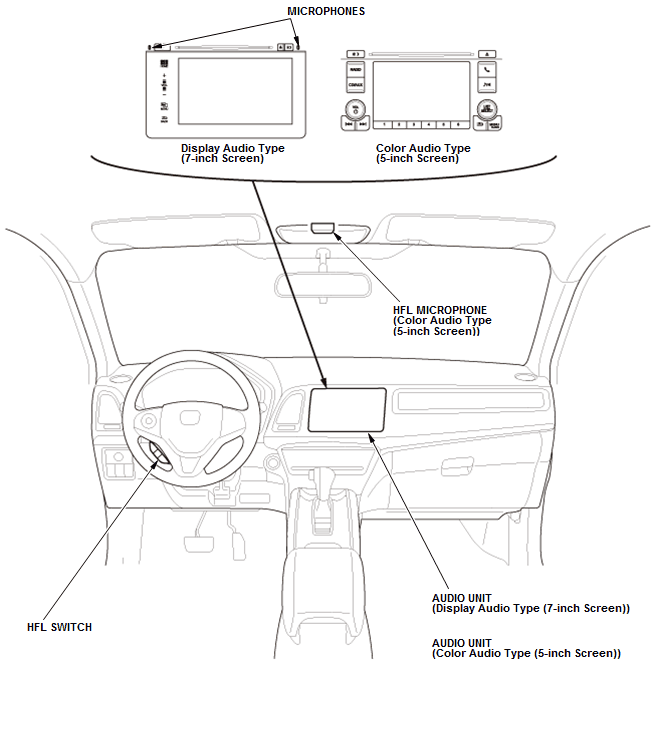

HANDSFREELINK SYSTEM COMPONENT LOCATION INDEX (WITHOUT NAVIGATION)
.png)

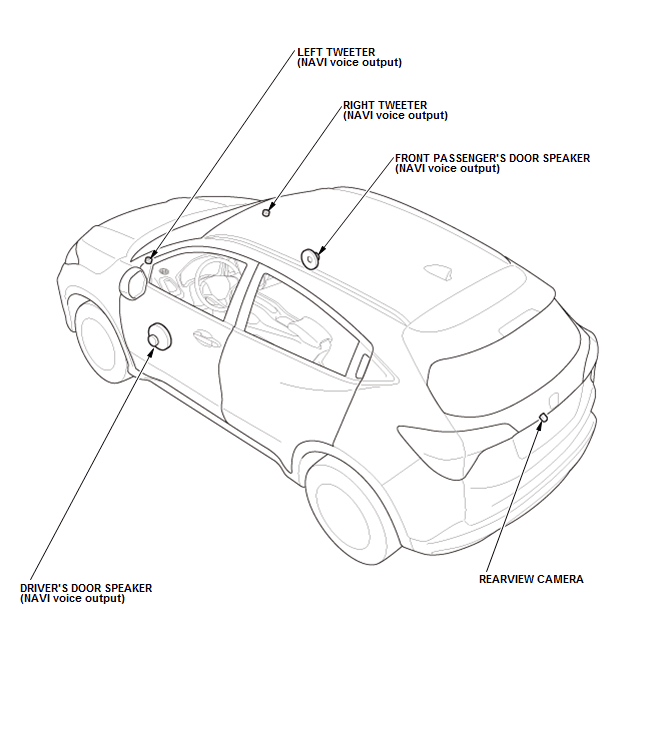

NAVIGATION SYSTEM COMPONENT LOCATION INDEX
.png)
.png)
