Honda HR-V: Connector and Harness Locations

WIRE HARNESS AND GROUND LOCATIONS

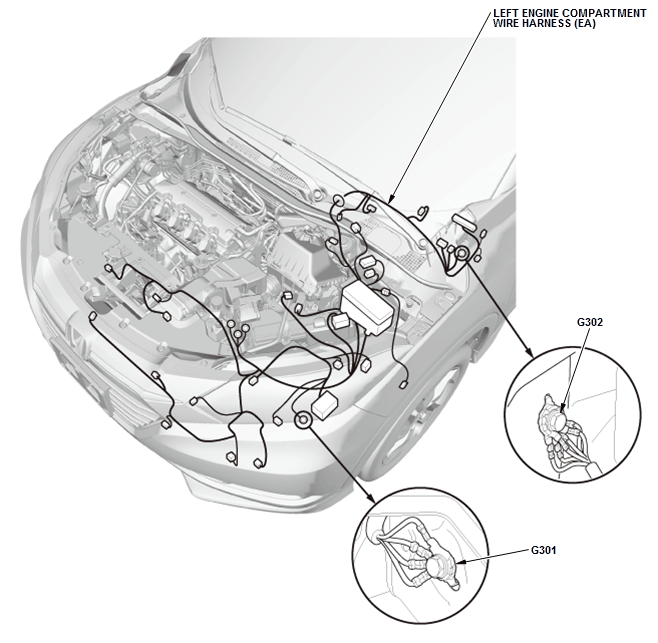

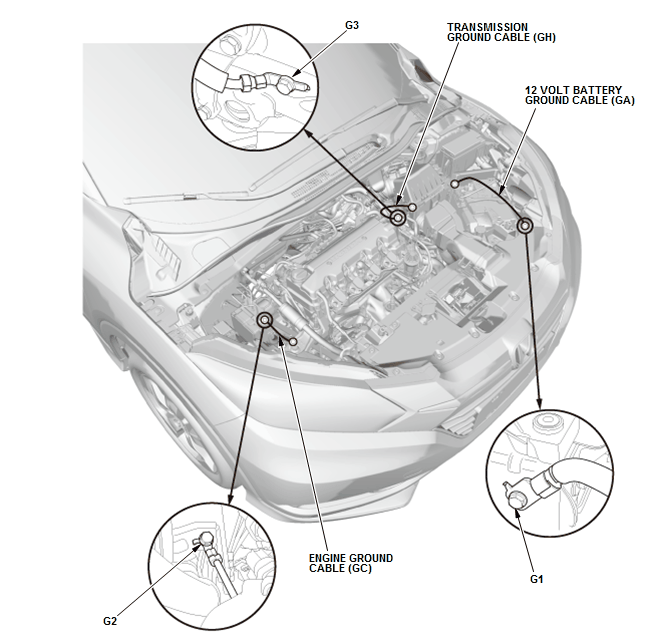

Engine Compartment (1/5)

Electrical System - Testing & Troubleshooting

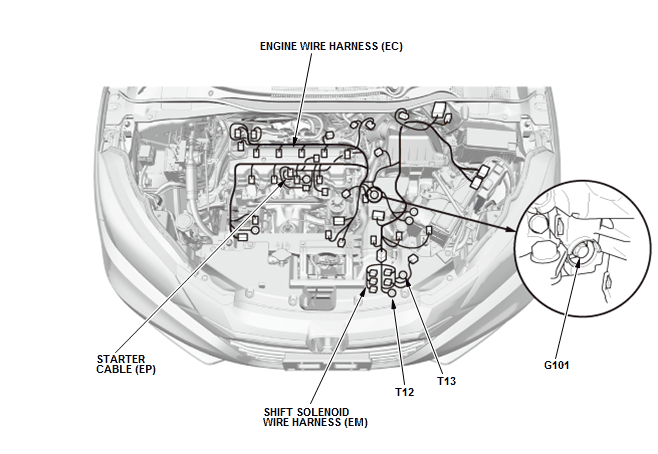

Engine Compartment (2/5) (CVT)

Electrical System - Testing & Troubleshooting

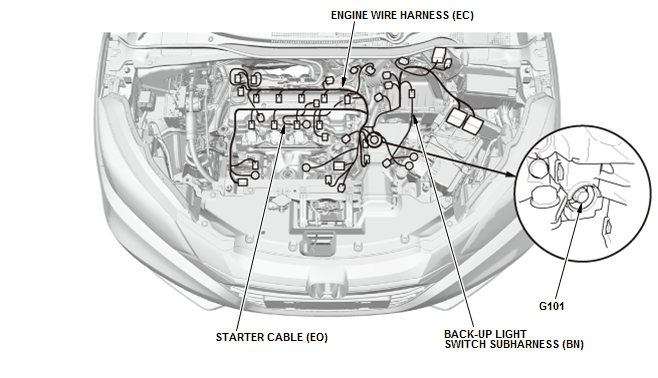

Engine Compartment (3/5) (M/T)

Electrical System - Testing & Troubleshooting

Engine Compartment (4/5)

Electrical System - Testing & Troubleshooting

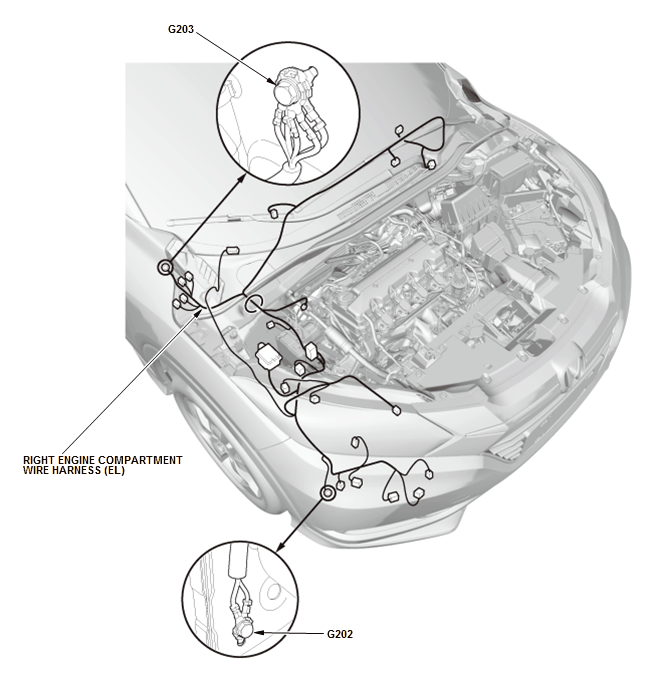

Engine Compartment (5/5)

Electrical System - Testing & Troubleshooting

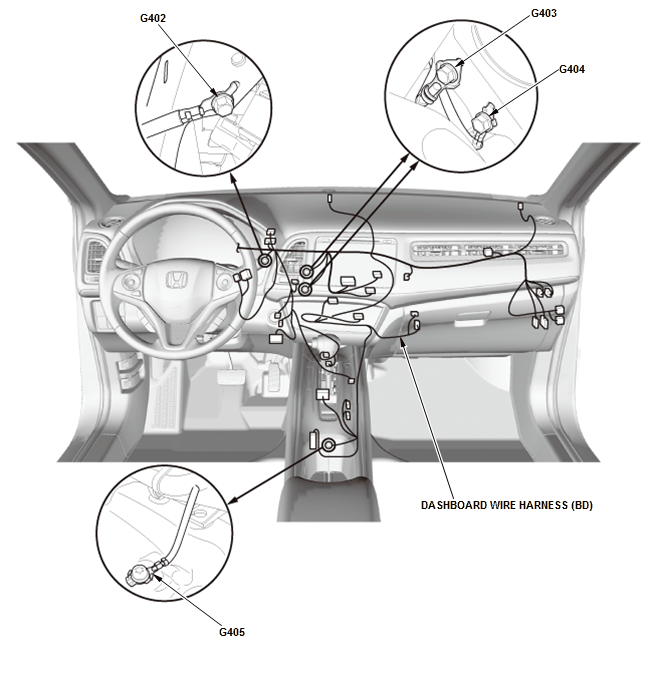

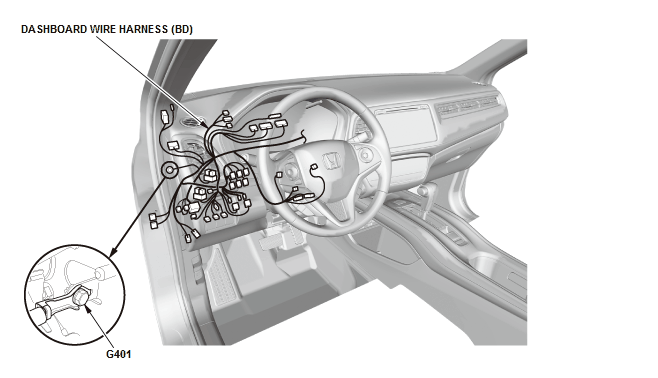

Dashboard (1/2)

Electrical System - Testing & Troubleshooting

Dashboard (2/2)

Electrical System - Testing & Troubleshooting

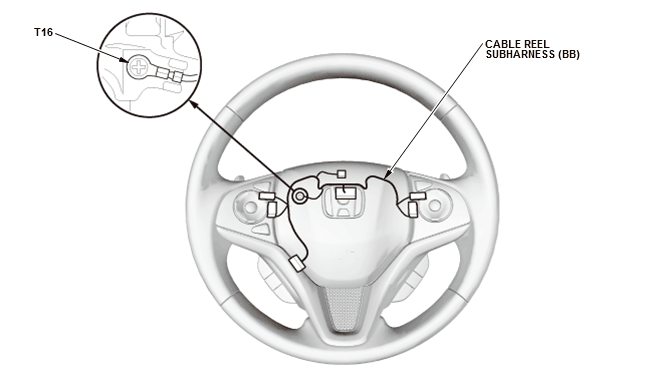

Steering

Electrical System - Testing & Troubleshooting

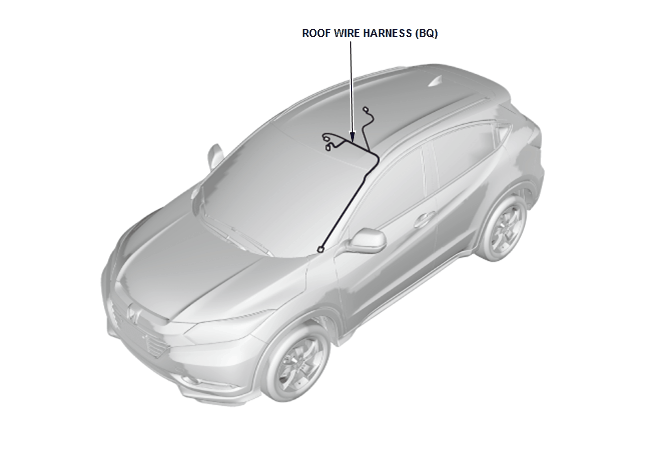

Roof (1/2) (Without moonroof)

Electrical System - Testing & Troubleshooting

Roof (2/2) (With moonroof)

Electrical System - Testing & Troubleshooting

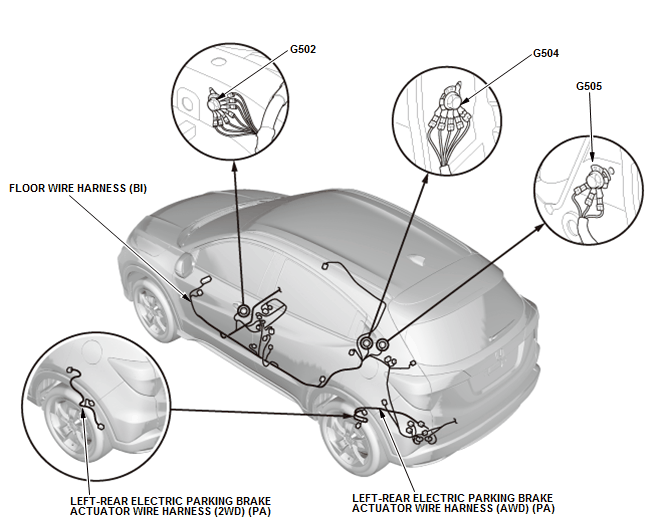

Floor (1/2)

Electrical System - Testing & Troubleshooting

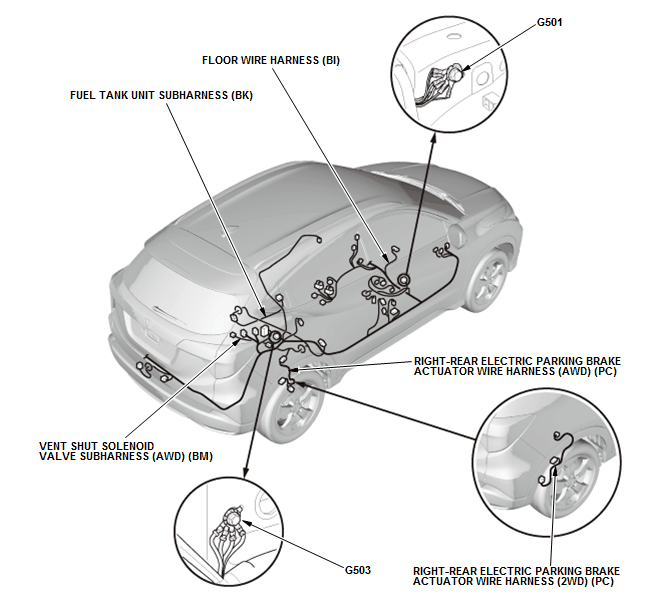

Floor (2/2)

Electrical System - Testing & Troubleshooting

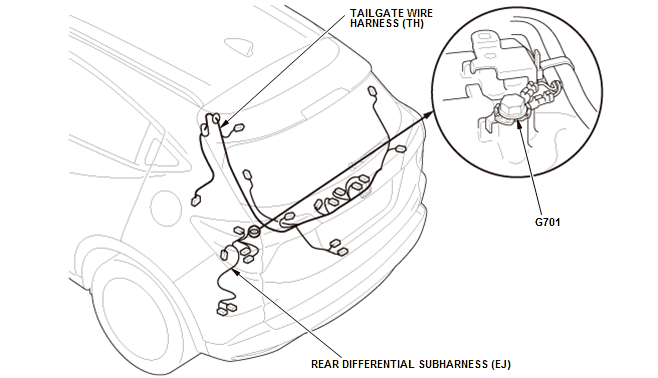

Rear and Tailgate

Electrical System - Testing & Troubleshooting

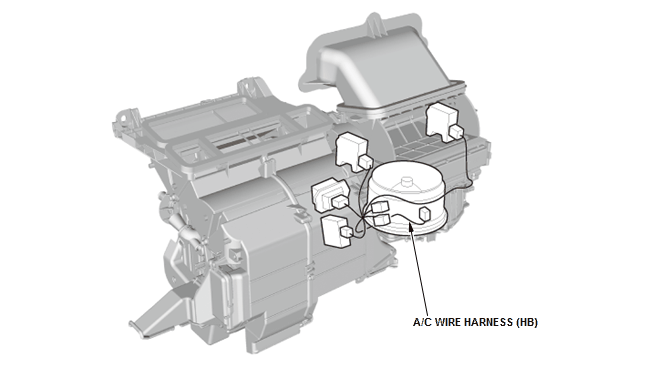

Blower

Electrical System - Testing & Troubleshooting

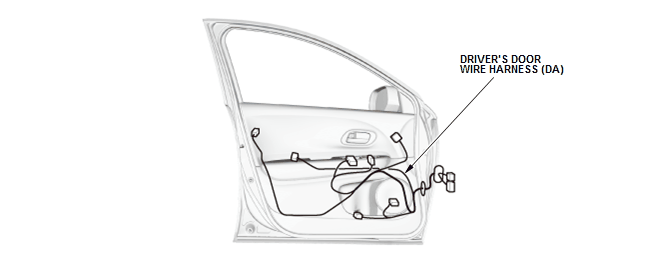

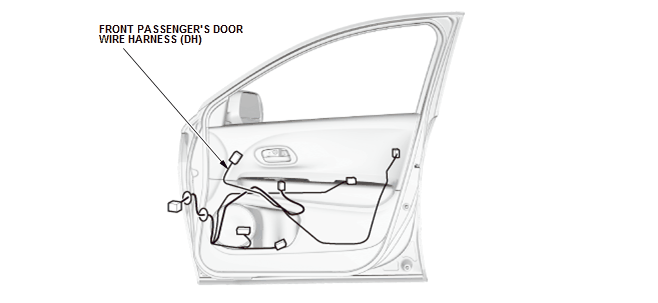

Door (1/4)

Electrical System - Testing & Troubleshooting

Door (2/4)

Electrical System - Testing & Troubleshooting

Door (3/4)

Electrical System - Testing & Troubleshooting

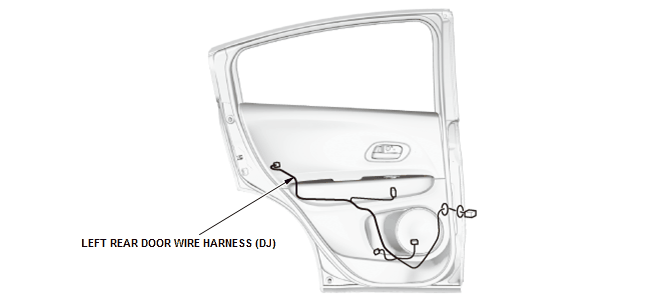

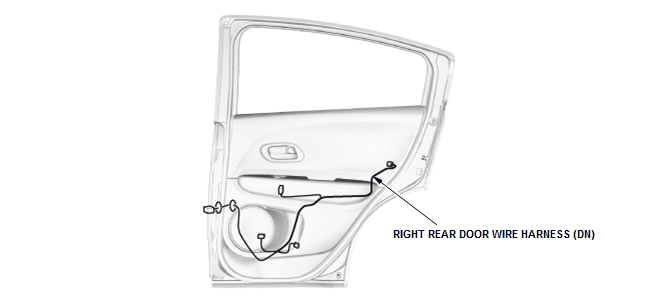

Door (4/4)

Electrical System - Testing & Troubleshooting
