Honda HR-V: Crankshaft Pulley Removal and Installation

Special Tools Required

Holder Handle 07JAB-001020B

Engine Control System & Engine Mechanical - Service Information

Pulley Holder Attachment, 50 x 39 mm 07MABPY30100

Engine Control System & Engine Mechanical - Service Information

Socket, 19 mm 07JAA-001020A or equivalent

Engine Control System & Engine Mechanical - Service Information

Removal

1. Right Front Wheel - Remove

2. Right Front Splash Shield - Remove

3. Drive Belt - Remove

4. Crankshaft Pulley - Remove

Engine Control System & Engine Mechanical - Service Information

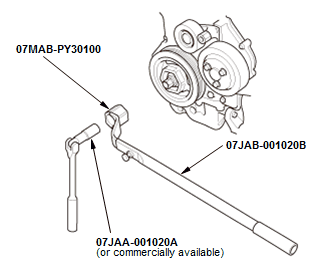

  1. Hold the pulley with the holder handle and the pulley holder attachment, 50 x 39 mm
  2. Remove the bolt with a socket, 19 mm and a breaker bar
  3. Remove the crankshaft pulley.

Installation

1. Crankshaft Pulley - Install

Engine Control System & Engine Mechanical - Service Information

  1. Remove any oil and clean the crankshaft pulley, the crankshaft, the bolt, and the washer
  2. Lubricate with new engine oil as shown.

Engine Control System & Engine Mechanical - Service Information

  1. Install the crankshaft pulley onto the crankshaft (A) by aligning the flat sides (B) of the pulley with the flat sides (C) of the inner oil pump gear.

Engine Control System & Engine Mechanical - Service Information

When a new crankshaft or a new pulley bolt is installed

  1. Hold the pulley with the holder handle and the pulley holder attachment, 50 x 39 mm, torque the bolt to 180 N.m (18.4 kgf.m, 133 lbf.ft) with a torque wrench and a socket, 19 mm, then remove the bolt.NOTE : Do not use an impact wrench
  2. Torque the bolt to 50 N.m (5.1 kgf.m, 37 lbf.ft) with a torque wrench and a socket.

Engine Control System & Engine Mechanical - Service Information

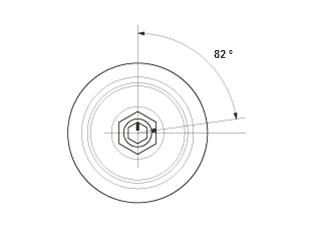

  1. Tighten the bolt an additional 82º.

Engine Control System & Engine Mechanical - Service Information

When the crankshaft or the pulley bolt is reused

  1. Hold the pulley with the holder handle and the pulley holder attachment, 50 x 39 mm, then torque the bolt to 70 N.m (7.1 kgf.m, 52 lbf.ft) with a torque wrench and a socket, 19 mm.
    NOTE:
    Do not use an impact wrench.

Engine Control System & Engine Mechanical - Service Information

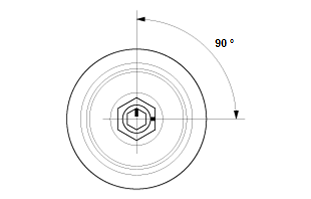

  1. Tighten the bolt an additional 90º.

2. Drive Belt - Install

3. Right Front Splash Shield - Install

4. Right Front Wheel - Install
