Honda HR-V: Cruise Control System - Service Information
REMOVAL & INSTALLATION
CRUISE CONTROL COMBINATION SWITCH REMOVAL, INSTALLATION, AND TEST
Removal and Installation
SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC), and the precautions and procedures before doing repairs or service.
1. Driver's Airbag - Remove
2. Steering Wheel Trim - Remove
.png)

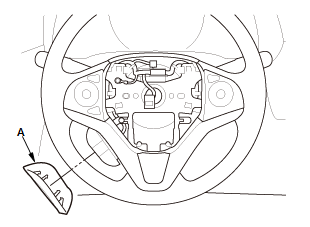

- Remove the switch cases (A).
.png)

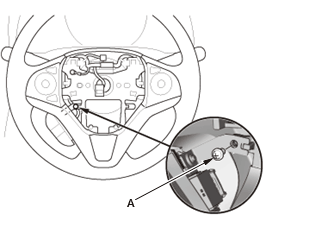

- Remove the screws (A).
.png)

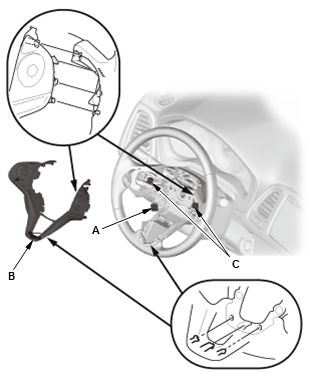

- Disconnect connector (A)
- Pull out the steering wheel trim (B)
- Disconnect the connectors (C), then remove the steering wheel trim.
3. Cruise Control Combination Switch -Remove
.png)

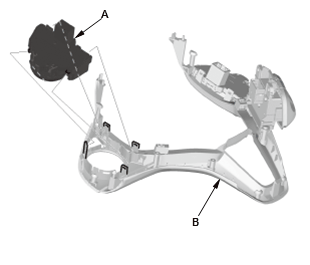

- Then remove the cruise control combination switch (A) from steering wheel trim (B).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Test
1. Cruise Control Combination Switch - Test
.png)
-

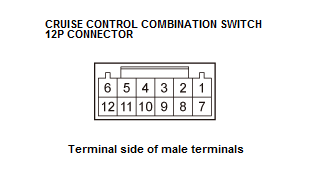

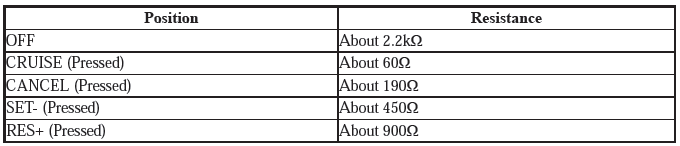

Measure the resistance between cruise control combination switch connector terminals No. 2 and No. 5 according to the table.
.png)
If there is no resistance in one or more positions, replace the cruise control combination switch.
.png)
- Check the LED for illumination by applying power and ground to the terminals
