Honda HR-V: CVT Driven Pulley Pressure Sensor Removal and Installation (CVT)

Removal and Installation

NOTE: Keep all foreign particles out of the transmission.

1. Vehicle - Lift

2. Engine Undercover - Remove (With 2WD)

3. Left Front Splash Shield - Remove

4. CVT Driven Pulley Pressure Sensor - Remove

Continuously Variable Transmission (CVT) - Service Information

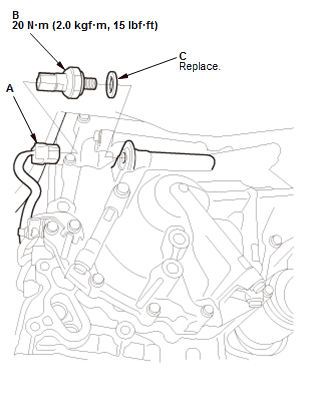

Fig. 2: CVT Driven Pulley Pressure Sensor With Torque Specifications

  1. Disconnect the connector (A).

    NOTE: Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.

  2. Remove the CVT driven pulley pressure sensor (B) with the sealing washer (C).

    NOTE: Be careful not to damage the plastic part.

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE:

    • Be sure to use a new sealing washer when installing the CVT driven pulley pressure sensor.
    • If necessary, add transmission fluid to the proper level.

CVT SPEED SENSOR REMOVAL AND INSTALLATION (CVT)

Removal and Installation

NOTE: Keep all foreign particles out of the transmission.

1. Front Grille Cover - Remove

2. Air Cleaner - Remove

3. CVT Speed Sensor - Remove

Continuously Variable Transmission (CVT) - Service Information

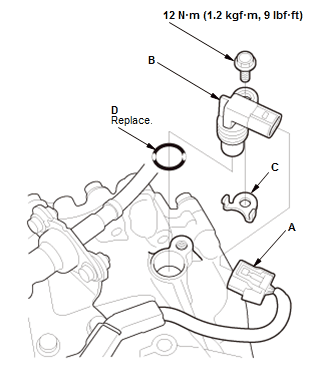

Fig. 3: CVT Speed Sensor With Torque Specifications

  1. Disconnect the connector (A).

    NOTE:Check the connector for corrosion, dirt, or oil, and clean or repair if necessary.

  2. Remove the CVT speed sensor (B) with the sensor washer (C) and the O-ring (D).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    NOTE: When installing the CVT speed sensor, be sure to use a new O-ring which should be applied a light coat of clean transmission fluid before installation.
