Honda HR-V: Description

MULTIPLEX INTEGRATED CONTROL SYSTEM DESCRIPTION - CONTROL/FUNCTION

Self-Diagnostic Function

The MICU provides the self-diagnostic function for checking the communication and input systems.

Communication Check (Test Mode 1):

When the B-CAN BUS or the connection to the gauge control module is disconnected, an error code is shown with the number of blinks of the front individual map light and ceiling light.

Switch Input Check (Test Mode 2):

When the input of a switch or a sensor to the MICU changes, diagnosis of the input system can be performed on the basis of the front individual map light and ceiling light flashing count.

HDS Diagnostics

The HDS connects to the data link connector (DLC) to communicate with the vehicle's control units. This allows the HDS to retrieve DTCs, diagnostic data, and transmit forced commands during output function tests.

MULTIPLEX INTEGRATED CONTROL SYSTEM DESCRIPTION - FAILSAFE FUNCTION

Hardware Failsafe Control

When a CPU problem or an abnormal power supply voltage is detected, the MICU moves to the hardware failsafe mode, and each system output load is set to the pre-programmed failsafe value.

Software Failsafe Control

When any of the data from the B-CAN circuit cannot be received within a specified time, or an unusual combination of the data is recognized, the MICU moves to the software failsafe mode. The data that cannot be received is forced to a pre-programmed value.

MULTIPLEX INTEGRATED CONTROL SYSTEM DESCRIPTION - FUNCTIONAL CONTROL MICU

Power Supply Voltage Monitoring Function

The MICU monitors the power supply voltage (backup voltage). If the voltage drops below 10 V, the MICU does not store DTCs.

Integrated Control Systems

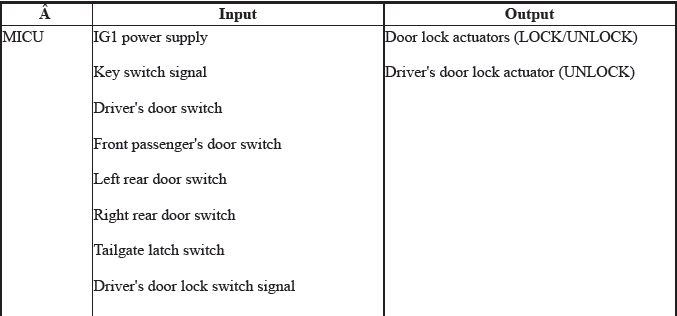

Prevention of Key Locked Inside Vehicle

The MICU controls of the door lock actuators based on inputs from each switch and B-CAN data.

Integrated Control Systems

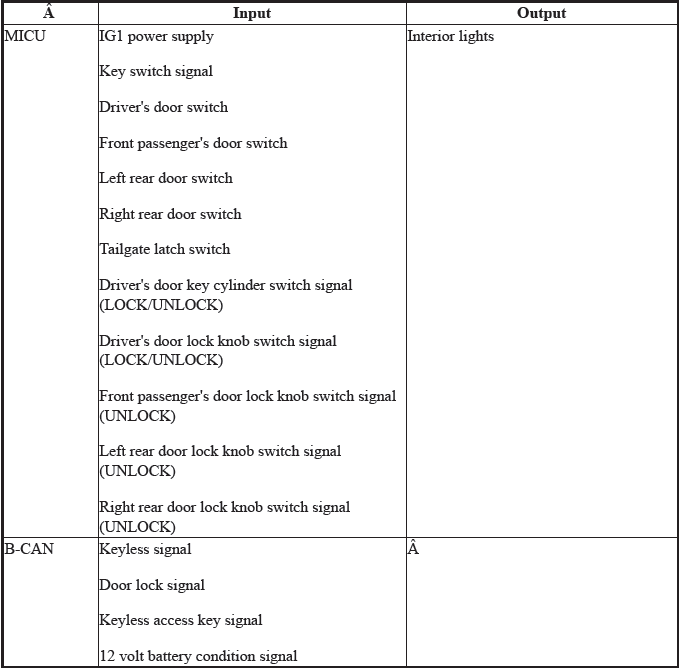

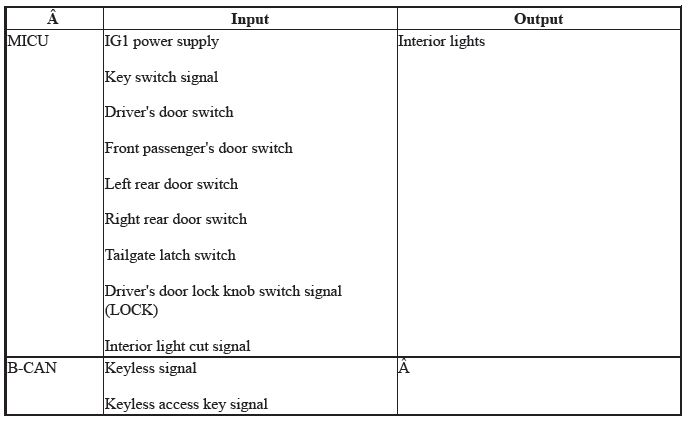

Entry Lights Control System (Ceiling Light, Front Individual Map Light)

The MICU controls the interior lights based on inputs from each switch and B-CAN.

Integrated Control Systems

Cargo Area Light

The MICU controls the cargo area light based on inputs from each switch.

Integrated Control Systems

Integrated Control Systems

Interior Lights Auto-Off Timer (Ceiling Light, Front Individual Map Light)

The MICU controls the interior lights OFF based on inputs from each switch and B-CAN data.

Integrated Control Systems

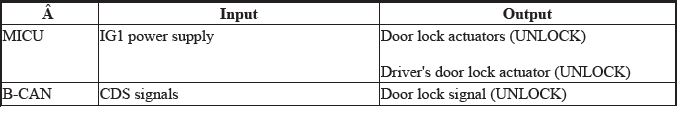

Collision Detection Signal (CDS)

The MICU controls the door lock actuators based on inputs from ignition switch (IG1) and B-CAN data.

Integrated Control Systems

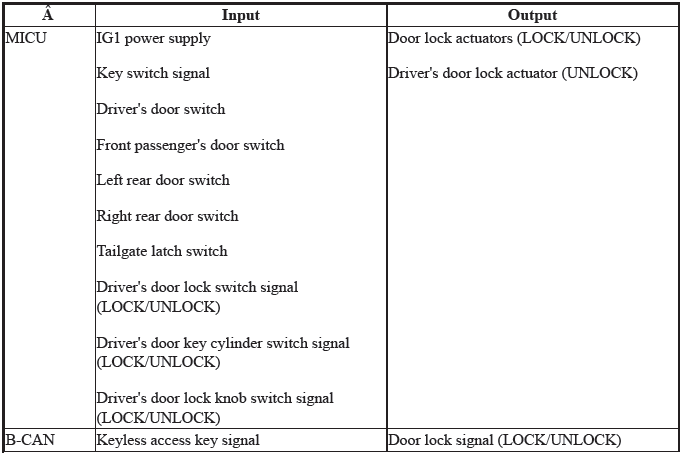

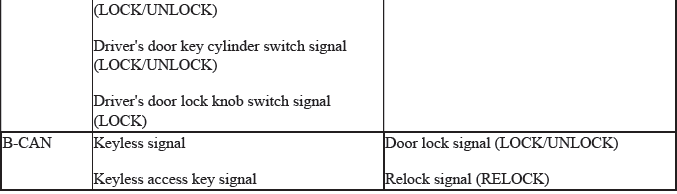

Power Door Locks

The MICU controls the door lock actuators based on inputs from each switch and B-CAN data.

Integrated Control Systems

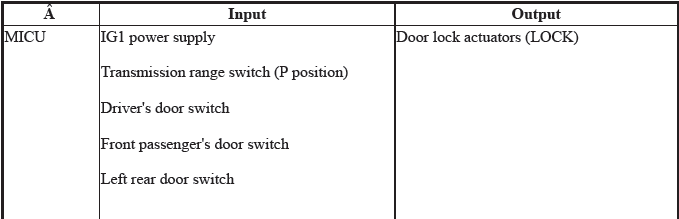

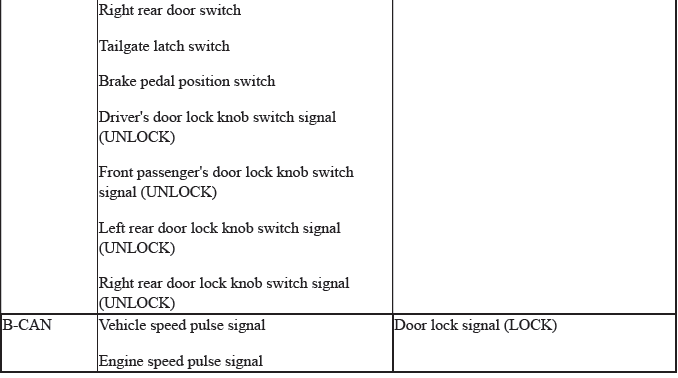

Auto Power Door Locks (LOCK Operation)

The MICU controls the door lock actuators based on inputs from each switch and B-CAN data.

Integrated Control Systems

Integrated Control Systems

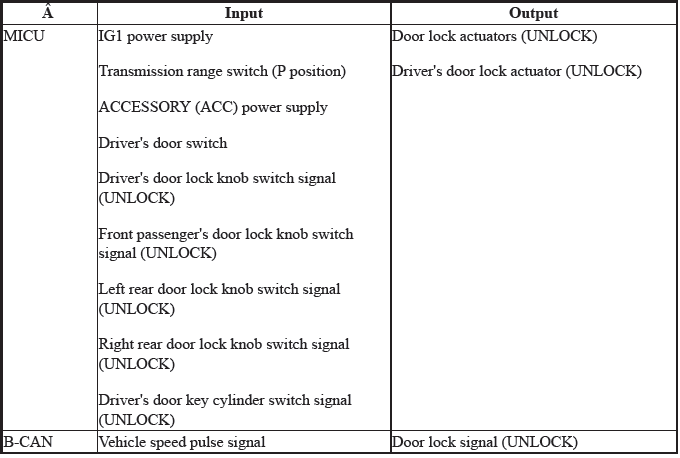

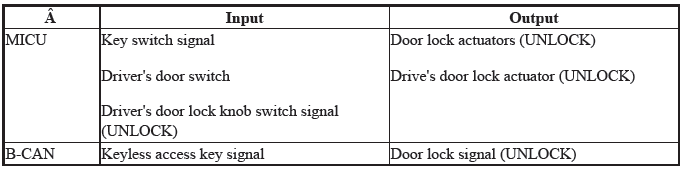

Auto Power Door Locks (UNLOCK Operation)

The MICU controls the door lock actuators based on inputs from each switch and B-CAN data.

Integrated Control Systems

Auto Power Door Locks (LOCK/UNLOCK Switching Function)

The MICU controls the door lock actuators based on inputs from each switch and B-CAN data.

Integrated Control Systems

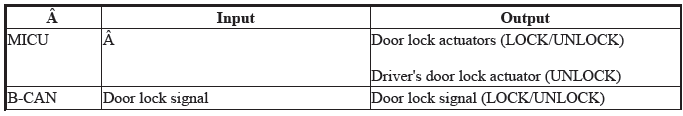

Door Lock Response Operation

The MICU controls the door lock actuators based on door lock signal sent by B-CAN data.

Integrated Control Systems

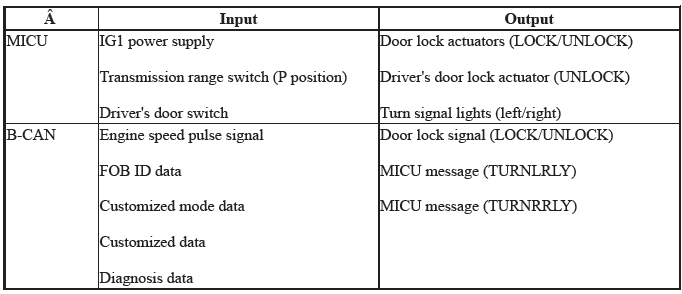

Keyless Entry System (Door Lock)

The MICU controls the door lock actuators based on inputs from each switch and B-CAN data.

Integrated Control Systems

Integrated Control Systems

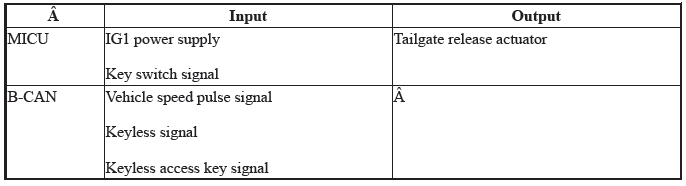

Keyless Entry System (Tailgate)

The MICU controls the tailgate release actuator based on inputs from each switch and B-CAN data.

Integrated Control Systems

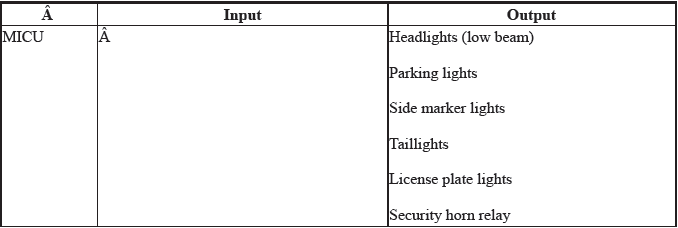

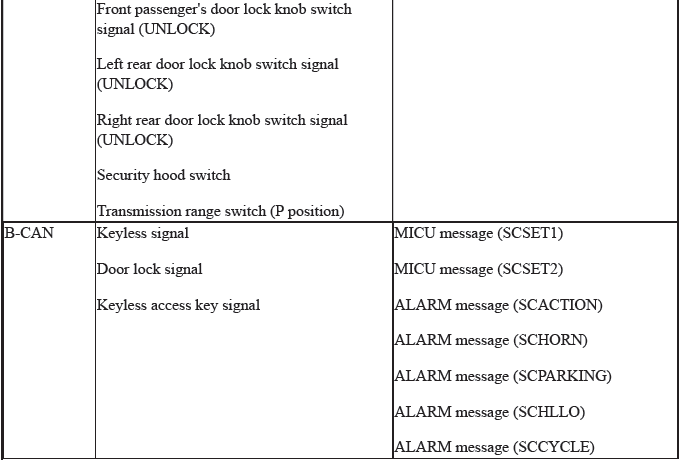

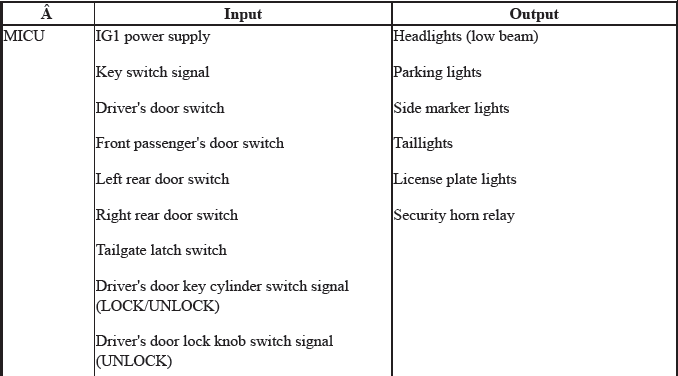

Security Alarm System

The MICU controls the lighting system and the horn based on inputs from each switch and B-CAN data.

Integrated Control Systems

Integrated Control Systems

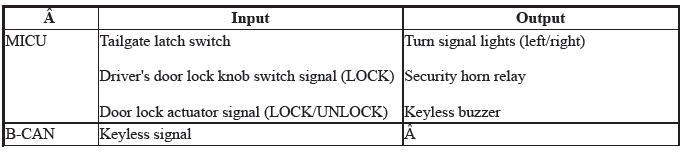

Keyless Answer Back

The MICU controls the turn signal/hazard warning lights based on keyless signal sent by B-CAN.

Integrated Control Systems

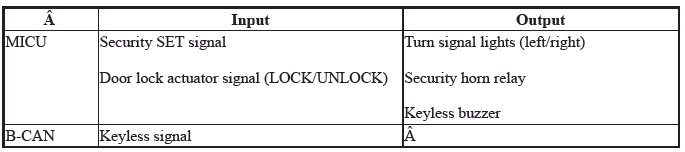

Security Answer Back

The MICU controls the turn signal/hazard warning lights based on keyless signal sent by B-CAN.

Integrated Control Systems

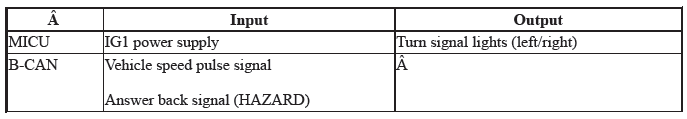

Answer Back Response Operation (Turn signal light)

The MICU controls the turn signal/hazard warning lights based on keyless signal sent by B-CAN.

Integrated Control Systems

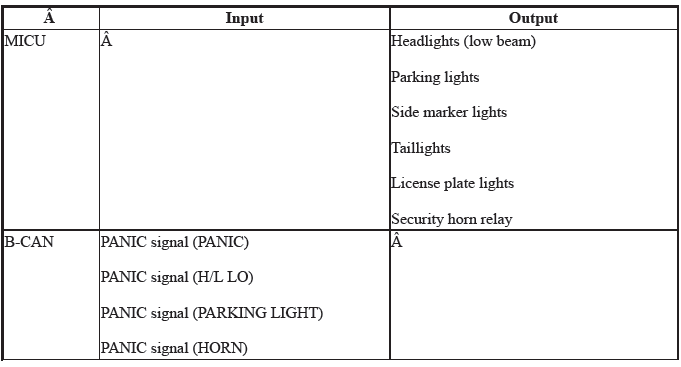

Keyless PANIC Operation

The MICU controls the PANIC operation based on B-CAN data.

Integrated Control Systems

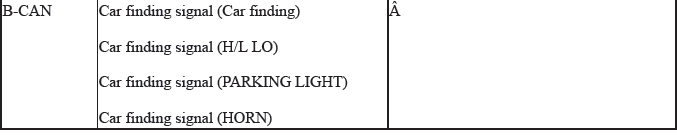

Car Finding Operation

The MICU controls the car finding operation based on B-CAN data.

Integrated Control Systems

Integrated Control Systems

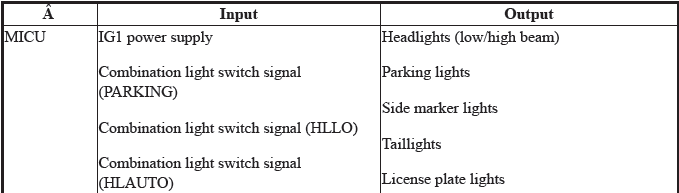

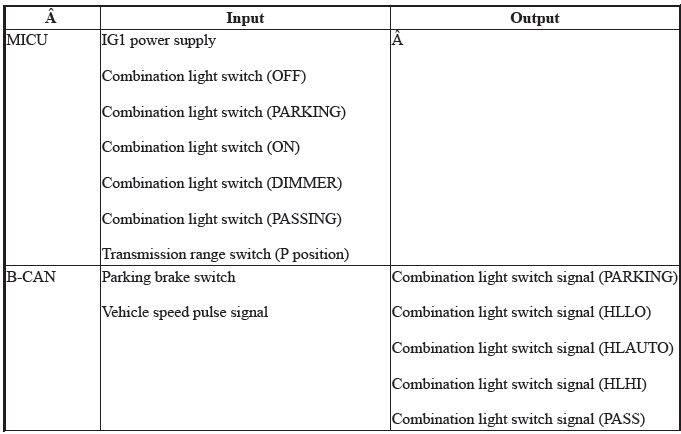

Combination Light Switch

The MICU controls the lighting system based on inputs from the combination light switch.

Integrated Control Systems

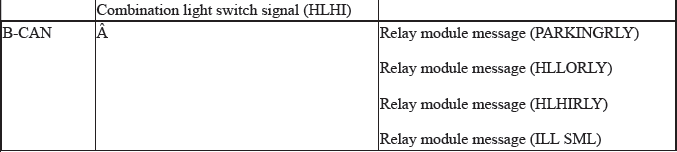

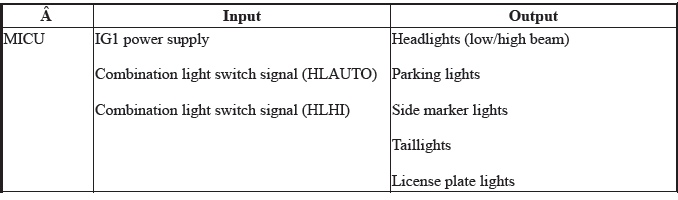

Exterior Lights

The MICU controls the exterior lights based on combination light switch inputs sent by B-CAN data.

Integrated Control Systems

Integrated Control Systems

Headlight Auto OFF Function

The MICU controls the lighting system based on inputs from each switch and B-CAN data.

Integrated Control Systems

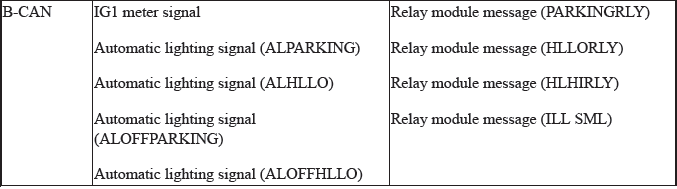

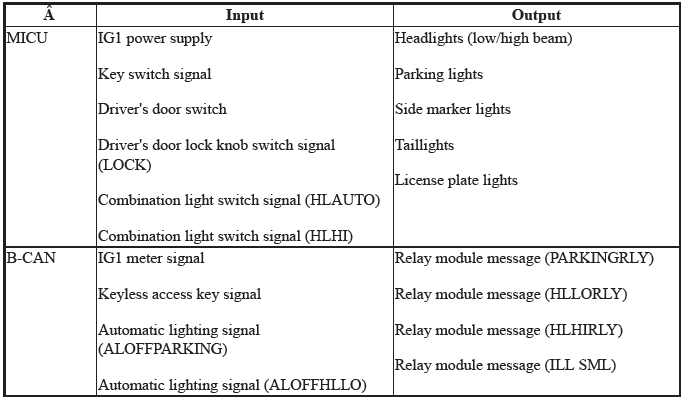

Automatic Lighting System

The MICU controls the automatic lighting system based on inputs from IG1 switch and B-CAN data.

Integrated Control Systems

Integrated Control Systems

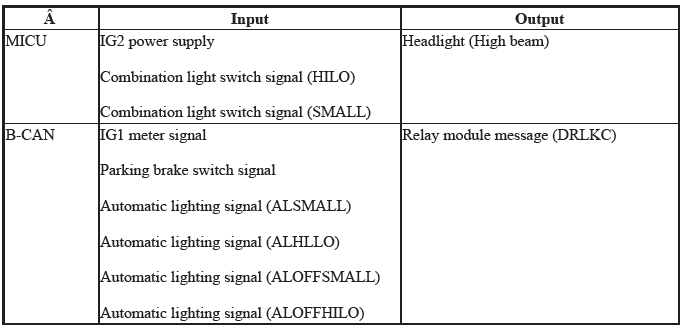

Daytime Running Lights

The MICU controls the headlights daytime running lights based on inputs from each switch and B-CAN data.

Integrated Control Systems

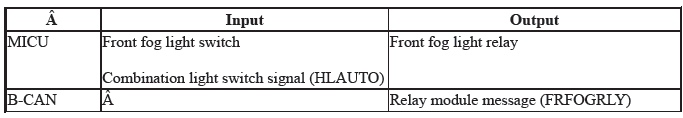

Front Fog Lights

The MICU controls the front fog lights based on inputs from combination light switch.

Integrated Control Systems

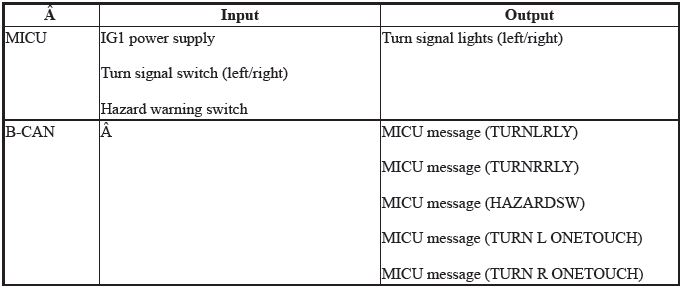

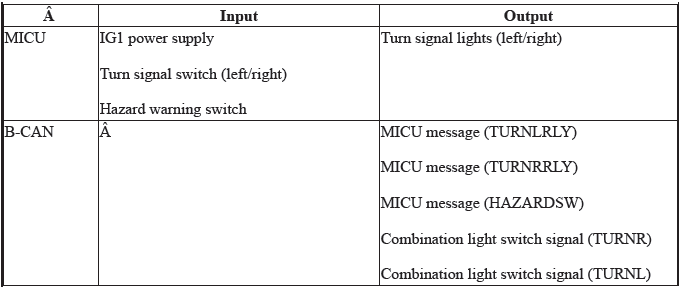

Turn Signal/Hazard Warning Lights

The MICU controls the turn signal/hazard warning lights based on inputs from each switch and the hazard warning switch.

Integrated Control Systems

One-Push Turn Signals

The MICU controls the turn signal lights based on inputs from combination light switch.

Integrated Control Systems

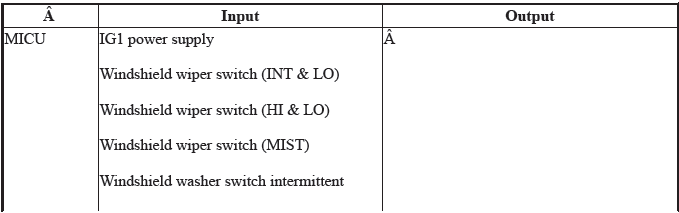

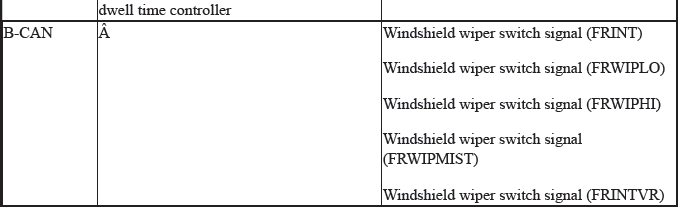

Windshield Wiper Switch

The MICU controls the wiper system based on inputs from each switch.

Integrated Control Systems

Integrated Control Systems

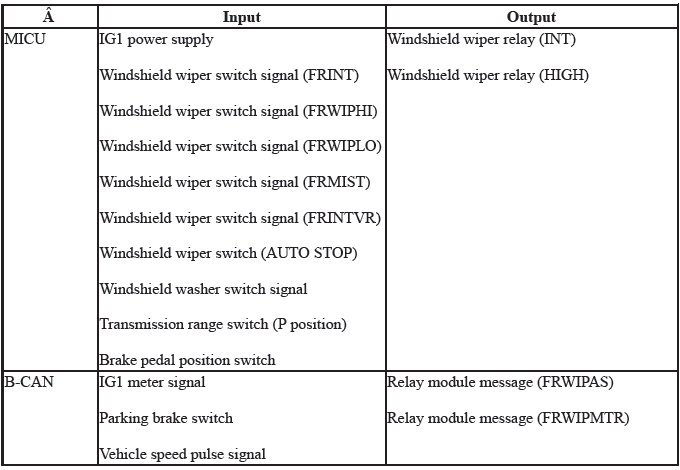

Windshield Wiper

The MICU controls the windshield wiper based on inputs from each switch and B-CAN data.

Integrated Control Systems

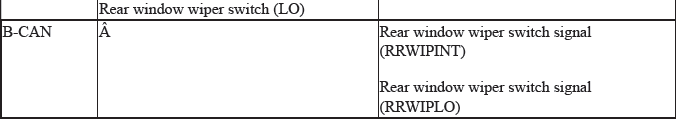

Rear Window Wiper Switch

The MICU controls the rear window wiper system based on inputs from rear window wiper switch.

Integrated Control Systems

Integrated Control Systems

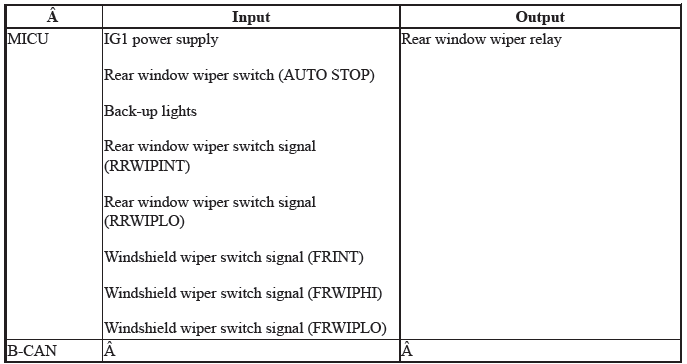

Rear Window Wiper Operation

The MICU controls the rear window wiper based on inputs from each switch and B-CAN data.

Integrated Control Systems

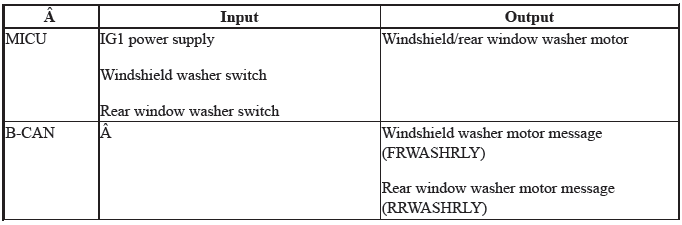

Washer Operation

The MICU controls the windshield washer motor based on inputs from each switch.

Integrated Control Systems

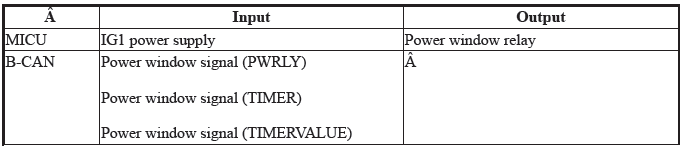

Power Window Relay

The MICU controls the power window key-off operation based on inputs from ignition switch and B-CAN data.

Integrated Control Systems

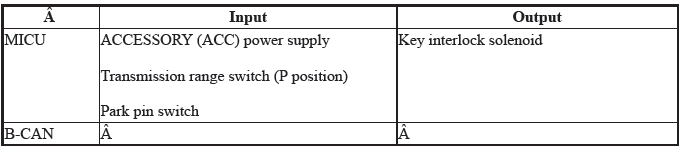

Key Interlock (CVT)

The MICU controls the key interlock solenoid based on inputs from each switch.

Integrated Control Systems

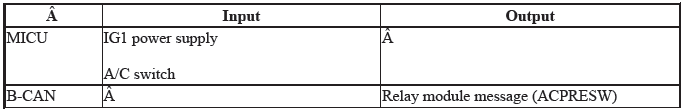

A/C Switch

The MICU controls the A/C switch signal based on inputs from each switch.

Integrated Control Systems

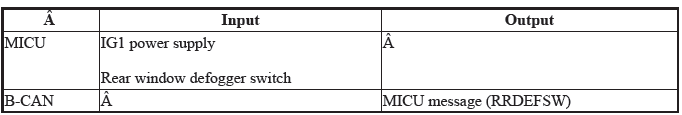

Rear Window Defogger Switch

The MICU controls the rear window defogger signal based on inputs from each switch.

Integrated Control Systems

Heated Windshield Wiper Area Operation

The MICU controls the heated windshield wiper area based on inputs from each switch and B-CAN data.

Integrated Control Systems

Integrated Control Systems

Integrated Control Systems

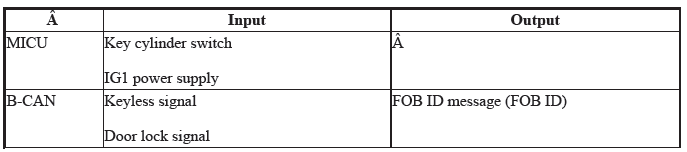

FOB ID Transmission Operation

The MICU controls the FOB ID transmission based on inputs from each switch and B-CAN data.

Integrated Control Systems

MULTIPLEX INTEGRATED CONTROL SYSTEM DESCRIPTION - OVERVIEW

The MICU (built into the under-dash fuse/relay box) is one of the B-CAN components. The MICU controls many systems related to the body controller area and security system and also works as a gateway to diagnose other B-CAN connected ECUs with the HDS.
