Honda HR-V: Disposal

AIRBAG AND TENSIONER DISPOSAL (KA/KC)

Special Tools Required

Deployment Tool 07AAZ-000A100

Supplemental Restraint System - Testing & Troubleshooting

Inspection

NOTE:

  • Before scrapping any front airbags, side airbags, side curtain airbags, driver's seat belt outer lap tensioner, or front seat belt tensioners (including those in a whole vehicle to be scrapped), the part (s) must be deployed. If the vehicle is still within the warranty period, the Honda District Parts and Service Manager must give approval and/or special instruction before deploying the part (s). Only after the part (s) have been deployed (as the result of vehicle collision, for example), can they be scrapped. If the parts appear intact (not deployed), treat them with extreme caution. Follow this procedure.
  • Please read the tool manual precautions and procedures for more details of the deployment tool.

1. Airbag and Tensioner - Dispose

Supplemental Restraint System - Testing & Troubleshooting

Deploying Airbags in the Vehicle

If an SRS equipped vehicle is to be entirely scrapped, its front airbags, side airbags, side curtain airbags, driver's seat belt outer lap tensioner, and front seat belt tensioners should be deployed while still in the vehicle. These parts should not be considered as salvageable parts and should never be installed in another vehicle.

1. Turn the vehicle to the OFF (LOCK) mode. Do the 12 volt battery terminal disconnection procedure, then wait at least 3 minutes before starting work.

2. Confirm that each front airbag, side airbag, side curtain airbag, driver's seat belt outer lap tensioner, or front seat belt tensioner is securely mounted.

3. Confirm that the deployment tool is functioning properly by following the check procedure on the tool label.

Driver's Airbag

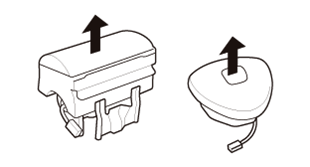

4. Remove the column covers.

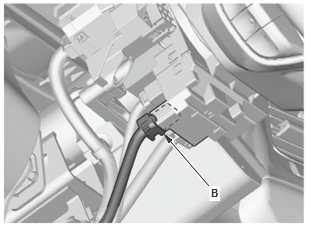

5. Locate the cable reel connector B on the dashboard wire harness. Do not disconnect the cable reel connector B.

Supplemental Restraint System - Testing & Troubleshooting

Front Passenger's Airbag

6. Remove the glove box.

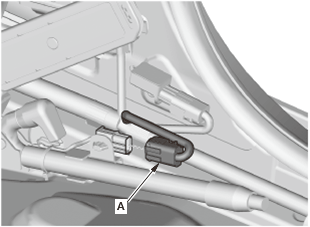

7. Disconnect the connector (A).

Supplemental Restraint System - Testing & Troubleshooting

Side Airbag

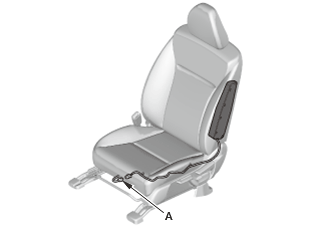

8. Disconnect the connector (A).

Supplemental Restraint System - Testing & Troubleshooting

Side Curtain Airbag

9. Remove the headliner.

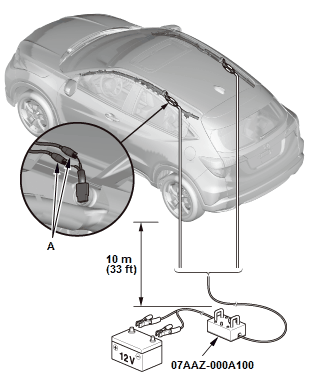

10. Locate the right and left side curtain airbag inflator connectors (A) on the floor wire harness. Do not disconnect the side curtain airbag inflator connectors.

Front Seat Belt Tensioner

11. Remove the B-pillar lower trim - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag).

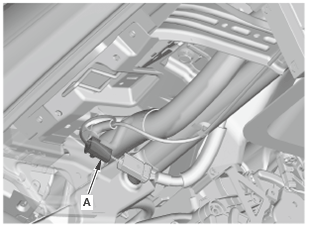

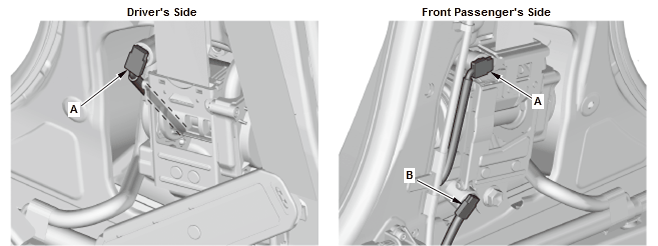

12. Locate the driver's and front passenger's seat belt tensioner connectors (A) on the floor wire harness. Do not disconnect the front seat belt tensioner connectors. Pull the seat belt out all the way and cut it.

Supplemental Restraint System - Testing & Troubleshooting

13. Front passenger's side: Locate the selectable energy absorption device connector (B) on the floor wire harness. Do not disconnect the selectable energy absorption device connector.

Supplemental Restraint System - Testing & Troubleshooting

Driver's Seat Belt Outer Lap Tensioner

14. Remove the B-pillar lower trim - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag).

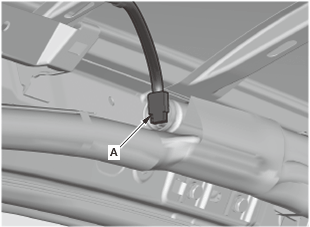

15. Disconnect the connector (A).

Supplemental Restraint System - Testing & TroubleshootingSupplemental Restraint System - Testing & Troubleshooting

16. Cut off each connector and strip the ends of the wires. To prevent inflators from being deployed unexpectedly, twist each pair of wires coming from each inflator to have each inflator short-circuited

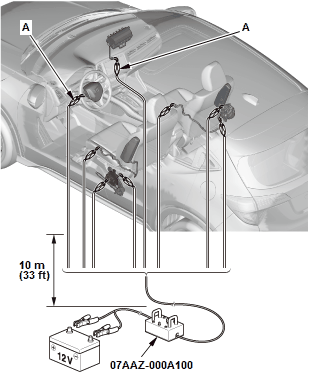

17. Select one pair of wires and untwist the wires. Clip an alligator clip (A) to each end of the wires, so that the inflator is ready to be deployed.

NOTE:

  • Place the deployment tool at least 10 m (33 ft) away from the vehicle.
  • Since the driver's and front passenger's airbag have dual inflators, make sure to twist the correct pair of wires to have each inflator short-circuited.

18. Connect a 12 volt battery to the tool.

NOTE: If the LED light on the tool comes on, the component is ready to be deployed.

19. Push the tool's deployment switch.

The airbags and tensioners should deploy (deployment is both highly audible and visible: A loud noise and rapid inflation of the bag, followed by slow deflation).

  • If the components deploy and the green light on the tool comes on, continue with this procedure.
  • If a component does not deploy, and the green light comes on, its igniter is defective. Go to Disposal of Damaged Components.
  • During deployment, the airbags can become hot enough to burn you. Wait for 30 minutes after deployment before touching the airbags.

Supplemental Restraint System - Testing & Troubleshooting

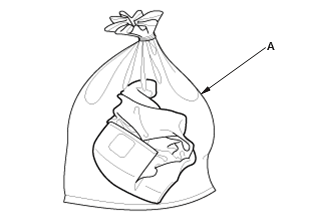

20. Dispose of the complete airbag or tensioner. No part of it can be reused. Place it in a sturdy plastic bag (A), and seal it securely. Dispose of the deployed airbag according to your local regulations.

Supplemental Restraint System - Testing & Troubleshooting

Deploying Components Out of the Vehicle

If an intact airbag or tensioner has been removed from a scrapped vehicle, or has been found defective or damaged during transit, storage, or service, it should be deployed as follows:

Supplemental Restraint System - Testing & Troubleshooting

1. Confirm that the deployment tool is functioning properly by following the check procedure Deploying Airbags in the Vehicle on the tool label

2. Position the airbag face up, outdoors, on flat ground, at least 10 m (33 ft) from any obstacles or people

3. Cut off each connector and strip the ends of the wires. To prevent inflators from being deployed unexpectedly, twist each pair of wires coming from each inflator to have each inflator short-circuited

4. Select one pair of wires and untwist the wires. Clip an alligator clip to each end of the wires, so that the inflator is ready to be deployed.

NOTE: Since the driver's and front passenger's airbag have dual inflators, make sure to twist the correct pair of wires to have each inflator short-circuited

5. Connect a 12 volt battery to the tool.

  • If the green light on the tool comes on, the igniter circuit is defective and cannot deploy the component. Go to Disposal of Damaged Components.
  • If the red light on the tool comes on, the component is ready to be deployed.

6. Push the tool's deployment switch. The airbags and tensioners should deploy (deployment is both highly audible and visible: A loud noise and rapid inflation of the bag, followed by slow deflation).

  • If the components deploy and the green light on the tool comes on, continue with this procedure.
  • If a component does not deploy, and the green light comes on, its igniter is defective. Go to Disposal of Damaged Components.

    During deployment, the airbags can become hot enough to burn you. Wait for 30 minutes after deployment before touching the airbags.

7. Dispose of the complete airbag or tensioner. No part of it can be reused. Place it in a sturdy plastic bag (A), and seal it securely. Dispose of the deployed airbag according to your local regulations.

Disposal of Damaged Components

1. If installed in a vehicle, follow the removal procedure for the driver's airbag, the front passenger's airbag, the side airbag, the side curtain airbag, driver's seat belt outer lap tensioner, and the front seat belt tensioner.

2. In all cases, make a short circuit by cutting, stripping, and twisting together the two inflator wires.

NOTE: The driver's and front passenger's airbags have dual inflators. The like color wires go to the individual inflators. Twist the like colored wires together.

3. Package the component in exactly the same packaging that the new replacement part came in.

4. Mark the outside of the box DAMAGED AIRBAG NOT DEPLOYED, DAMAGED SIDE AIRBAG NOT DEPLOYED, DAMAGED SIDE CURTAIN AIRBAG NOT DEPLOYED, DAMAGED DRIVER'S SEAT BELT OUTER LAP TENSIONER NOT DEPLOYED, or DAMAGED SEAT BELT TENSIONER NOT DEPLOYED so it does not get confused with your parts stock.

5. Contact your Honda District Parts and Service Manager for instructions on how and where to return it for disposal.

Deployment Tool Check

1. Connect the yellow clips to both switch protector handles on the tool

2. Then connect the red lead to the positive 12 volt battery post and the black lead to the negative 12 volt battery post

3. Push the operation switch: The green light should come on, indicating that the tool is operating properly and is ready for use. If the red light stays on, the tool is faulty, and another one must be used for the procedure

4. Disconnect the tool clips and connectors from the protector handles and the 12 volt battery.
