Honda HR-V: Inputs and Outputs
SRS UNIT CONNECTOR FOR INPUTS AND OUTPUTS (KA/KC)
Connector Index
SRS unit connector A (39P)
SRS unit connector B (39P)

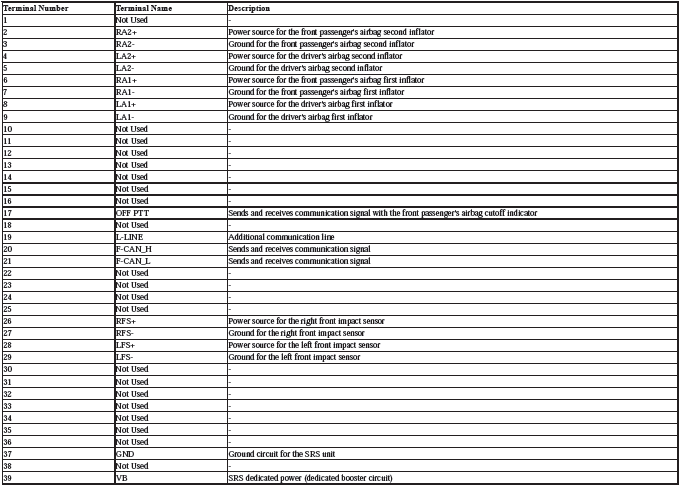

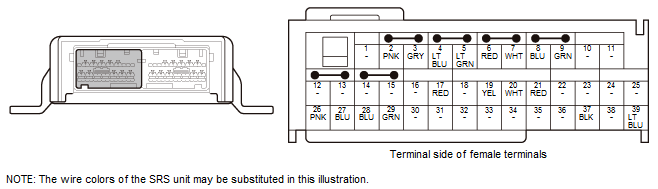

SRS Unit Inputs and Outputs at Connector A (39P)
.png)
.png)

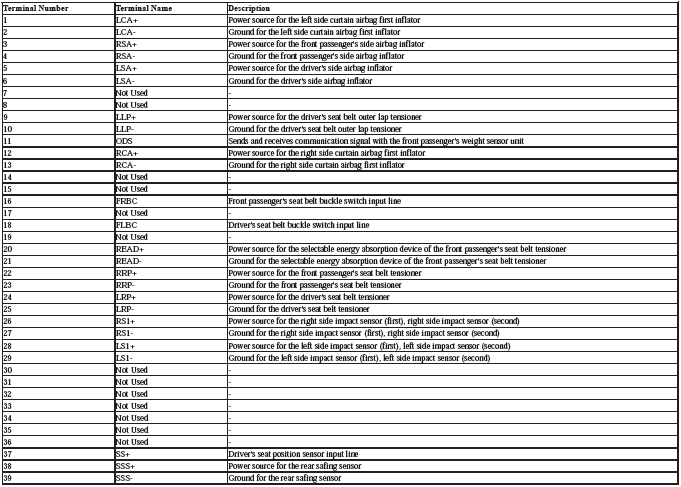

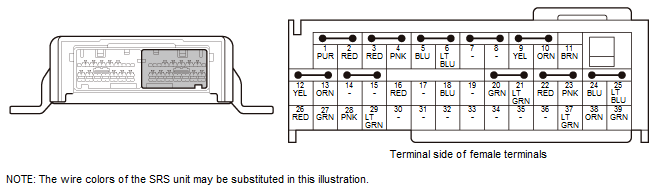

SRS Unit Inputs and Outputs at Connector B (39P)
.png)
.png)
COMPONENT LOCATION INDEX

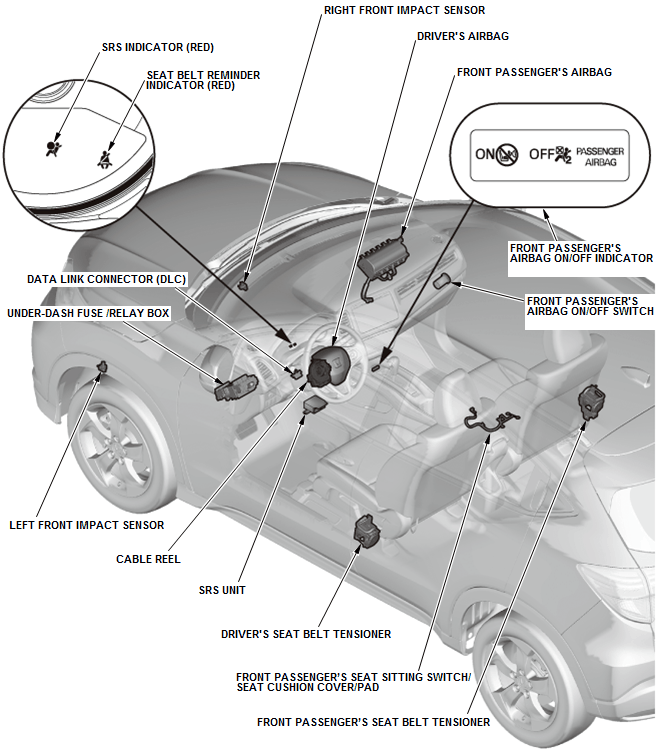

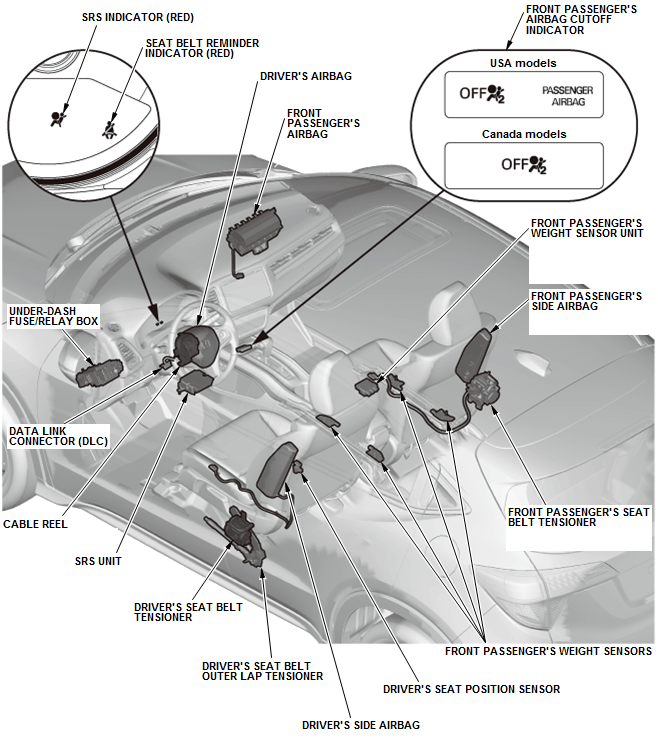

SRS COMPONENT LOCATION INDEX (KA/KC)
.png)
.png)

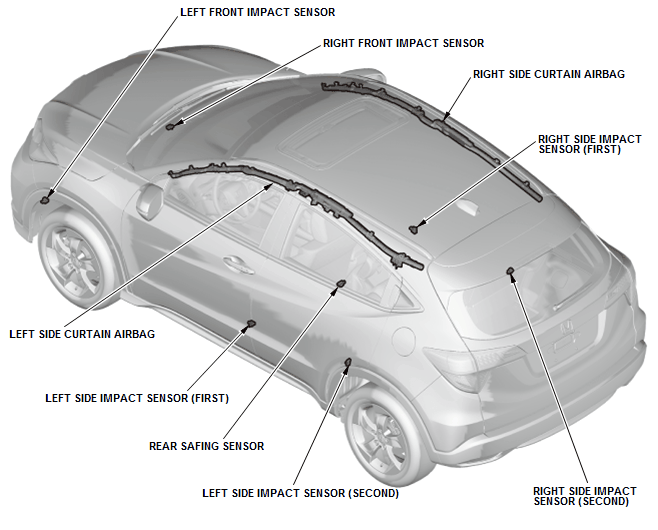

SRS COMPONENT LOCATION INDEX (KA/KC)
.png)
