1. Driver's Door Panel - Remove
2. Driver's Door Key Cylinder Switch - Test
.png)
.png)

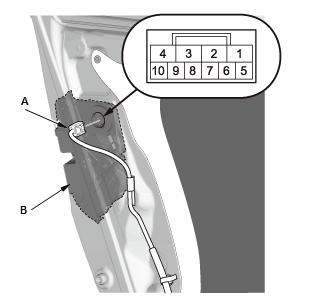

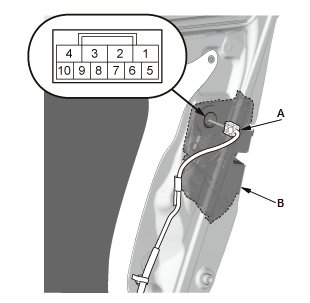

- Disconnect the connector (A).

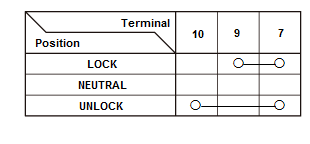

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
DOOR LOCK ACTUATOR TEST
Test
Front Door
1. Front Door Panel - Remove
2. Front Door Lock Actuator - Test
Driver's door
.png)
Front passenger's door
.png)
.png)

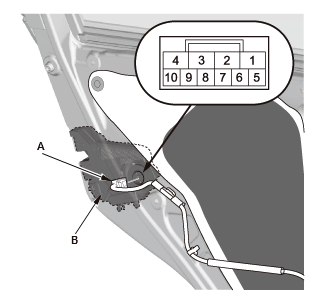

- Disconnect the connector (A).
- Check the actuator operation by connecting 12 volt battery
power and ground according to the table.
NOTE: To prevent damage to the actuator, apply 12 volt battery power only momentarily.
- If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Rear Door
4. Rear Door Panel - Remove
5. Rear Door Lock Actuator - Test
.png)
.png)
- Disconnect the connector (A).
- Check the actuator operation by connecting 12 volt battery power and
ground according to the table.
NOTE: To prevent damage to the actuator, apply 12 volt battery power only momentarily.
- If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch (B).
6. All Removed Parts - Install
- Install the parts in the reverse order of removal.
