Test
Driver's door
1. Driver's Door Panel - Remove
2. Driver's Door Lock Knob Switch - Test
.png)
.png)

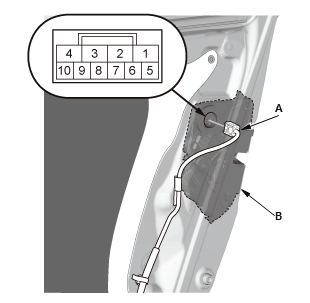

- Disconnect the connector (A).

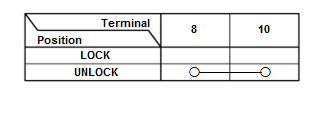

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the driver's door lock knob switch is faulty; replace the driver's door latch (B).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Front passenger's door
4. Front passenger's Door Panel - Remove
5. Front passenger's Door Lock Knob Switch - Test
.png)
.png)

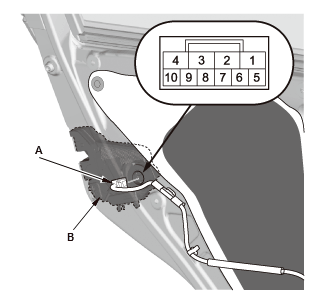

- Disconnect the connector (A).

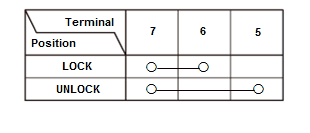

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the front passenger's door lock knob switch is faulty; replace the front passenger's door latch (B).
6. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Rear Door
7. Rear Door Panel - Remove
8. Rear Door Lock Knob Switch - Test
.png)
Left and Right Rear Door
.png)

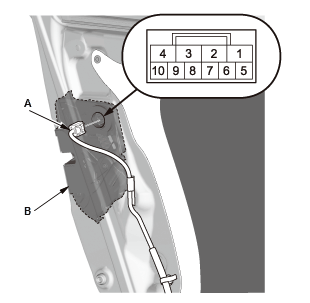

- Disconnect the connector (A).
- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch (B).
9. All Removed Parts - Install
- Install the parts in the reverse order of removal.
DOOR OUTER HANDLE LOCK SWITCH TEST
Test
1. Front Door Panel - Remove
2. Front Door Outer Handle Lock Switch - Test
.png)
.png)
- Remove the front door plastic cover as needed.

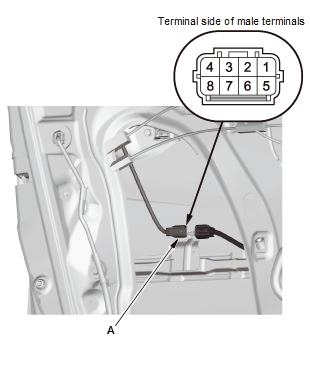

- Disconnect the connector (A).

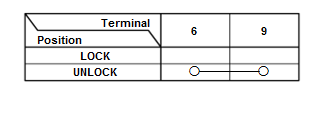

- Check for continuity between the terminals in each switch position according to the table.
- If the continuity is not as specified, the front door outer handle lock switch is faulty; replace the front door outer handle.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
