Honda HR-V: Door Subseal Removal and Installation
Removal & Installation

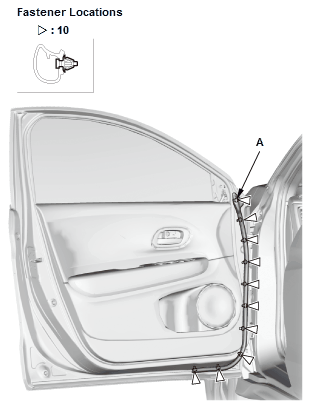

Front Door Subseal
1. Front Door Subseal - Remove
.png)
- Remove the front door subseal (A).
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.

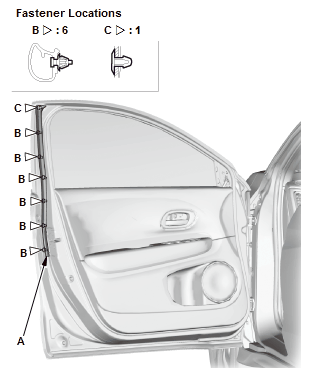

Front Door Center Subseal
3. Front Door Center Subseal - Remove
.png)
- Remove the front door center subseal (A).
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Roof Subseal
5. Rear Pillar Corner Trim - Remove

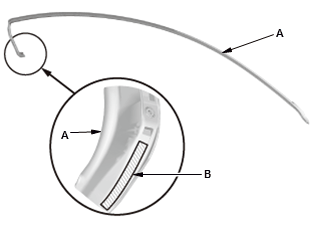

6. Roof Subseal - Remove
.png)
- Remove the roof subseal (A).
NOTE : Remove the remaining double-sided
adhesive tape (B) from the body, then clean the body surface with a sponge
dampened with isopropyl alcohol.
7. All Removed Parts - Install
.png)
- Install the parts in the reverse order of removal.
NOTE :
- If you are reusing the original roof subseal (A), replace the
double-sided adhesive tape (B).
- Push to the double-sided adhesive tapes to the body.
- Install new double-sided adhesive tapes to the roof subseal as
shown.
Thickness 0.8 mm (0.031 in)
Width 6 mm (0.24 in)
Length 50 mm (1.97 in)

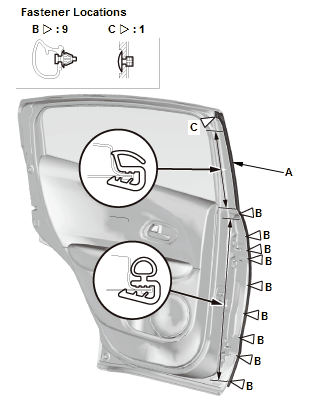

Rear Door Center Subseal
8. Rear Door Center Subseal - Remove
.png)
- Remove the rear door center subseal (A).
9. All Removed Parts - Install
- Install the parts in the reverse order of removal.

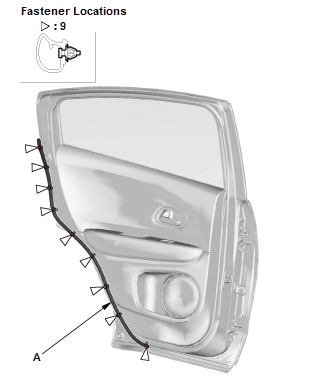

Rear Door Subseal
10. Rear Door Subseal - Remove
.png)
- Remove the rear door subseal (A).
11. All Removed Parts - Install
- Install the parts in the reverse order of removal.
