Honda HR-V: Front Door Checker Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Doors - Service Information / Front Door Checker Removal and Installation

Removal & Installation

1. Front Door Panel - Remove

2. Front Door Plastic Cover - Remove

Doors - Service Information

  1. Remove the plug cap (A)
  2. Disconnect the connector (B)
  3. Remove the harness clips (C)
  4. Remove the front door plastic cover (D) as needed.

    NOTE : If the plastic cover is damaged or torn, replace it with a new one.

3. Front Door Checker - Remove

Doors - Service Information

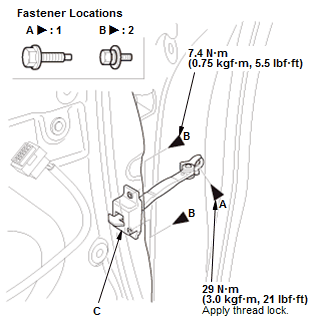

Fig. 1: Front Door Checker With Torque Specifications

  1. While supporting the front door, remove the bolts (A, B)
  2. Remove the front door checker (C).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

NOTE : Apply medium strength liquid thread lock to the door checker mounting bolt before installation.

FRONT DOOR GLASS INNER WEATHERSTRIP REMOVAL AND INSTALLATION

Removal & Installation

1. Front Door Panel - Remove

2. Front Door Glass Inner Weatherstrip - Remove

Doors - Service Information

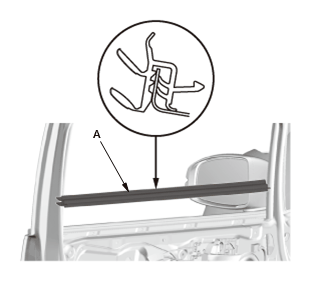

  1. Remove the front door glass inner weatherstrip (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

FRONT DOOR GLASS OUTER WEATHERSTRIP REMOVAL AND INSTALLATION

Removal & Installation

1. Front Door Panel - Remove

2. Front Door Plastic Cover - Remove

Doors - Service Information

  1. Remove the plug caps (A)
  2. Remove the front door plastic cover (B) as needed.

    NOTE : If the plastic cover is damaged or torn, replace it with a new one.

3. Front Door Glass Outer Weatherstrip - Remove

Doors - Service Information

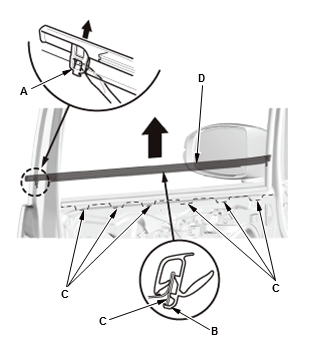

  1. Release the hook (A) with a flat-tip screwdriver from inside of the door
  2. Release the hooks (B) from the flanges (C) on the door
  3. Remove the front door glass outer weatherstrip (D).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

    READ NEXT:

     Front Door Glass Removal and Installation

    Removal & Installation 1. Front Door Panel - Remove 2. Front Door Plastic Cover - Remove Remove the plug caps (A) Disconnect the connector (B) Remove the harness clips (C) Remove the front d

     Front Door Lower Seal Removal and Installation

    Removal & Installation 1. Front Door Lower Seal - Remove 2. All Removed Parts - Install Install the parts in the reverse order of removal. FRONT DOOR OUTER HANDLE REMOVAL AND INSTALLATION Remo

     Front Door Panel Removal and Installation

    Removal & Installation 1. Mirror Mount Cover - Remove Remove the mirror mount cover (A). 2. Front Door Panel - Remove Remove the cap (A) by tilting down the hook (B) with a flat-tip screwd
