Honda HR-V: DTC B0002-11

Special Tools Required

  • SRS Inflator Simulator 07SAZ-TB4011A
  • SRS Simulator Lead J 070AZ-SNAA100

NOTE:

  • Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number, and that they were properly installed.
  • Before doing this troubleshooting procedure, review SRS Precautions and Procedures, General Troubleshooting Information, and 12 Volt Battery Terminal Disconnection and Reconnection.
  • Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software, and retest.

Supplemental Restraint System - Diagnostics

DTC (SRS)

1. Problem verification:

  1. Clear the DTCs with the HDS.

Clear DTCs

  1. Turn the vehicle to the ON mode, then wait for 10 seconds.
  2. Check for DTCs with the HDS.

Supplemental Restraint System - Diagnostics

Is DTC B0002-11 indicated?

YES

The failure is duplicated. Go to step 2.

NO

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

2. Driver's airbag inflator check:

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
  3. Remove the driver's airbag.
  4. Disconnect the following connector.

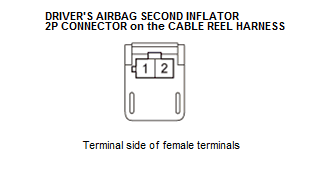

Driver's airbag second inflator 2P connector (on the cable reel harness)

NOTE: Make sure to work with the driver's airbag second inflator 2P connector (A) that has a guide tab (B) on the left side of the No. 1 terminal as shown.

Supplemental Restraint System - Diagnostics

  1. Connect terminals A and B with a jumper wire.

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

  1. Reconnect the negative cable to the 12 volt battery.
  2. Clear the DTCs with the HDS.

Clear DTCs

  1. Turn the vehicle to the ON mode, then wait for 10 seconds.
  2. Check for DTCs with the HDS.

Supplemental Restraint System - Diagnostics

Is DTC B0002-11 indicated?

YES

Go to step 3.

NO

Short to ground in the driver's airbag second inflator; replace the driver's airbag, then clear the DTC.

3. Cable reel check:

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
  3. Remove the jumper wire from the driver's airbag second inflator 2P connector on the cable reel harness.
  4. Remove the column covers.
  5. Disconnect cable reel connector B (4P) on the dashboard wire harness.

Supplemental Restraint System - Diagnostics

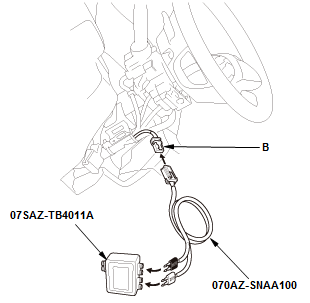

  1. Connect the terminals of SRS simulator lead J to the SRS inflator simulator (2 Ω connectors), then connect SRS simulator lead J to cable reel connector B (4P) on the dashboard wire harness.
  2. Reconnect the negative cable to the 12 volt battery.
  3. Clear the DTCs with the HDS.

Clear DTCs

  1. Turn the vehicle to the ON mode, then wait for 10 seconds.
  2. Check for DTCs with the HDS.

Supplemental Restraint System - Diagnostics

Is DTC B0002-11 indicated?

YES

Go to step 4.

NO

Short to ground in the cable reel; replace the cable reel, then clear the DTC.

4. Shorted wire check (LA2+, LA2- lines):

  1. Turn the vehicle to the OFF (LOCK) mode.
  2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.
  3. Disconnect the following connector.

SRS unit connector A (39P)

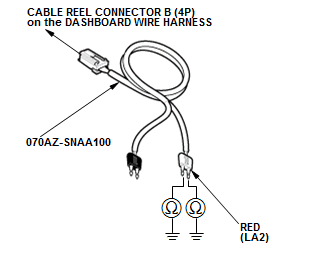

  1. Disconnect the SRS inflator simulator from SRS simulator lead J. Do not disconnect SRS simulator lead J from cable reel connector B (4P) on the dashboard wire harness.

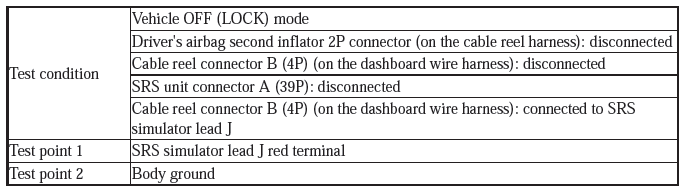

  2. Measure the resistance between test points 1 and 2.

Supplemental Restraint System - Diagnostics

Supplemental Restraint System - Diagnostics

Is there an open circuit?

YES

The LA2+ and LA2- wires are OK. Faulty SRS unit or poor connection at SRS unit connector A (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit. If the DTC does not clear, replace the dashboard wire harness.

NO

Short to ground in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
