Honda HR-V: DTC B12E4 Electric Steering Lock High Level Failure of MTRCUT2
.png)
DTC (Power Control Unit)
NOTE:
- If you are troubleshooting multiple DTCs, be sure to follow the
instructions in B-CAN System Diagnosis Test Mode A - Refer to: Body
Electrical Troubleshooting - B-CAN System Diagnosis Test Mode A - Initial
Communication and DTC Checks,.
- Before troubleshooting, make sure the No. C32 (15 A) and No. C3 (10 A)
fuses in the under-dash
fuse/relay box are OK.
1. Problem verification:
- Clear the DTCs with the HDS.
Clear DTCs
- Do this procedure 10 times: Turn the vehicle to the OFF (LOCK) mode,
ACCESSORY mode, ON
mode, and OFF (LOCK) mode.
- Check for DTCs with the HDS.
.png)
Is DTC B12E4 indicated?
YES
Go to step 2.
NO
Intermittent failure, the system is OK at this time. Check for loose or poor
connections.
2. Open wire check (GND line):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connector.

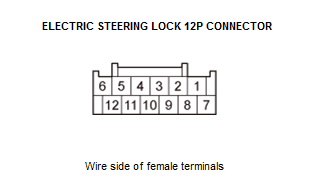

Electric steering lock 12P connector
- Check for continuity between test points 1 and 2.
.png)
.png)
Is there continuity?
YES
The GND wire is OK. Go to step 3.
NO
Repair an open or high resistance in the ground wire or poor ground (G401).
3. Open wire check (MTR CUT2 (IG1) line):
- Disconnect the following connector.
Keyless access control unit connector B (36P)

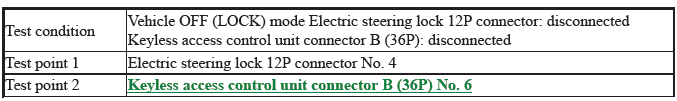

- Check for continuity between test points 1 and 2.
.png)
.png)
Is there continuity?
YES
The MTR CUT2 (IG1) wire is OK. Faulty electric steering lock, replace the
steering lock. If the DTC is still present, replace the keyless access control
unit.
NO
Repair an open or high resistance in the wire.
