Honda HR-V: DTC Troubleshooting 94-11: Back-Up Light Switch Circuit Open or Short
NOTE: Before you troubleshoot, review the general troubleshooting
information.
![VSA System - Diagnostics](images/books/1097/index 252(4).png)
1. Problem verification:
- Turn the vehicle to the ON mode.
- Clear the DTC with the HDS.
- Shift the shift lever to the reverse position, and then return the shift
lever to the neutral position.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
![VSA System - Diagnostics](images/books/1097/index 253(4).png)
Is DTC 94-11 indicated?
YES
The failure is duplicated. Go to step 2.
NO
Intermittent failure, the system is OK at this time. Refer to intermittent
failures troubleshooting.
2. Determine possible failure area (RVS SW (EPB) line):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connector.
Back-up light switch 4P connector
- Turn the vehicle to the ON mode.

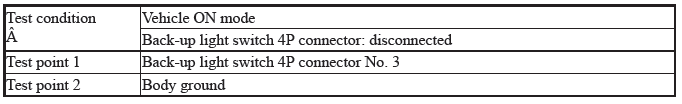

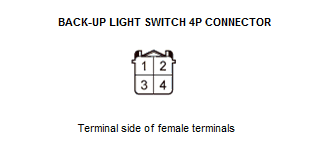

- Measure the voltage between test points 1 and 2.
![VSA System - Diagnostics](images/books/1097/index 254(4).png)
![VSA System - Diagnostics](images/books/1097/index 255(4).png)
Is there about 5 V?
YES
The RVS SW (EPB) wire is OK. Go to step 3.
NO
Go to step 4.
3. Open wire check (PG1 line):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connector.
Back-up light switch 4P connector
- Measure the voltage between test points 1 and 2.
![VSA System - Diagnostics](images/books/1097/index 256(4).png)
![VSA System - Diagnostics](images/books/1097/index 257(4).png)
Is there continuity?
YES
Replace the back-up light switch.
NO
Repair an open in the PG1 wire between the Back-up light switch and the body
ground (G101).
4. Shorted wire check (RVS SW (EPB) line):
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connector.
Back-up light switch 4P connector
VSA modulator-control unit 21P connector

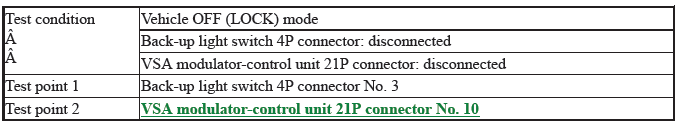

3. Measure the voltage between test points 1 and 2.
![VSA System - Diagnostics](images/books/1097/index 258(4).png)
![VSA System - Diagnostics](images/books/1097/index 259(3).png)
Is there continuity?
YES
Repair a short to ground in the RVS SW (EPB) wire between the Back-up light
switch and the VSA
modulator-control unit.
NO
Repair an open in the RVS SW (EPB) wire between the Back-up light switch and
the VSA modulator-control
unit.
DTC TROUBLESHOOTING 95-11: CLUTCH PEDAL STROKE SENSOR FAILURE
NOTE: Before you troubleshoot, review the general troubleshooting
information.
![VSA System - Diagnostics](images/books/1097/index 260(3).png)
1. Problem verification:
- Turn the vehicle to the ON mode.
- Clear the DTC with the HDS.
- Turn the vehicle to the OFF (LOCK) mode, then to the ON mode.
- Check for DTCs with the HDS.
![VSA System - Diagnostics](images/books/1097/index 261(3).png)
Is DTC 95-11 indicated?
YES
The failure is duplicated. Go to electrical parking brake system
troubleshooting. ?
NO
Intermittent failure, the system is OK at this time. Refer to intermittent
failures troubleshooting.
