Honda HR-V: Air Mix Control Motor/Mode Control Motor/Recirculation Control Motor Removal
and Installation
Removal & Installation
SRS components are located near the mode control motor and the recirculation
control motor. Review the SRS
component locations - Refer to: SRS Component Location Index (KA/KC), and the
precautions and
procedures before doing repairs or service.
NOTE:
- Select the MAX COOL position before removing the air mix control motor.
- Select the VENT position before removing the mode control motor.

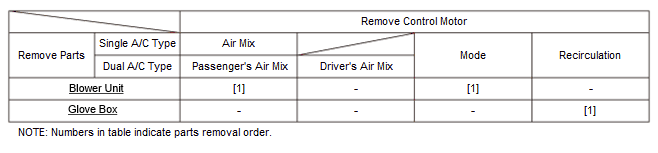

1. Part Removal For Motor Access
.png)

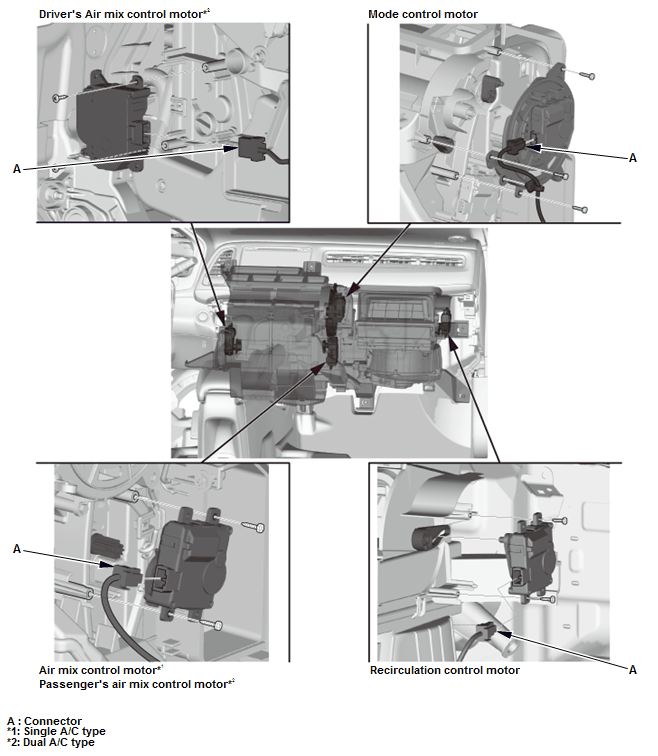

2. Motors Location
.png)
3. All Removed Parts - Install
Air mix control motor/Passenger's air mix
control motor
.png)
Driver's Air Mix Control Motor
.png)
Mode control motor
.png)
- Install the parts in the reverse order of removal.
NOTE:

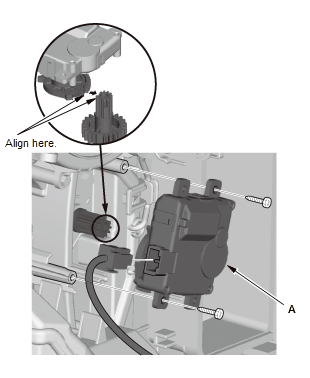

- When you install the air mix control motor or
passenger's air mix control motor (A), align the
control motor with the gear, then install control
motor.

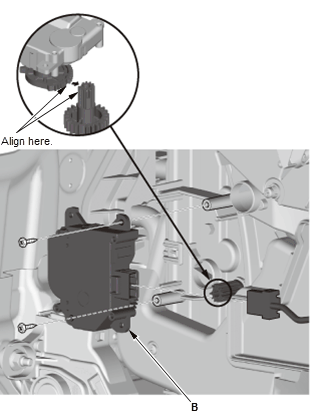

- When you install the driver's air mix control motor
(B), align the control motor with the gear, then
install control motor.

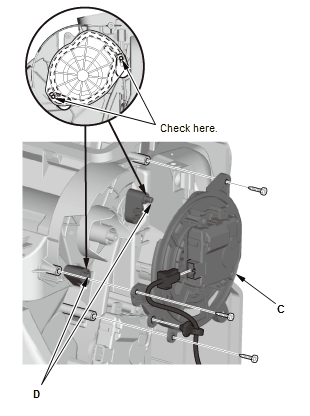

- When you install the mode control motor (C), align
the position of the damper lever pins (D), then
install the control motor.
