Honda HR-V: DTC Troubleshooting Index
Honda HR-V (2015-2021) Service Manual / Steering / Steering System - Testing & Troubleshooting / DTC Troubleshooting Index

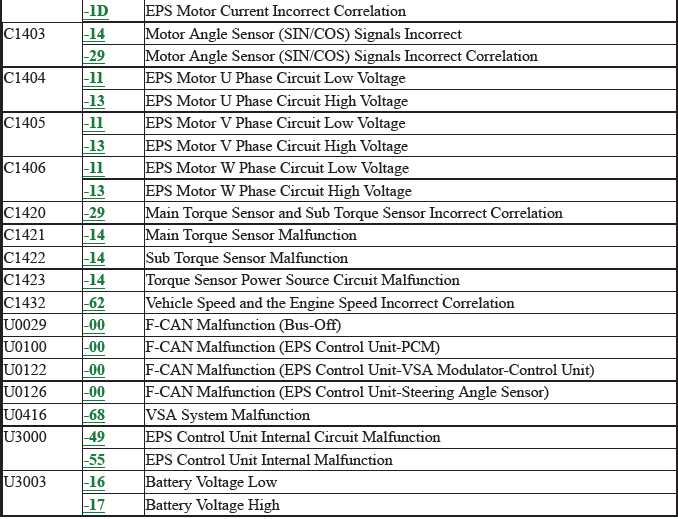

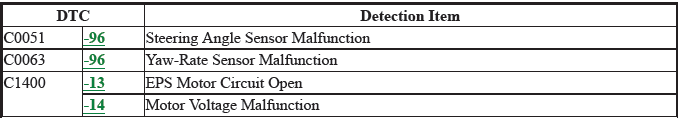

EPS DTC TROUBLESHOOTING INDEX
.png)
.png)
TESTING
EPS CONTROL UNIT UPDATE
Special Tools Required
MVCI unit with the latest control module (CM) update software installed
.png)
1. EPS Control Unit - Update
NOTE: Check any official service website for more information about updating the MVCI and control units
READ NEXT:
EPS Symptom Troubleshooting - EPS Indicator Does Not Go OFF
NOTE: The indicator comes on when the reprogramming fails.
1. Problem verification:
Turn the vehicle to the ON mode.
Check the EPS indicator.
Does the EPS indicator come on, then go off?
YES
Inter
EPS Symptom Troubleshooting - Steering Pull
Steering pull
1. EPS system check:
Turn the vehicle to the OFF (LOCK) mode.
Disconnect the following connectors.
EPS control unit connector B (6P)
EPS control unit connector C (2P)
Test-drive th
