Honda HR-V: EPS Symptom Troubleshooting - Steering Pull
Steering pull
1. EPS system check:
- Turn the vehicle to the OFF (LOCK) mode.
- Disconnect the following connectors.
EPS control unit connector B (6P)
EPS control unit connector C (2P)
- Test-drive the vehicle.
Is there steering pull?
YES
Make sure the suspension is not modified, and adjust the wheel alignment. Also check the tire pressure, tire size, and for abnormal tread wear.
NO
Replace the steering column/EPS control unit.

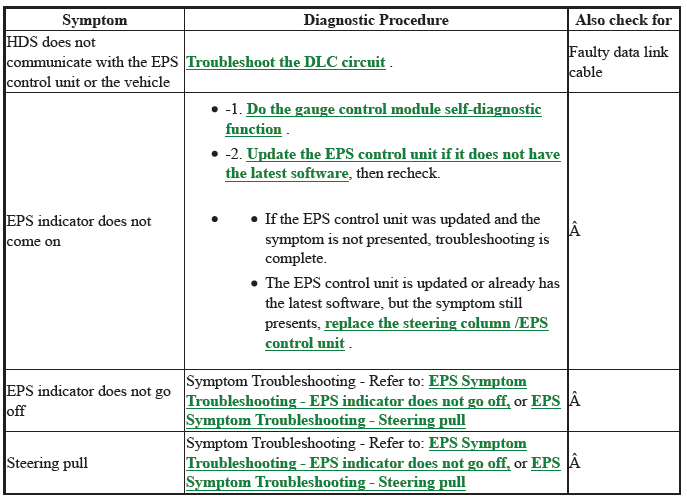

EPS SYMPTOM TROUBLESHOOTING INDEX
When the vehicle has one of these symptoms, check for a diagnostic trouble code (DTC) with the HDS. If there is no DTC, do the diagnostic procedure for the symptom, in the sequence listed, until you find the cause.
.png)
CIRCUIT DIAGRAM
EPS CIRCUIT DIAGRAM
.png)

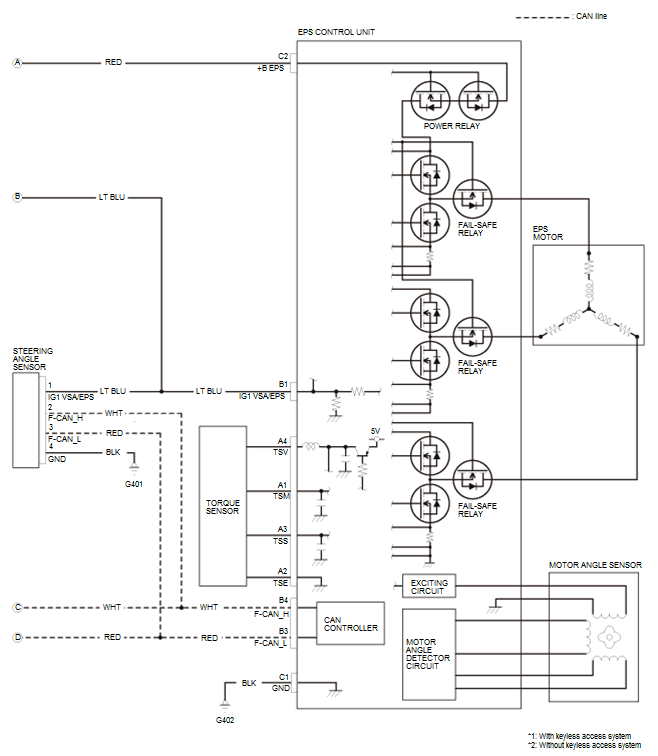

Fig. 3: EPS Circuit Diagram (1 Of 2)
.png)

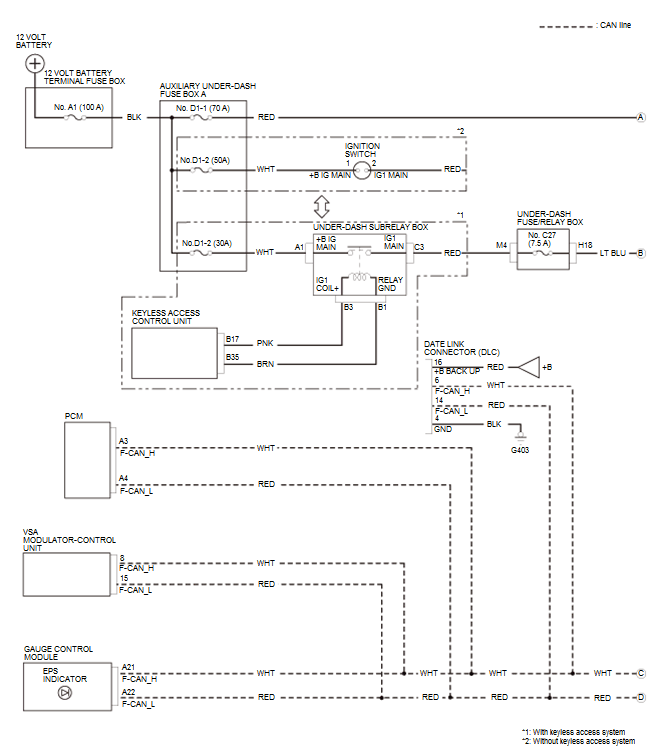

Fig. 4: EPS Circuit Diagram (2 Of 2)
EPS WIRING AND CONNECTORS
EPS CONTROL UNIT CONNECTOR FOR INPUTS AND OUTPUTS
Connector Index

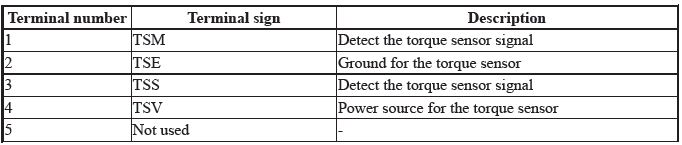

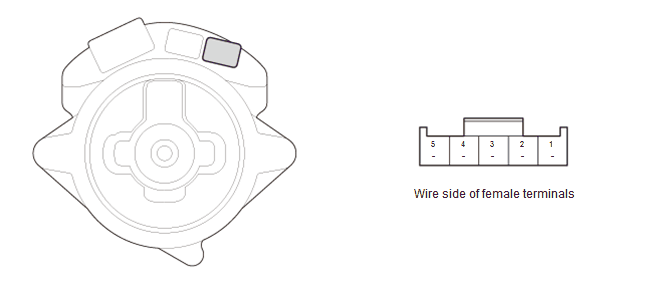

EPS Control Unit Connector A (5P)

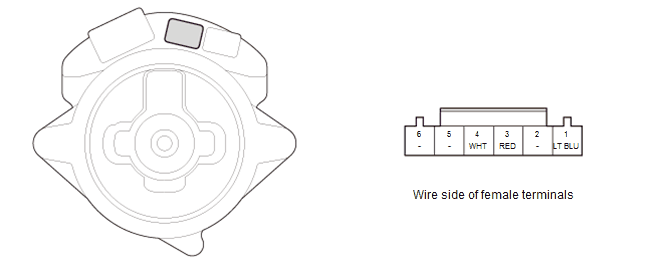

EPS Control Unit Connector B (6P)

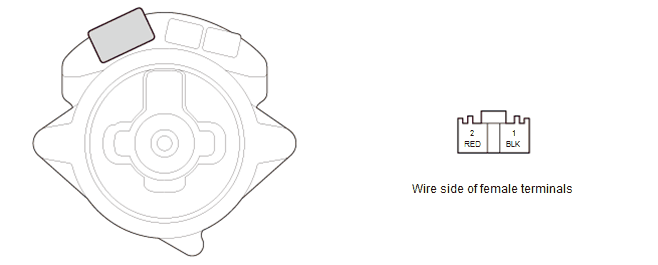

EPS Control Unit Connector C (2P)
.png)
.png)
.png)
.png)
.png)
.png)
