Honda HR-V: Forward Collision Warning (FCW) Symptom Troubleshooting - FCW Indicator (Amber) Does Not Blink When The System Warns, FCW Warning Buzzer Does Not Sound When The System Warns
1. FCW indicator and warning buzzer check:
- Select FCW/LDW/High Beam Support/Traffic Sign Recognition System from the DRIVING SUPPORT menu with the HDS, and enter the FUNCTION TEST.
- Select FCW drive and Indicator drive with the HDS.
FCW drive
Indicator drive
Does the FCW indicator blink?, and does the FCW warning buzzer sound?
YES
Intermittent failure, the system is OK at this time.
NO
Do the gauge control module self-diagnostic function.
Troubleshooting Start
FORWARD COLLISION WARNING (FCW) SYMPTOM TROUBLESHOOTING - FCW INDICATOR (AMBER) DOES NOT COME ON
NOTE: Before you troubleshoot, check the FCW DTCs with the HDS. If DTCs are stored, do the indicated DTC's troubleshooting - Refer to: How to Troubleshoot the Forward Collision Warning (FCW) (NA), or How to Troubleshoot the Lane Departure Warning (LDW) (NA).
1. Problem verification:
- Turn the vehicle to the ON mode.
Does the FCW indicator come on?
YES
Intermittent failure, the system is OK.
NO
Do the gauge control module self-diagnostic function.
Troubleshooting Start
FORWARD COLLISION WARNING (FCW) SYMPTOM TROUBLESHOOTING - FCW INDICATOR (AMBER) DOES NOT GO OFF
NOTE: Before you troubleshoot, check the FCW DTCs with the HDS. If DTCs are stored, do the indicated DTC's troubleshooting - Refer to: How to Troubleshoot the Forward Collision Warning (FCW) (NA), or How to Troubleshoot the Lane Departure Warning (LDW) (NA).
1. Problem verification:
- Turn the vehicle to the ON mode.
- Wait for about 6 seconds.
Does the FCW indicator go off?
YES
Intermittent failure, the system is OK.
NO
Go to step 2.
2. Vehicle settings check:
- Check the FCW setup on the gauge control module.
Is the FCW setup off?
YES
The system is OK.
NO
Do the gauge control module self-diagnostic function.
Troubleshooting Start

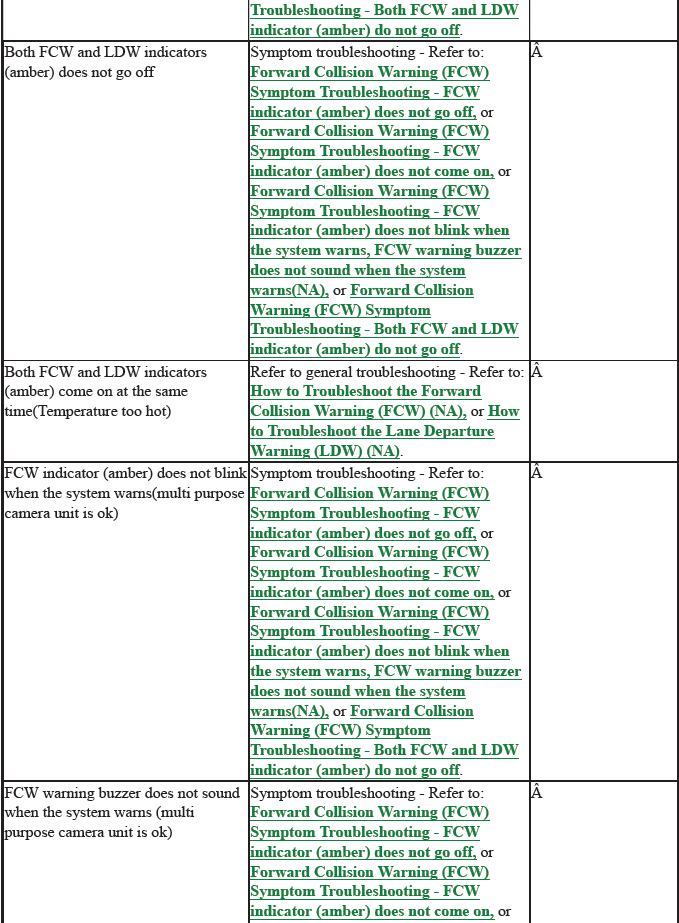

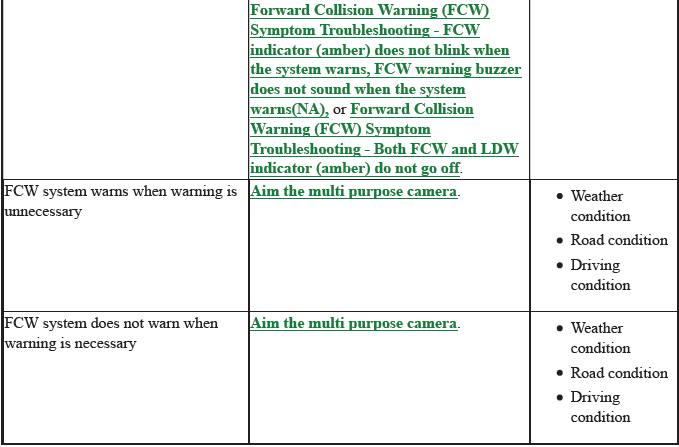

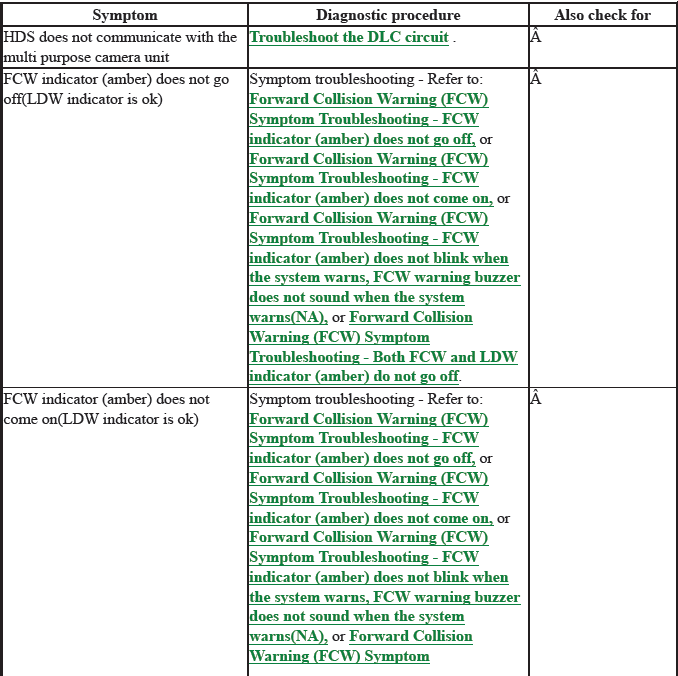

FORWARD COLLISION WARNING (FCW) SYMPTOM TROUBLESHOOTING INDEX (FORWARD COLLISION WARNING (FCW)
