Honda HR-V: Moonroof Drain Channel Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Moonroof - Service Information / Moonroof Drain Channel Removal and Installation

Removal & Installation

1. Moonroof Glass - Remove

2. Drain Channel - Remove

Moonroof - Service Information

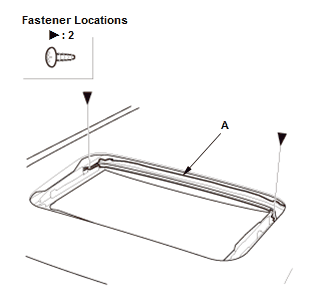

  1. Remove the screws securing the drain channel (A).

Moonroof - Service Information

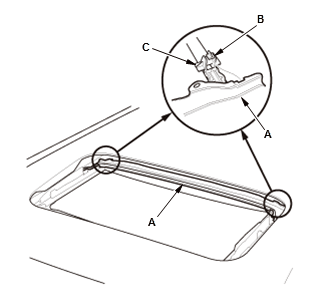

  1. Release the drain channel (A) from both hooks (B) of the drain channel slider (C).

Moonroof - Service Information

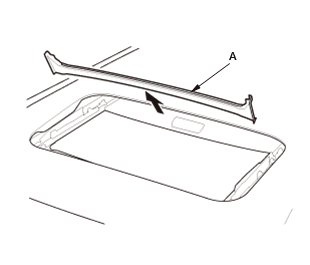

  1. Remove the drain channel (A).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

MOONROOF DRAIN CHANNEL SLIDER AND CABLE ASSEMBLY REMOVAL AND INSTALLATION

Removal & Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Moonroof Motor - Remove

2. Drain Channel - Remove

3. Moonroof Frame - Remove

4. Drain Channel Slider and Cable Assembly - Remove

Moonroof - Service Information

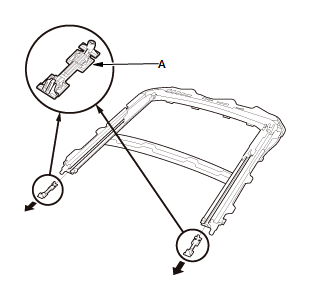

  1. Remove the drain channel sliders (A).

Moonroof - Service Information

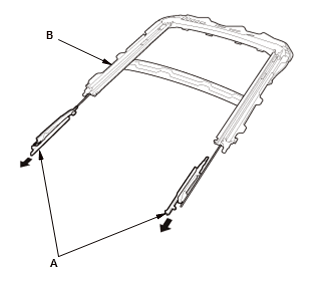

  1. Slide the moonroof link assembly (A) back from the frame (B), then remove it.

5. All Removed Parts - Install

Moonroof - Service Information

  1. Install the parts in the reverse order of removal.

    NOTE :

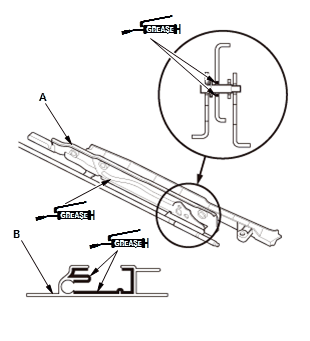

    • Apply multipurpose grease to the glass brackets (A) and the guide rail area of the frame (B) indicated by the arrows.
    • Before reinstalling the motor, make sure both link lifters are parallel, and in the tilt up position.

6. Moonroof Glass Position - Adjust

7. Moonroof Control Unit - Reset

8. Water Leaks - Check
