Honda HR-V: Side Airbag Removal and Installation
Removal and Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
NOTE:
- If replacing the side airbag after deployment, refer to Component
Replacement/Inspection After
Deployment for a complete list of other parts that must also be replaced.
- When troubleshooting, do not remove the front seat. Disconnect only the
side airbag inflator connector
from under the front seat.
1. 12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
2. Front Seat - Remove
3. Side Airbag - Remove
![Supplemental Restraint System - Service Information](images/books/1097/index 181(11).png)

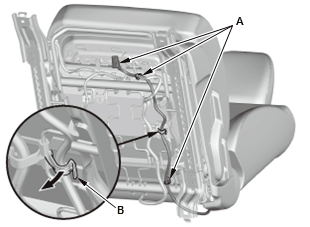

- From under the seat cushion, release the elastic strap from the
seat cushion frame springs.
- Remove the clips (A).
- Bend the hook (B) forward to remove the harness.
- Remove the front seat-back cover/pad.
![Supplemental Restraint System - Service Information](images/books/1097/index 182(10).png)

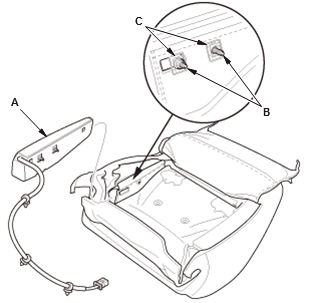

- Remove the side airbag (A).
NOTE: Pull out the protruding parts (B) of the side airbag through the
holes (C) of the bag in the seat-back cover/pad.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE:
- During installation, install the new mounting nut to the specified
torque.
- If the side airbag lid is secured with tape, remove the tape.
- Do not open the lid on the side airbag cover.
- Make sure that the seat-back cover/pad is installed properly.
Improper installation may
prevent proper deployment.
- Be sure to install the harness so that they are not pinched or
interfering with other parts.
5. Seat Operation - Confirm
- Move the front seat and the seat-back through their full ranges of
movement, making sure the harness are not pinched or interfering with other
parts.
6. SRS Operation - Confirm
- Do the 12 volt battery terminal reconnection procedure, turn the vehicle
to the ON mode, and check
that the SRS indicator comes on for about 6 seconds and then goes off.
