Honda HR-V: Front Console Panel Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Interior Trim - Service Information / Front Console Panel Removal and Installation

Removal & Installation

1. Center Console - Remove

2. Glove Box - Remove

3. Driver's Dashboard Lower Cover - Remove

4. Front Console Panel - Remove

Interior Trim - Service Information

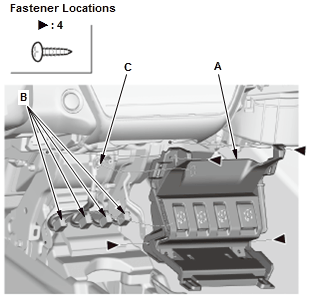

  1. Remove the screws, then remove the front console panel (A)
  2. Disconnect the connectors (B). (for some models)
  3. Remove the harness clip (C).

Interior Trim - Service Information

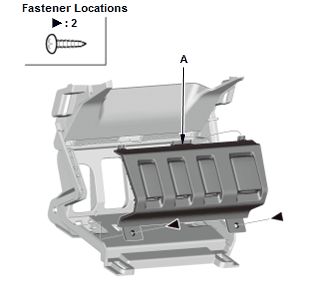

  1. If necessary, remove the front console switch panel (A).

5. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
