Honda HR-V: Rear Safing Sensor Removal and Installation

Honda HR-V (2015-2021) Service Manual / Restraints / Supplemental Restraint System - Service Information / Rear Safing Sensor Removal and Installation

Removal and Installation

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

NOTE: Wait at least 3 minutes before starting work.

2. Center Console Rear Trim - Remove

3. Rear Safing Sensor - Remove

Supplemental Restraint System - Service Information

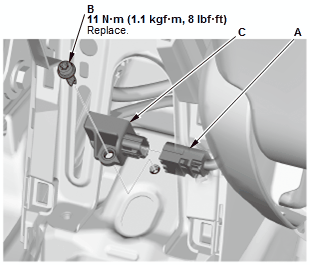

Fig. 6: Rear Safing Sensor With Torque Specifications

  1. Disconnect the connector (A)
  2. Remove the bolt (B), then remove the rear safing sensor (C).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

NOTE:

  • During installation, install the new bolt to the specified torque.
  • Before installing the center console rear trim, make sure the SRS indicator works normally.

5. SRS Operation - Confirm

  1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
