Honda HR-V: Audio Remote Switch Test

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Audio Visual Systems - Testing & Troubleshooting / Testing / Audio Remote Switch Test

Test

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Remove

2. Lower Garnish Assembly - Remove

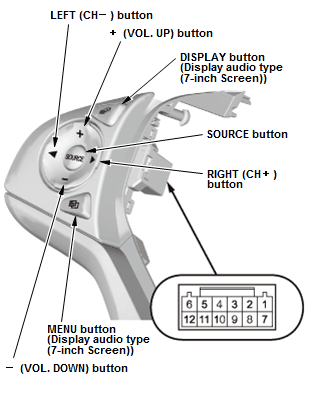

3. Audio Remote Switch - Test

Audio Visual Systems - Testing & Troubleshooting

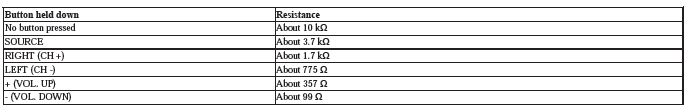

  1. Measure the resistance between the terminals No. 2 and No. 5 in each switch position according to the table.

Audio Visual Systems - Testing & Troubleshooting

  1. Display audio type (7-inch screen): Measure the resistance between the terminals No. 3 and No. 5 in each switch position according to the table.

Display Audio Type (7-inch Screen)

Audio Visual Systems - Testing & Troubleshooting

  1. If the resistance is not as specified, replace the audio remote switch.

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
