Honda HR-V: Front Passenger's Airbag ON/OFF Indicator Removal and Installation
Removal and Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
1. 12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
2. Center Console Switch Trim - Remove

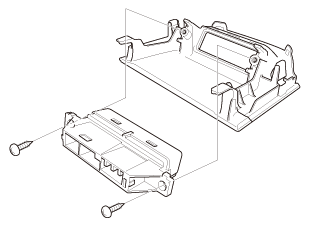

3. Front Passenger's Airbag ON/OFF Indicator - Remove
4. All Removed Parts - Install
- Install the all removed parts in the reverse order of removal.
5. SRS Operation - Confirm
- Do the 12 volt battery terminal reconnection procedure, turn the vehicle
to the ON mode, and check
that the SRS indicator comes on for about 6 seconds and then goes off.
FRONT PASSENGER'S AIRBAG ON/OFF SWITCH REMOVAL AND INSTALLATION
Removal and Installation
SRS components are located in this area. Review the SRS component locations -
Refer to: SRS Component
Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the
precautions and
procedures before doing repairs or service.
1. 12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
2. Dashboard Side Lid - Remove
3. Front Passenger's Airbag ON/OFF Switch - Remove
- Pull out the front passenger's airbag ON/OFF switch (A), while pushing
the
locks (B) on the inside of the front passenger's airbag ON/OFF switch.
4. All Removed Parts - Install
- Install the all removed parts in the reverse order of removal.
5. SRS Operation - Confirm
- Do the 12 volt battery terminal reconnection procedure, turn the vehicle
to the ON mode, and check
that the SRS indicator comes on for about 6 seconds and then goes off.
