Removal & Installation

NOTE : SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

2. Front Seat Recline Cover - Remove

3. Front Seat Cushion Cover/Pad - Remove

Driver's seat

Seats - Service Information

Passenger's seat (KA KC models)

Seats - Service Information

Passenger's seat (KX models)

Seats - Service Information

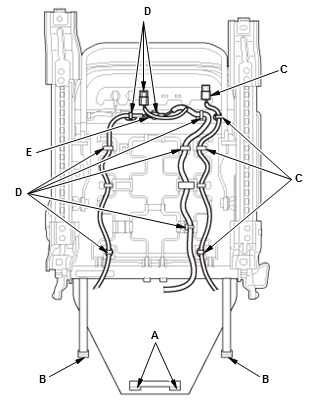

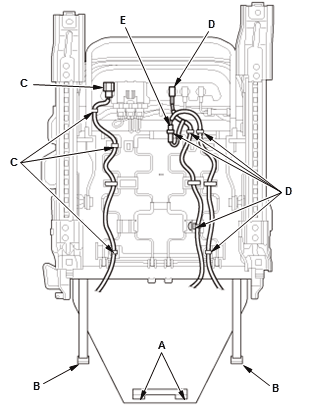

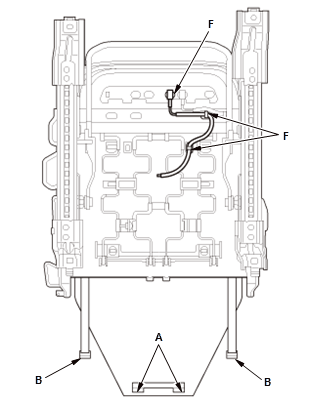

  1. Release the hook (A)
  2. Release the hooks (B)
  3. Detach the harness clips (C). (with side airbag)
  4. Detach the harness clips (D), then disconnect the connector (E). (with seat heater)
  5. Detach the harness clips (F). (with passenger's seat sitting switch)

Seats - Service Information

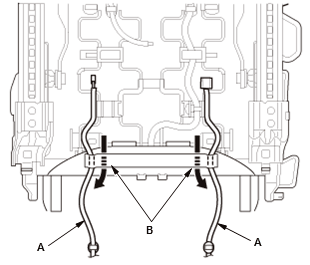

  1. Pull out the harness (A) from the seat-cushion cover holes (B).

    (for some models)

Seats - Service Information

  1. Pull out the harness cover (A) and harness (B) from the seat-back cover hole (C).

    (with side airbag)

  2. Pull out the harness cover and harness (D) from the seat-back cover hole. (with seat heater)

Seats - Service Information

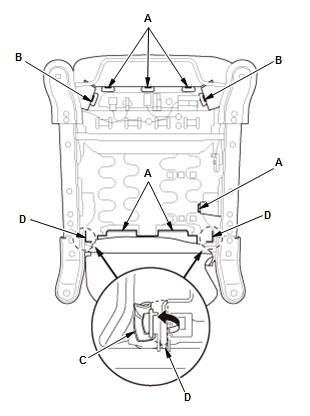

  1. Release the hooks (A)
  2. Release the hooks (B). (for some models)
  3. Release the front seat cushion cover (C) from the seat cushion frame hooks (D).

Seats - Service Information

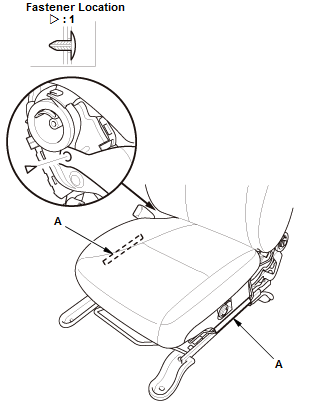

  1. Remove the clip and the hooks (A).

Seats - Service Information

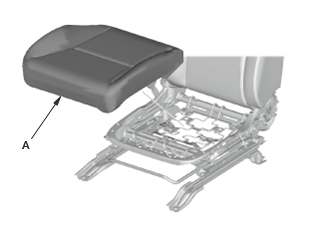

  1. Remove the front seat cushion cover/pad (A).

Seats - Service Information

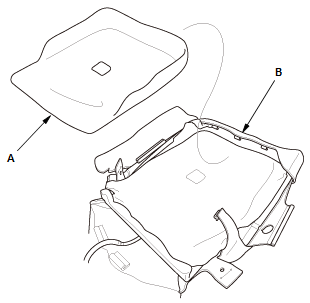

  1. Remove the front seat cushion silencer (A) from the seat-back cover/pad (B).

TYPE 1

Seats - Service Information

TYPE 2

Seats - Service Information

  1. Remove the upholstery rings (A), then remove the front seat cushion cover (B).

4. All Removed Parts - Install

Seats - Service Information

  1. Install the parts in the reverse order of removal.

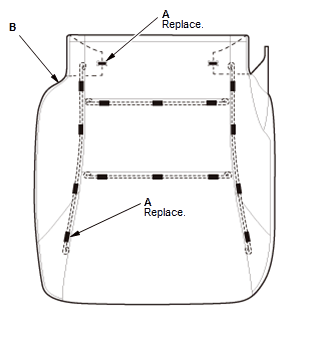

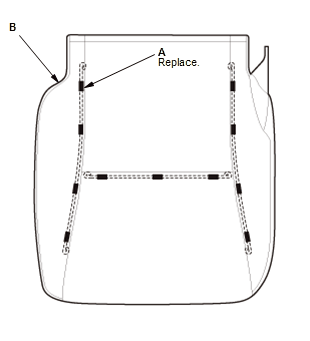

    NOTE : Replace all of the upholstery rings (A) fastening the front seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
