Honda HR-V: Fuel Fill Door Opener Removal and Installation
Removal & Installation
1. Driver's Kick Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)
2. Fuel Fill Door Opener - Remove
.png)
- Remove the fuel fill door opener (A).
.png)

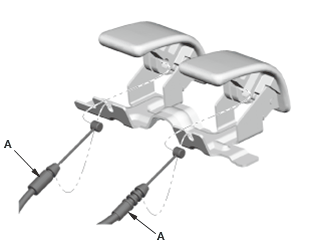

- Disconnect the opener cables (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
NOTE : Attach at the original position in the outer end of the cable on the fuel fill door opener securely. And check the fuel fill door latch operation: Make sure the fuel fill door latch unlocks when pulling the fuel fill door opener. If necessary, adjust the position of the cable end.
HEATED WINDSHIELD WIPER AREA SWITCH REMOVAL AND INSTALLATION
Removal & Installation
1. Driver's Outer Dashboard Lower Cover - Remove
2. Heated Windshield Wiper Area Switch - Remove
.png)

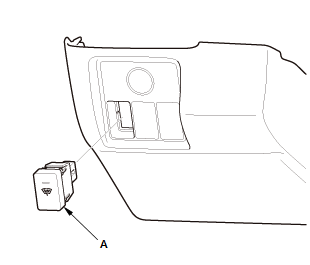

NOTE : Mounting position of the heated windshield wiper area switch (A) is changed depending on the model.
3. All Parts Removed - Install
- Install the parts in the reverse order of removal.
