Honda HR-V: Brake Booster Removal and Installation
Removal & Installation
1. Air Cleaner - Remove
2. Master Cylinder - Remove
3. Brake Line - Remove
.png)

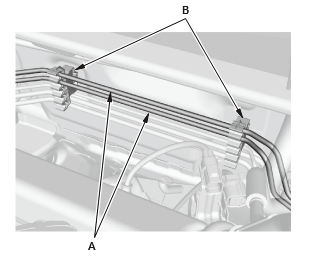

- Remove the brake lines (A) from the brake line clamp
(B).
.png)

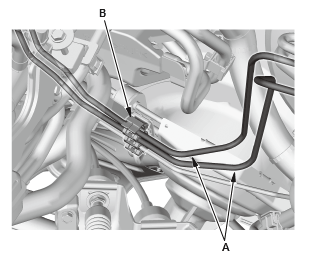

- Remove the brake lines (A) from the brake line clamps
(B).
4. Harness Brackets - Remove (With 1.8L Engine)
.png)

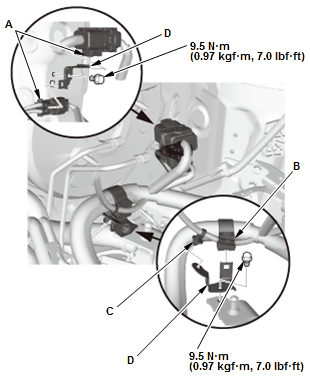

- Remove the connector clamps (A)
- Remove the harness clamp (B) and the clip (C)
- Remove the harness brackets (D).
5. Brake Booster - Remove
.png)

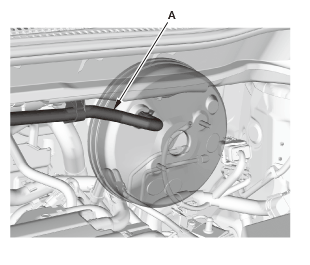

- Disconnect the brake booster vacuum hose (A) from the
brake booster.
.png)

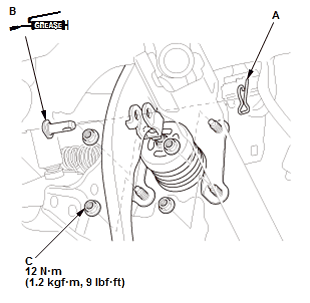

Fig. 1: Brake Booster Mounting Nuts Torque Specifications
- Remove the lock pin (A)
- Remove the yoke pin (B).
NOTE : During installation, apply multipurpose grease to the yoke pin in
the brake pedal
- Remove the brake booster mounting nuts (C).
.png)

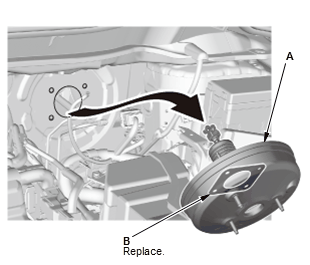

- Remove the brake booster (A) from the engine compartment.
NOTE:
- Be careful not to damage the brake booster surfaces and threads of
the brake booster stud bolts.
- Be careful not to bend or damage the brake lines or other
components hoses and lines.
- Remove the brake booster gasket (B).
NOTE: Use the new brake
booster gasket during reassembly.
6. All Removed Parts - Install
- Install the brake booster in the reverse order of removal.
7. Brake System - Bleed
8. Brake Pedal Height and Free Play - Check

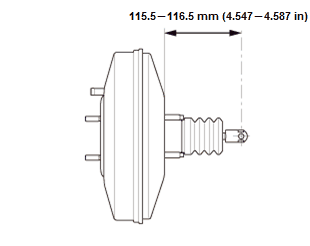

9. Brake Booster Pushrod Length (Reference)
.png)
