Honda HR-V: Fuse Relay Box Connector Locations

FUSE/RELAY BOX CONNECTOR LOCATIONS

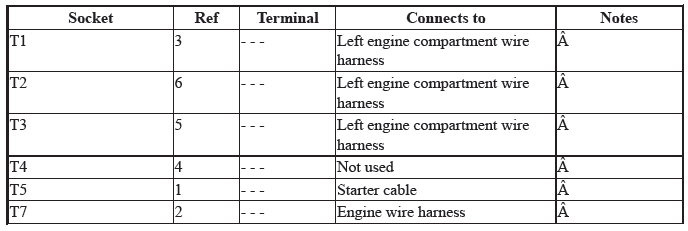

12 Volt Battery Terminal Fuse Box

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

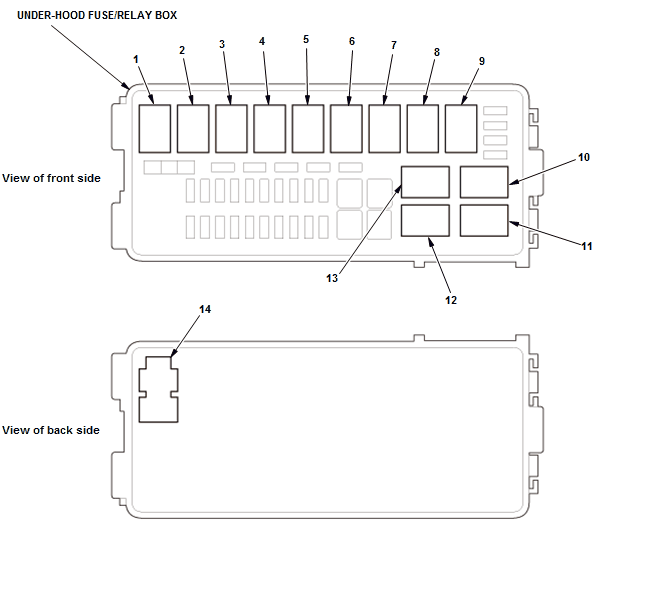

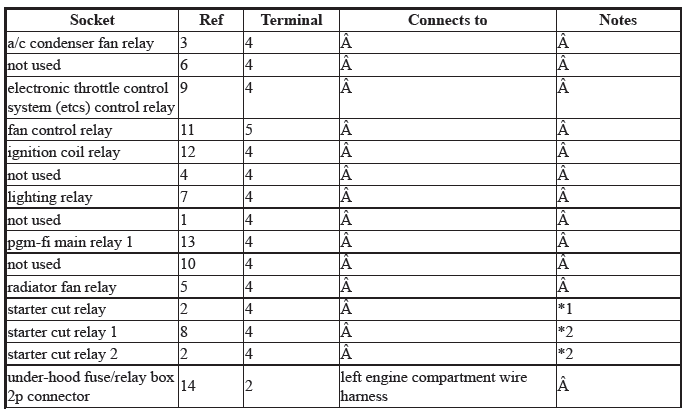

Under-Hood Fuse/Relay Box

Electrical System - Testing & Troubleshooting

*1: Without keyless access system
*2: With keyless access system

Electrical System - Testing & Troubleshooting

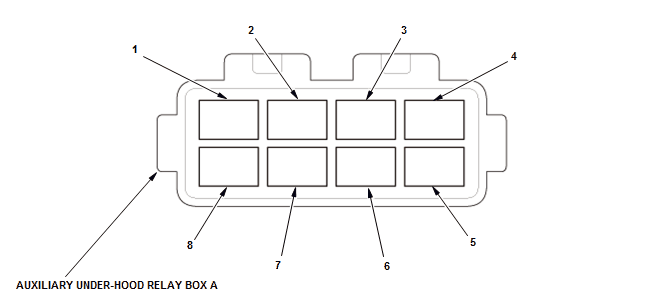

Auxiliary Under-Hood Relay Box A

Electrical System - Testing & Troubleshooting

*: With keyless access system

Electrical System - Testing & Troubleshooting

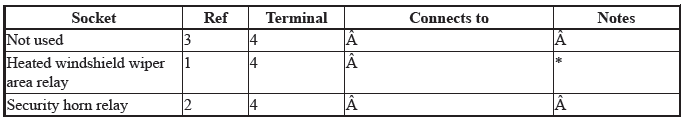

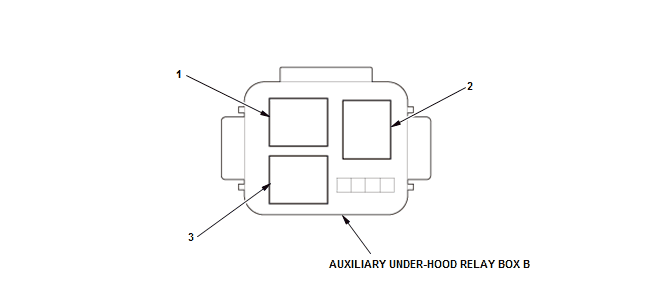

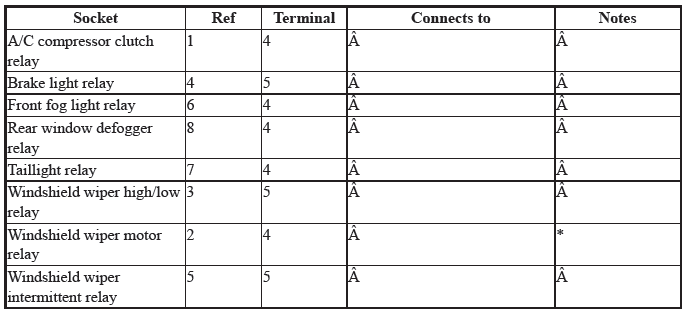

Auxiliary Under-Hood Relay Box B

Electrical System - Testing & Troubleshooting

*: With heated windshield wiper area

Electrical System - Testing & Troubleshooting

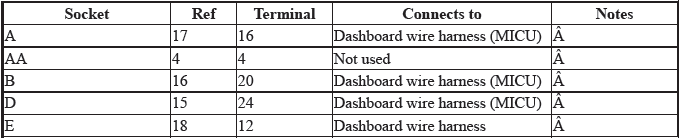

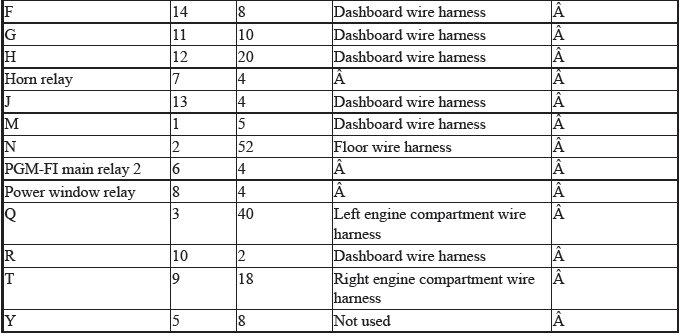

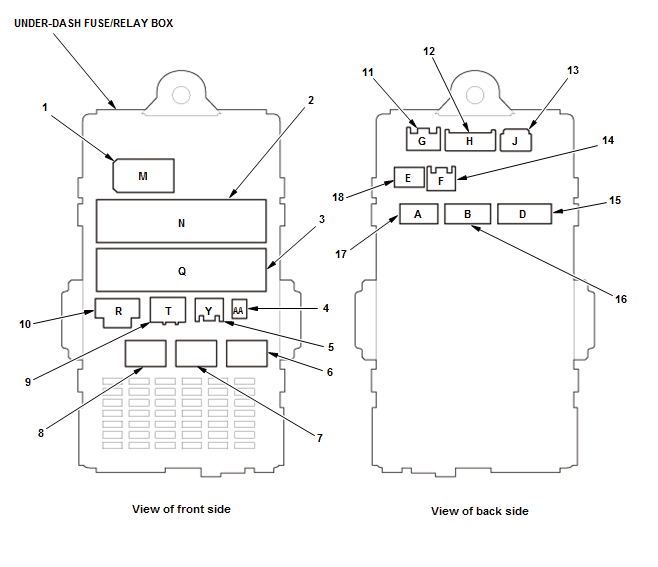

Under-Dash Fuse/Relay Box

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

Auxiliary Under-Dash Relay Holder A (With keyless access system)

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

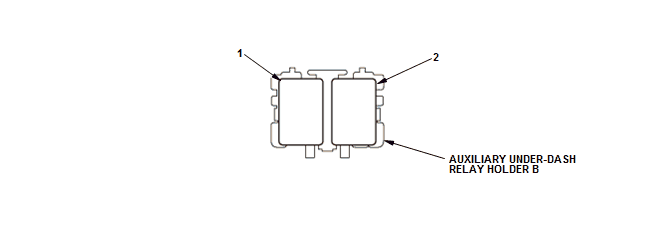

Auxiliary Under-Dash Relay Holder B

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

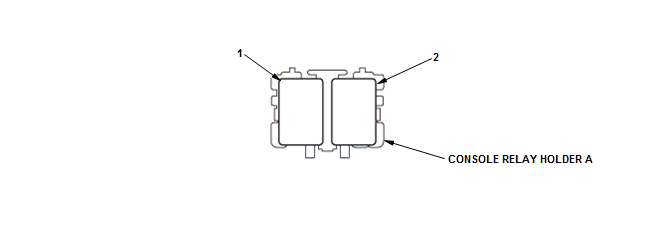

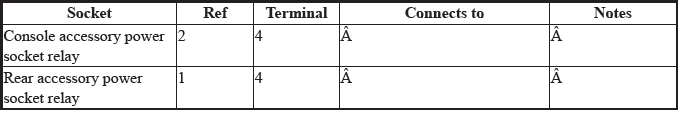

Console Relay Holder A

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

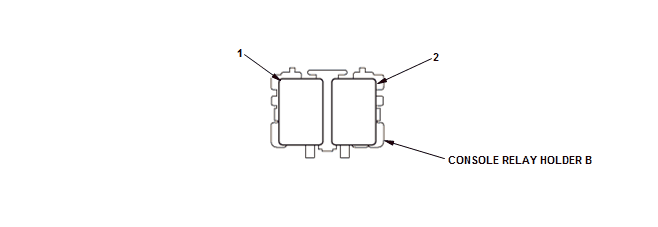

Console Relay Holder B

Electrical System - Testing & Troubleshooting

*1: AWD
*2: With seat heater

Electrical System - Testing & Troubleshooting
