Honda HR-V: Testing

12 VOLT BATTERY TEST

*Available through the Honda Tool and Equipment Program 888-424-6857

Special Tools Required

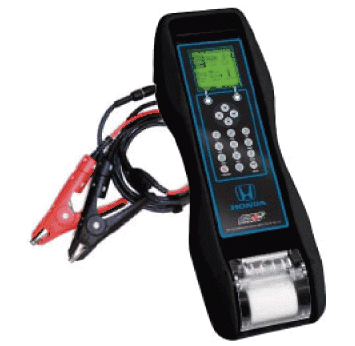

Honda ED-18 Battery Tester (12 Volt) INBED18V3H

Electrical System - Testing & Troubleshooting

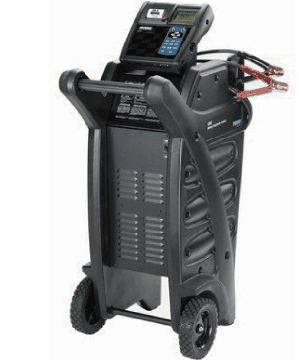

Honda GR8 Battery Diagnostic Station (12 Volt) MTRGR81100P

Electrical System - Testing & Troubleshooting

*Available through the Honda Tool and Equipment Program 888-424-6857

Test

1. 12 Volt Battery - Test

WARNING

A 12 volt battery can explode if you do not follow the proper procedure, causing serious injury to anyone nearby.

Follow all procedures carefully and keep sparks and open flames away from the 12 volt battery.

Software Version

Make sure you have the latest software for the ED-18 and GR8.

To check the software version on the ED-18, do this:

  • Press the POWER button.
  • Read the version number on the screen. It should appear for about 3 seconds.
  • Or you can select: Language> Options> Info> Version. The version number will appear near the top of the screen.

Write down the version number, then call Midtronics at 800-776-1995 to verify you have the latest software version or check the official Honda website for the latest updates.

To check the software version on the GR8, do this:

  • Press the POWER button.
  • Read the version number on the screen. It should appear for about 5 seconds.
  • Or from the Main Menu, select: Options> Info> I Version. The version number will appear on the screen.

Write down the version number, then call Midtronics at 800-776-1995 to verify you have the latest software version, or check the official Honda website for the latest updates.

Using the ED-18 Battery Tester (12 Volt)

NOTE: For setup, customization, and other available features, refer to the ED-18 user's manual.

1. Connect the leads to the positive and negative terminals

2. Use the arrow keys to select the Battery test and press ENTER and follow the prompts.

NOTE :

  • Make sure to enter the correct cold cranking ampere (CCA) rating of the 12 volt battery. You can find the CCA printed on the label on the top of the 12 volt battery. If the CCA rating is not entered correctly, the test result will not be accurate.
  • Make sure to select FLOODED for the 12 volt battery type.

3. Here are the four possible 12 volt battery conditions:

  • GOOD BATTERY: The 12 volt battery has at least 60 percent of its charge and required no action.
  • GR8 DIAGNOSTIC NEEDED: The battery voltage is below 60 percent of its state-of-charge, and the condition of the 12 volt battery is unknown. Use the GR8 to charge the 12 volt battery and properly diagnose it.
  • REPLACE BATTERY: The 12 volt battery condition is poor. Replace it.
  • BAD CELL: There is an internal problem with the 12 volt battery. Replace it.

Using the GR8 Battery Diagnostic Station (12 Volt)

NOTE:

  • For setup, customization, and other available features, refer to the GR8 user's manual.
  • On the GR8, you can select two modes: DEALER INVENTORY or CUSTOMER VEHICLE:
    • DEALER INVENTORY: Use this mode for vehicles in dealer inventory. The GR8 charges the 12 volt battery to 80 % of its state-of-charge. If the 12 volt battery condition is OK, the GR8 states the 12 volt battery is GOOD. If you leave the GR8 attached to the 12 volt battery, it changes to Top Off mode, and continues to charge the 12 volt battery until it is at 100 % of its state-of-charge.
    • CUSTOMER VEHICLE: In order to give a waiting customer quicker service, the GR8 charges the 12 volt battery to 60 % of its state-of-charge. If the 12 volt battery condition is OK, the GR8 states the 12 volt battery is GOOD. If you leave the GR8 attached to the 12 volt battery, it will enter Top Off mode, and continues to charge the 12 volt battery until it is at 100 % of its state-of-charge.

1. Connect the leads to the positive and negative terminal of the 12 volt battery

2. Use the arrow keys to select Diagnostic, and follow the prompts.

NOTE :

  • Make sure to enter the correct cold cranking ampere (CCA) rating of the 12 volt battery. You can find the CCA printed on the label on the top of the 12 volt battery. If the CCA rating is not entered correctly, the test result will not be accurate.
  • Make sure to select FLOODED for the 12 volt battery type.

3. Here are the three possible 12 volt battery conditions:

  • GOOD BATTERY: The 12 volt battery state of health is good and state of charge is at least 60 %.
  • REPLACE BATTERY: The 12 volt battery condition is poor. Replace it.
  • BAD CELL: There is a problem with the 12 volt battery. Replace it.

IGNITION SWITCH TEST

Test

NOTE: SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

2. Column Cover - Remove

3. Ignition Switch - Test

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

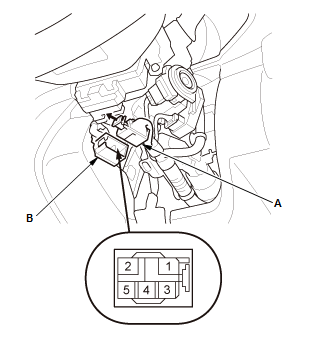

  1. Disconnect the connector (A).

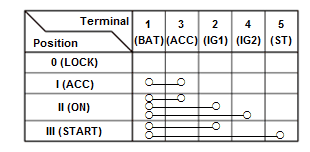

  2. Check for continuity between the terminals in each switch position according to the table.
  3. If the continuity is not as specified, replace the ignition switch (B).

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

KEY INTERLOCK SOLENOID TEST

Test

NOTE: SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (KA/KC), or SRS Component Location Index (KA/KC) and the precautions and procedures before doing repairs or service.

1. Column Cover - Remove

2. Key Interlock Solenoid - Test

Electrical System - Testing & Troubleshooting

  1. Turn the ignition switch to LOCK (0).
  2. Disconnect the connector (A).
  3. Turn the ignition key to ACCESSORY (I).
  4. Connect 12 volt battery power to steering lock connector terminal No. 1, and ground to steering lock connector terminal No. 4. Check that the ignition key cannot be turned to LOCK (0). Disconnect 12 volt battery power and check that the key can be turned to the LOCK (0) position and removed from the cylinder.
  5. If the key interlock solenoid does not work properly, the key interlock solenoid is faulty; replace the steering lock (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

PARK PIN SWITCH TEST

Test

1. Center Console - Remove

2. Park Pin Switch - Test

Electrical System - Testing & Troubleshooting

  1. Disconnect the connector (A)
  2. Check for continuity between the terminals No. 1 and No. 2.
    • There should be no continuity when the shift lever is moved to P and the shift lever button is released.
    • There should be continuity when the shift lever button pressed to the shift lever is moved out of P.
  3. If the continuity is not as specified, check the shift cable adjustment. If the cable adjustment is OK, replace the park pin switch (B).

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
