Honda HR-V: Ground to Components Index

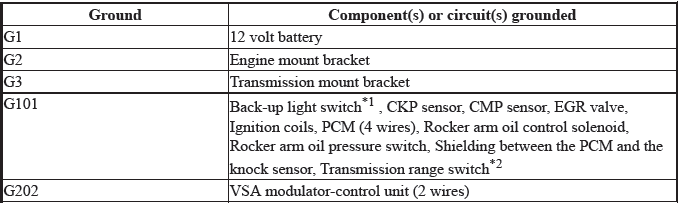

GROUND TO COMPONENTS INDEX

Electrical System - Testing & Troubleshooting

Electrical System - Testing & Troubleshooting

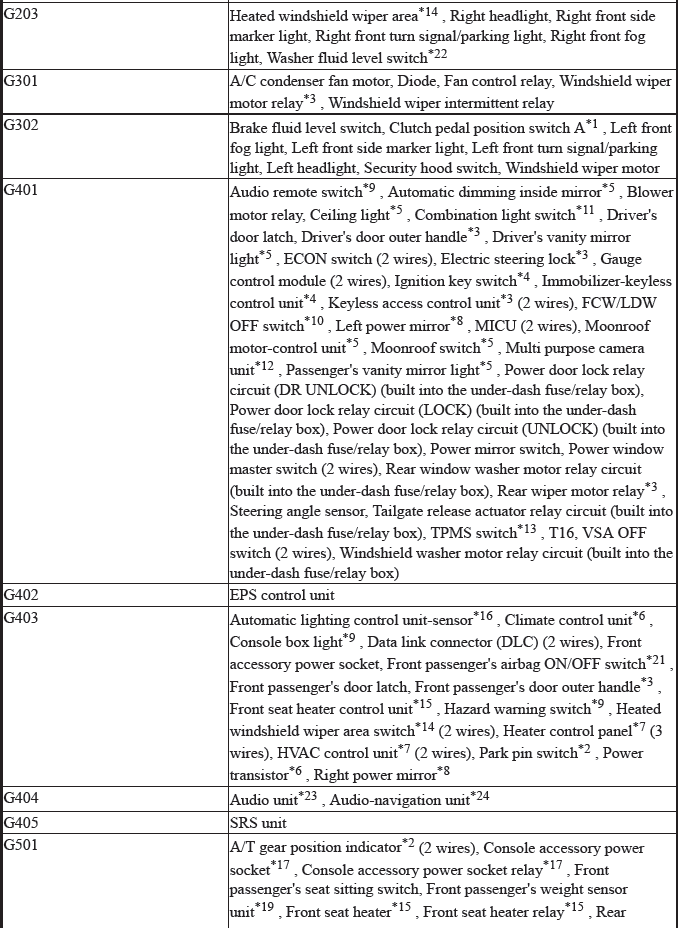

Electrical System - Testing & Troubleshooting

*1: M/T*5: With moonroof
*2: CVT
*3: With keyless access system
*4: Without keyless access system
*6: With climate control
*7: Without climate control
*8: With power mirror defogger
*9: Without dashlights brightness control
*10: With forward collision warning or lane depature warning
*11: With lane watch
*12: With lane departure warning
*13: With TPMS
*14: With heated windshield wiper area
*15: With seat heater
*16: With automatic lighting
*17: With console accessory power socket
*18: With rear accessory power socket
*19: USA and Canada models
*20: AWD
*21: With front passenger's airbag ON/OFF indicator
*22: Canada model
*23: Without navigation
*24: With navigation

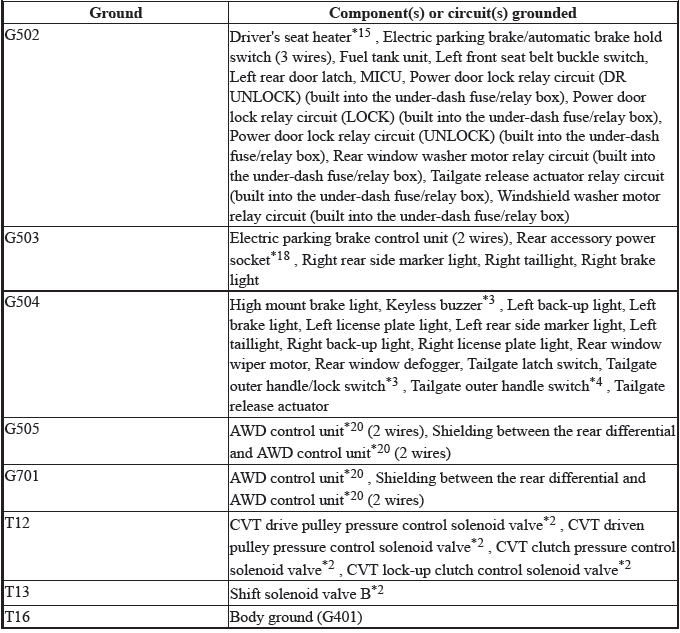

Electrical System - Testing & Troubleshooting

*1: M/T*5: With moonroof
*2: CVT
*3: With keyless access system
*4: Without keyless access system
*6: With climate control
*7: Without climate control
*8: With power mirror defogger
*9: Without dashlights brightness control
*10: With forward collision warning or lane depature warning
*11: With lane watch
*12: With lane departure warning
*13: With TPMS
*14: With heated windshield wiper area
*15: With seat heater
*16: With automatic lighting
*17: With console accessory power socket
*18: With rear accessory power socket
*19: USA and Canada models
*20: AWD
*21: With front passenger's airbag ON/OFF indicator
*22: Canada model
*23: Without navigation
*24: With navigation

RELAY AND CONTROL UNIT LOCATIONS

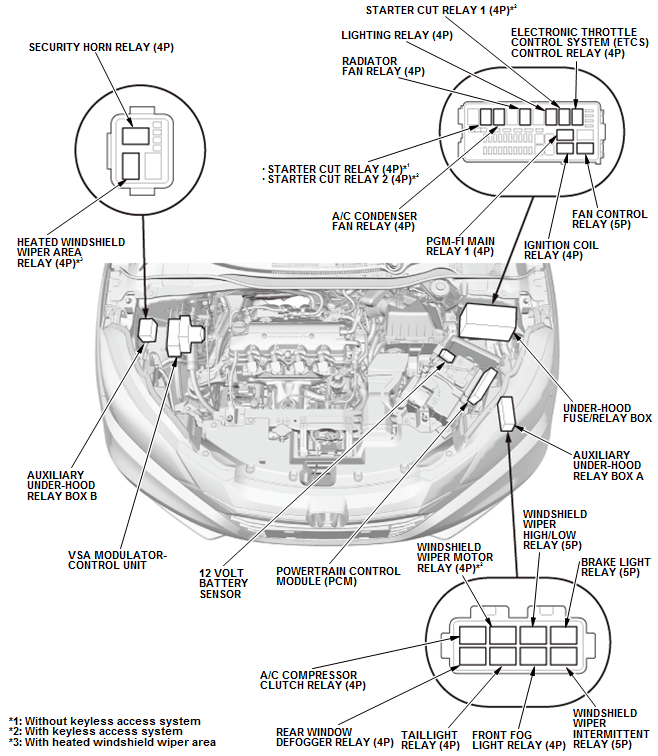

Engine Compartment

Electrical System - Testing & Troubleshooting

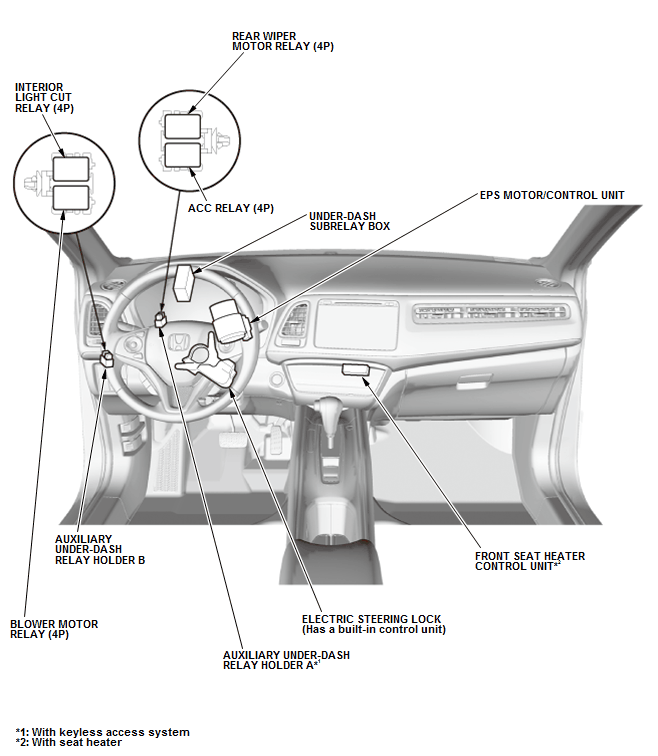

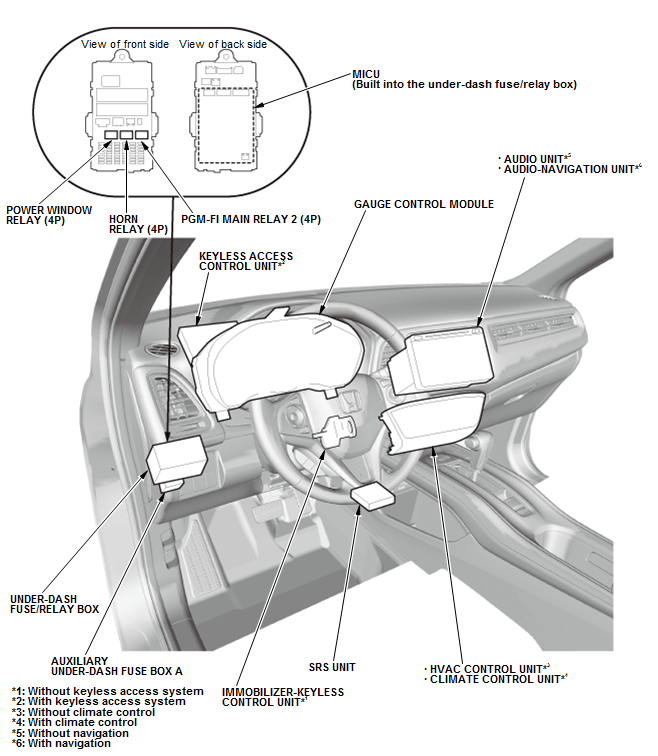

Dashboard (1/2)

Electrical System - Testing & Troubleshooting

Dashboard (2/2)

Electrical System - Testing & Troubleshooting

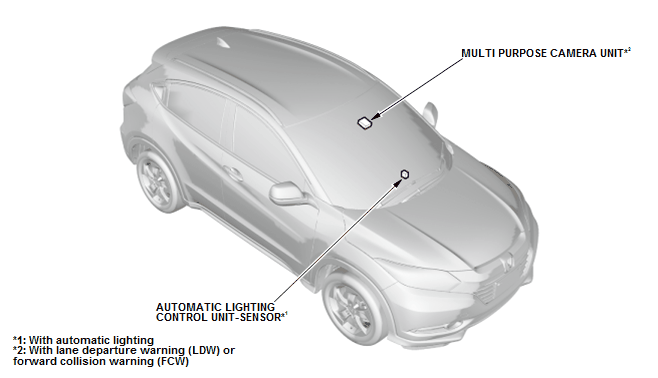

Roof (1/2)

Electrical System - Testing & Troubleshooting

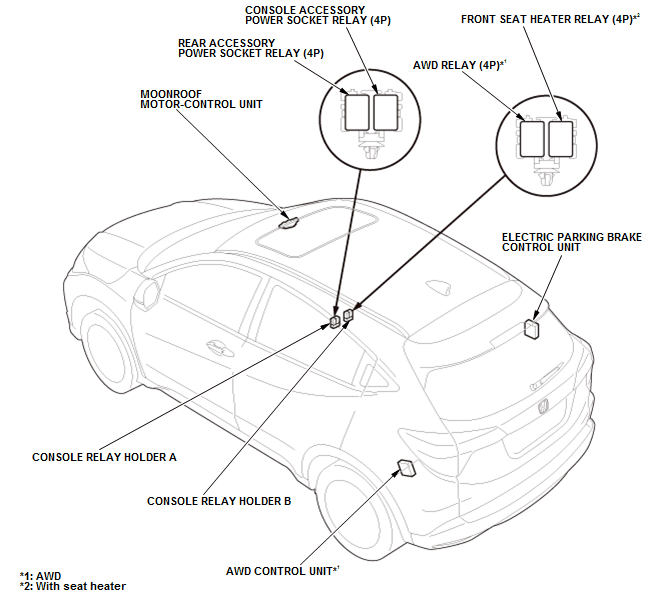

Roof (2/2)

Electrical System - Testing & Troubleshooting

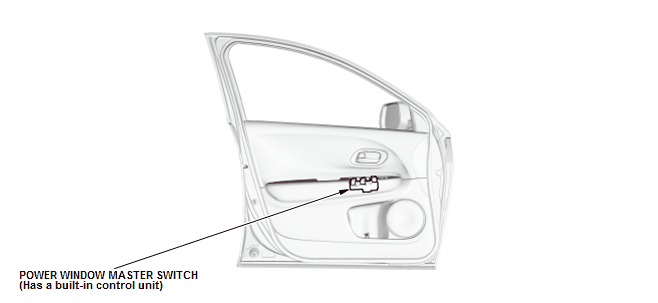

Door

Electrical System - Testing & Troubleshooting
