Honda HR-V: General Information
Honda HR-V (2015-2021) Service Manual / Engine / Engine Control System & Engine Mechanical - Testing & Troubleshooting / General Information
ENGINE CONFIGURATION
.png)
.png)

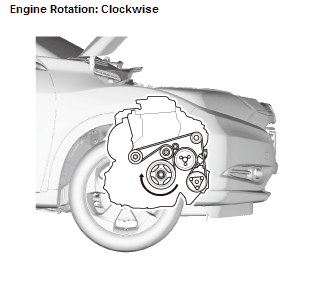

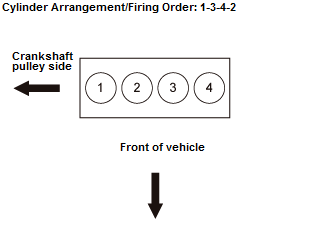

Fig. 2: Engine Configuration With Drive Belt Routing And Egine Rotation
CHECK
THROTTLE BODY CARBON ACCUMULATION CHECK
Test
1. HDS - Connect
2. Throttle Body - Test
- Start the engine. Hold the engine speed at 3, 000 rpm without load (CVT in P or N, M/T in neutral) until the radiator fan comes on, then let it idle.
- Check the REL TP SENSOR in the DATA LIST with the HDS. The reading should be below 2.46 deg. If it is not, clean the throttle body.
