Honda HR-V: Headlight Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Lighting - Service Information / Headlight Removal and Installation

Removal & Installation

1. Front Bumper - Remove

2. Headlight - Remove

Exterior Lighting - Service Information

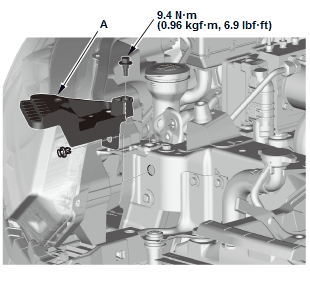

  1. Remove the front grille side upper beam (A).

Exterior Lighting - Service Information

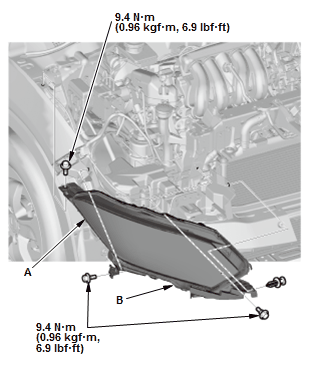

  1. Remove the headlight (A) with the corner upper beam (B) as an assembly.

Exterior Lighting - Service Information

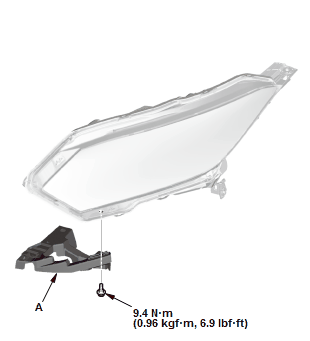

  1. Remove the corner upper beam (A).

3. Connectors - Remove

Exterior Lighting - Service Information

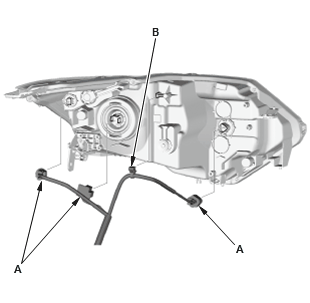

  1. Disconnect the connectors (A)
  2. Remove the harness clips (B)

4. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

5. Headlight - Adjust

HIGH MOUNT BRAKE LIGHT REMOVAL AND INSTALLATION

Removal & Installation

1. Tailgate Spoiler Trim - Remove

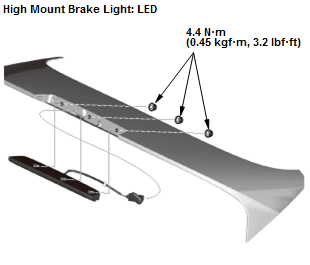

2. High Mount Brake Light - Remove

Exterior Lighting - Service Information

3. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
