Honda HR-V: Inner Taillight Removal and Installation

Honda HR-V (2015-2021) Service Manual / Accessories & Equipment / Exterior Lighting - Service Information / Inner Taillight Removal and Installation

Removal & Installation

1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

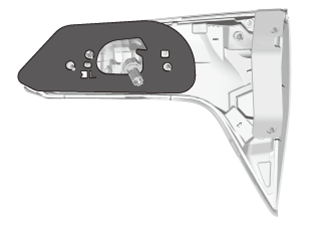

2. Inner Taillight - Remove

Exterior Lighting - Service Information

  1. Disconnect the connector(s)

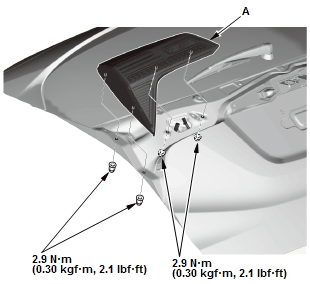

  2. Remove the inner taillight (A).

3. All Removed Parts - Install

Exterior Lighting - Service Information

  1. Install the parts in the reverse order of removal.

    NOTE : Inspect the gasket; replace it if it is distorted or stays compressed.

LICENSE PLATE LIGHT REMOVAL AND INSTALLATION

Removal & Installation

1. License Plate Light - Remove

Exterior Lighting - Service Information

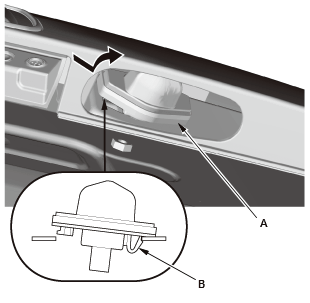

  1. Push the license plate light assembly (A) to the side to release the retaining spring (B), and pull out the license plate light assembly.

Exterior Lighting - Service Information

  1. Disconnect the connector (A)

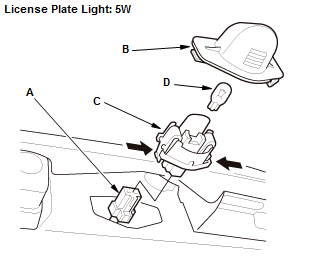

  2. Separate the lens (B) from the housing (C)
  3. Remove the bulb (D) from the housing.

2. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
