Honda HR-V: Inputs and Outputs
ELECTRIC PARKING BRAKE CONTROL UNIT CONNECTOR FOR INPUTS AND OUTPUTS

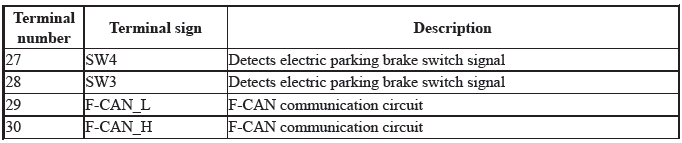

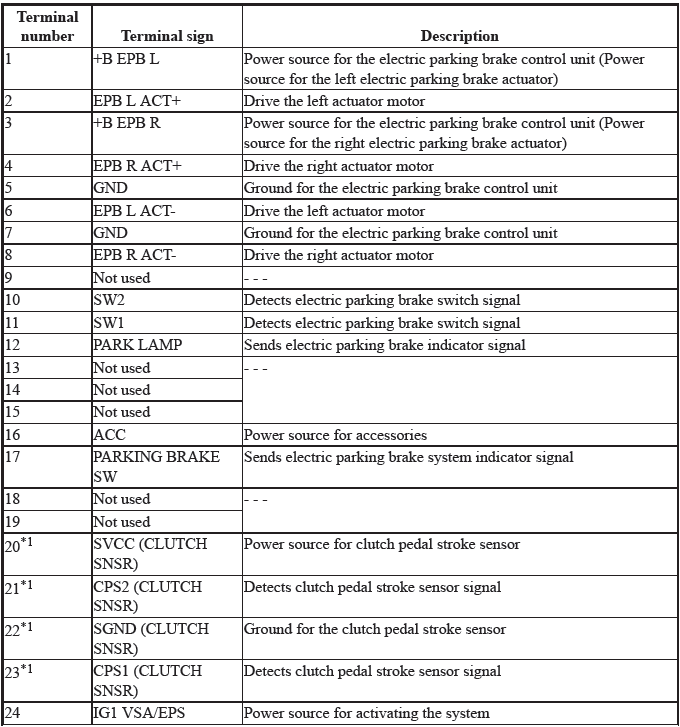

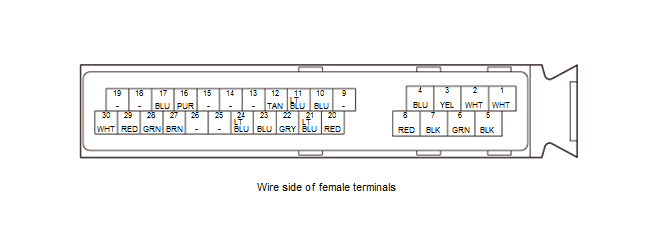

Electric Parking Brake Control Unit Inputs and Outputs for 30P Connector
(Connector Disconnected)
.png)
.png)
.png)
*1: M/T
.png)
*1: M/T
ELECTRIC PARKING BRAKE ELECTRONIC WIRING DIAGRAM
Refer to appropriate wiring diagram: System Wiring Diagrams
ELECTRIC PARKING BRAKE FORCED CANCELLATION
Procedure
NOTE:
- Forced cancellation is performed when the system is abnormal and the
parking brake cannot be released.
- Unless otherwise indicated, illustrations used in the procedure are for
2WD model.
1. Vehicle - Lift
2. Rear Wheel - Remove
3. Electric Parking Brake Actuator - Remove
4. Parking Brake - Forced Cancel
.png)

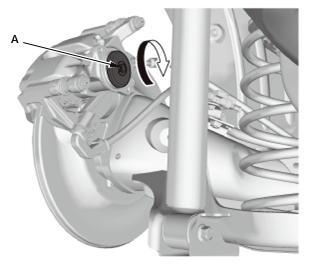

- Using a T45 Torx driver, turn the worm shaft (A) 360º clockwise
- Make sure the parking brake is released. If not released, turn the
worm shaft 360º clockwise again.
LONGITUDINAL ACCELERATION SENSOR NEUTRAL POSITION MEMORIZATION
Procedure
1. HDS - Connect
- Turn the vehicle to the OFF (LOCK) mode.
- Connect the HDS to the DLC.
- Turn the vehicle to the ON mode.
- Make sure the HDS communicates with the vehicle. If it does not
communicate, go to the DLC
circuit troubleshooting.
2. Longitudinal Acceleration Sensor Neutral Position - Memorize
- Park the vehicle on a flat and level surface, with the steering wheel in
the straight ahead position
- Select the ELECTRIC PARKING BRAKE from the BRAKE SYSTEM menu with the
HDS, then
enter the SENSOR CALIBRATION from the ADJUSTMENT, and follow the screen
prompts.
NOTE
: See the HDS Help menu for specific instructions.
COMPONENT LOCATION INDEX

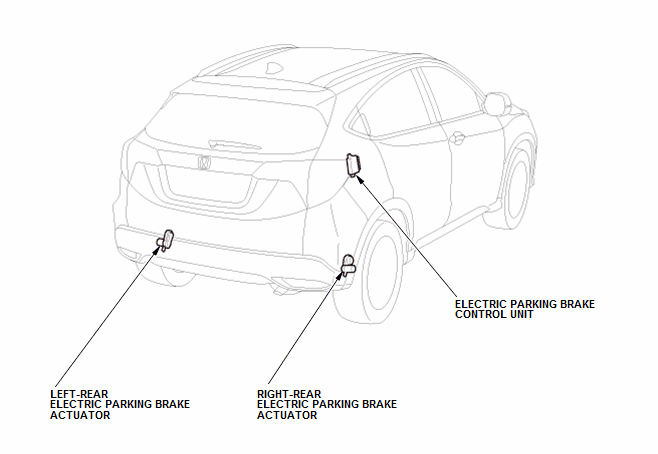

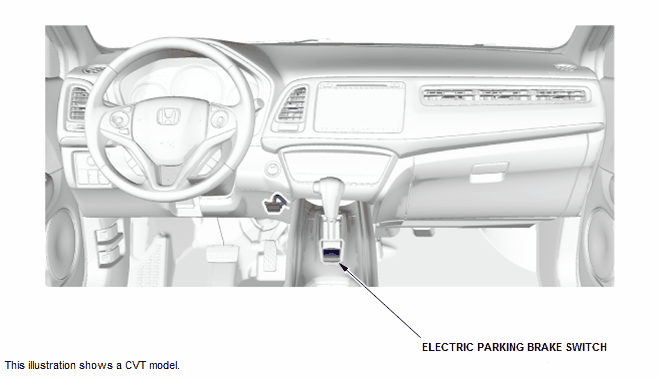

ELECTRIC PARKING BRAKE COMPONENT LOCATION INDEX
.png)
.png)
