Honda HR-V (2015-2021) Owner's Manual / Quick Reference Guide / Instrument Panel

Gauges/Information Display/System Indicators

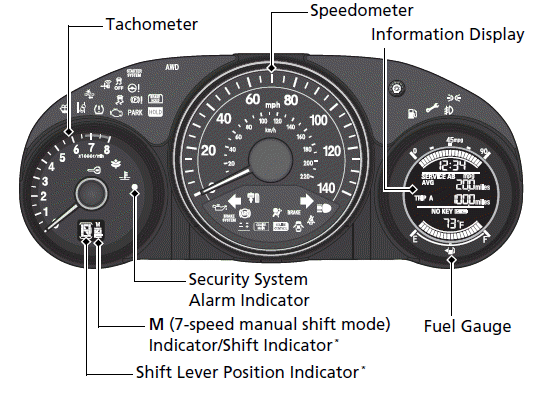

Instrument Panel


  • Tachometer
  • Speedometer
  • Information Display
  • Fuel Gauge
  • Security System
    Alarm Indicator
  • M (7-speed manual shift mode) Indicator/Shift Indicator
  • Shift Lever Position Indicator

Lights Indicators

Fog Light Indicator


High Beam Indicator


Lights On Indicator


System Indicators

Malfunction Indicator
Lamp

Charging System
Indicator

Low Oil Pressure
Indicator

High Temperature
Indicator (Red)

Low Temperature
Indicator (Blue)

Vehicle Stability Assist (VSA)
System Indicator

  VSA OFF Indicator


Electric Power Steering
(EPS) System Indicator

Automatic Brake Hold
System Indicator

Automatic Brake Hold
Indicator

Electric Parking Brake
System Indicator

Electric Parking Brake
Indicator

System Indicators

Maintenance Minder
Indicator

Turn Signal and
Hazard Warning Indicators

ECON Mode
Indicator

Forward Collision
Warning (FCW) Indicator

Lane Departure
Warning (LDW) Indicator

System Indicators

CRUISE MAIN Indicator


CRUISE CONTROL
Indicator

U.S. models only


Low Tire Pressure/TPMS Indicator

All-Wheel Drive (AWD)
System Indicator

System Indicators

Smart Entry System
Indicator*

Starter System
Indicator

Supplemental Restraint
System Indicator

Immobilizer System
Indicator

Seat Belt Reminder
Indicator

Door and Tailgate
Open Indicator

Washer Level Indicator


Anti-lock Brake System (ABS)
Indicator

Brake System Indicator
(Red)

Brake System Indicator
(Amber)

Low Fuel Indicator


Continuously variable
transmission models

Brake Depressing Indicator

Manual transmission models


Brake Depressing Indicator
