Honda HR-V: Rear Door Glass Outer Weatherstrip Removal and Installation
Removal & Installation
1. Rear Door Panel - Remove
2. Rear Door Outer Handle - Remove
3. Rear Door Plastic Cover - Remove
.png)

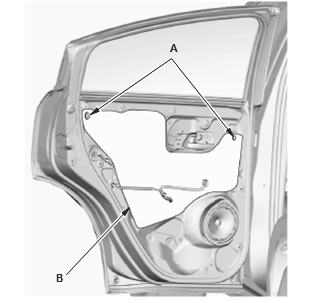

- Remove the plug caps (A)
- Remove the rear door plastic cover (B) as needed.
NOTE : If the plastic
cover is damaged or torn, replace it with a new one.
4. Rear Door Glass Outer Weatherstrip - Remove
.png)

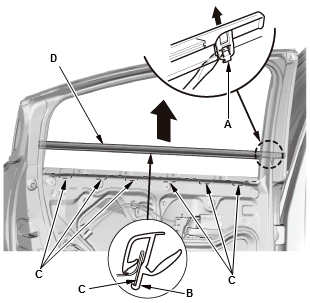

- Release the hook (A) with a flat-tip screwdriver from inside
of the door
- Release the hooks (B) from the flanges (C) on the door
- Remove the front door glass outer weatherstrip (D).
5. All Removed Parts - Install
- Install the parts in the reverse order of removal.
REAR DOOR GLASS REMOVAL AND INSTALLATION
Removal & Installation
1. Rear Door Panel - Remove
2. Rear Door Plastic Cover - Remove
.png)

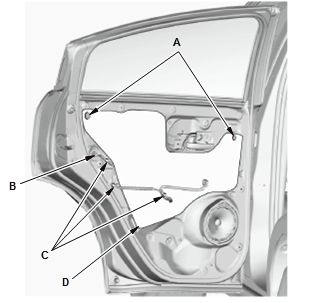

- Remove the plug caps (A)
- Disconnect the connector (B)
- Remove the harness clips (C)
- Remove the rear door plastic cover (D) as needed.
NOTE : If the plastic
cover is damaged or torn, replace it with a new one.
3. Rear Door Glass - Remove
.png)

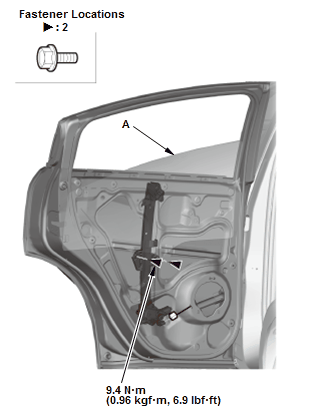

- Lower the rear door glass (A) until you can see the bolts, then
remove them
- Remove the bolts while holding the rear door glass.
.png)

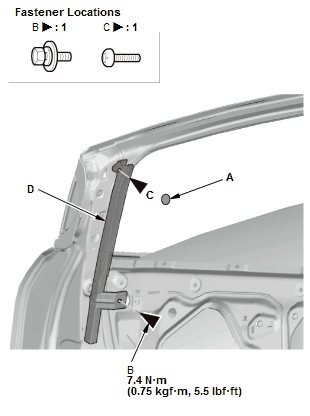

- Remove the maintenance hole seal (A)
- Remove the bolt (B) and the screw (C) from the rear lower
channel (D).
.png)

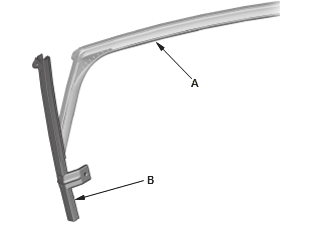

- Pull the glass run channel (A) away as needed
- Remove the rear lower channel (B) from the door (C) and rear
door glass (D)
- Pull the rear lower channel to outside of the rear door.
.png)
- Remove the glass run channel (A) from the rear lower
channel (B).
.png)

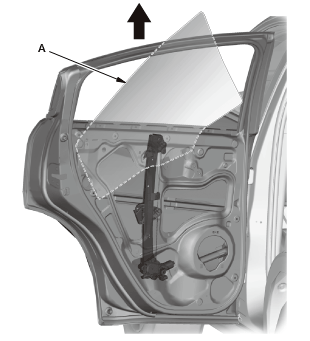

- Carefully remove the rear door glass (A) out through the window
slot.
NOTE : Take care not to drop the glass inside the door.
4. All Removed Parts - Install
- Install the parts in the reverse order of removal.
5. Rear Door Glass - Adjustment
READ NEXT:
Removal & Installation
1. Rear Door Panel - Remove
2. Rear Door Plastic Cover - Remove
Remove the plug cap (A)
Disconnect the connector (B)
Remove the rear door plastic cover (C) as needed.
Removal & Installation
1. Rear Door Lower Seal - Remove
2. All Removed Parts - Install
Install the parts in the reverse order of removal.
REAR DOOR OUTER HANDLE REMOVAL AND INSTALLATION
Remova
Removal & Installation
1. Rear Door Panel - Remove
Remove the cap (A) by tilting down the hook (B) with a flattip
screwdriver.
Remove the screws.
Open the cap (A), then remove the scre
