Removal & Installation

A-Pillar Trim

1. A-Pillar Trim - Remove

Interior Trim - Service Information

  1. Remove the front door opening seal (A) as needed

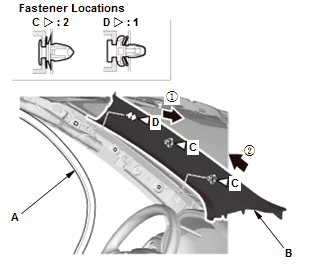

  2. Remove the A-pillar trim (B).

2. All Removed Parts - Install

  1. Install the parts reverse order of removal.

B-Pillar Upper/Lower Trim

3. Front Door Sill Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

4. Rear Door Sill Trim - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

5. Front Seat Belt Lower Anchor Bolt - Remove

6. B-Pillar Lower Trim - Remove

Interior Trim - Service Information

  1. Remove the door opening seal (A, B) as needed

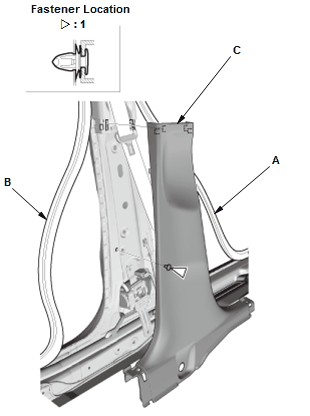

  2. Remove the B-pillar lower trim (C).

7. Front Seat Belt Upper Anchor Bolt - Remove

8. B-Pillar Upper Trim - Remove

Interior Trim - Service Information

  1. Remove the door opening seal (A, B) as needed

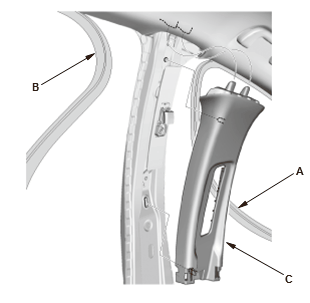

  2. Remove the B-pillar upper trim (C).

9. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.

Quarter Pillar Trim

10. Rear Side Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Door Areas, or Interior Trim Removal and Installation - Tailgate Areas, or Interior Trim Removal and Installation - Rear Side Area, or Interior Trim Removal and Installation - Cargo Areas, or Interior Trim Removal and Installation - Pillar Areas (With Side Curtain Airbag), or Interior Trim Removal and Installation - Pillar Areas (Without Side Curtain Airbag)

11. Rear Seat Belt Upper Anchor Bolt - Remove

12. Quarter Pillar Trim - Remove

Interior Trim - Service Information

  1. Remove the rear door opening seal (A) and tailgate weatherstrip (B) as needed

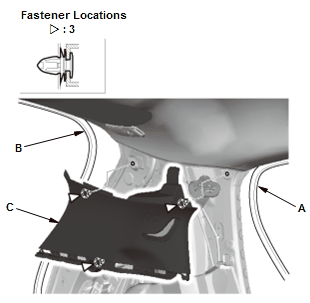

  2. Remove the quarter pillar trim (C).

13. All Removed Parts - Install

  1. Install the parts in the reverse order of removal.
